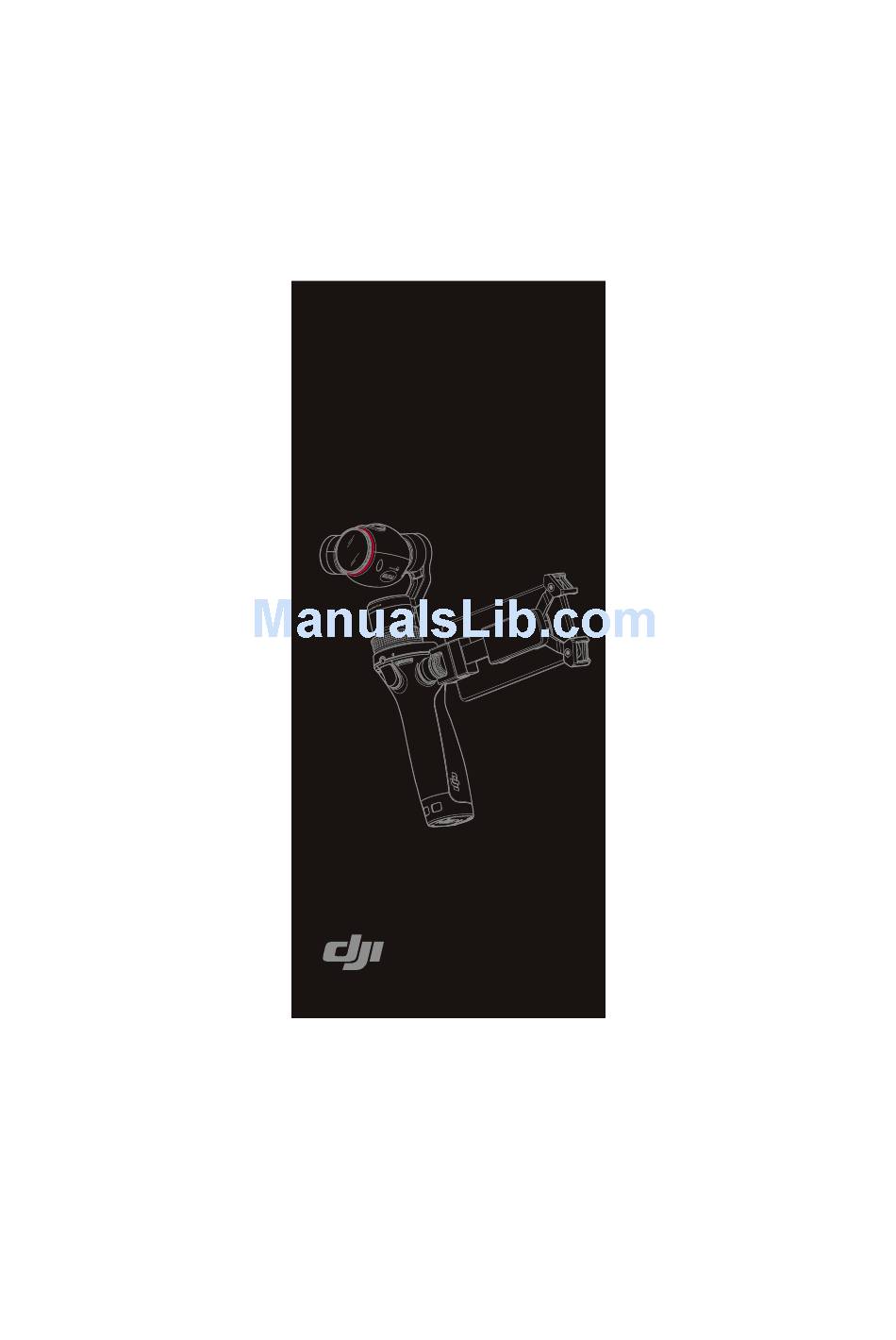

OSMO

Quick Start Guide

V1.0
Overview
The Osmo is a professional handheld gimbal that
combines mobility and stability in one device. Its
camera shoots sharp 12MP still photos and stable
video at up to 4K. Your mobile device can be mounted
on the side of the handle and display a live feed
through the high-speed WiFi video link.
14
13
12
1 1
10
9
1 Tilt Motor
10 Shutter Button
2 Micro USB Port
11 Joystick
3 Pan Motor
12 Camera Status LED
4 Pan Axis Lock
13 Roll Motor
5 Gimbal Lock
14 Camera
6 System Status LED
7 Power Switch
8 Record Button
9 Mobile Device Holder
1
2
3
4
5
23
6
22
7
2 1
8
20
19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji SMO

  • Page 1: Quick Start Guide

    OSMO Overview The Osmo is a professional handheld gimbal that combines mobility and stability in one device. Its Quick Start Guide camera shoots sharp 12MP still photos and stable video at up to 4K. Your mobile device can be mounted V1.0 on the side of the handle and display a live feed through the high-speed WiFi video link.
  • Page 2 OSMO Overview Spec The Osmo is a professional handheld gimbal that Handle ● combines mobility and stability in one device. Its Dimens Quick Start Guide camera shoots sharp 12MP still photos and stable video at up to 4K. Your mobile device can be mounted Weight V1.0 on the side of the handle and display a live feed...
  • Page 3: Specifications

    Overview Specifications The Osmo is a professional handheld gimbal that Handle Suppor ● combines mobility and stability in one device. Its Dimensions 2.4×1.9×6.4 inches camera shoots sharp 12MP still photos and stable ( 61.8×48.2×161.5 mm ) Operat video at up to 4K. Your mobile device can be mounted Weight ( including battery ) 201 g Audio O on the side of the handle and display a live feed...
  • Page 4: Optional Accessories

    60 Mbps FAT32 ( ≤ 32 GB ) ; exFAT ( > 32 GB ) Supported File Systems 22 External Microphone Input Visit the DJI Online Store for more information: JPEG, DNG ( RAW ) Photo Formats 23 Built-in Microphone MP4/MOV ( MPEG-4 AVC/H.264 )
  • Page 5 60 Mbps FAT32 ( ≤ 32 GB ) ; exFAT ( > 32 GB ) Supported File Systems Input Visit the DJI Online Store for more information: JPEG, DNG ( RAW ) Photo Formats MP4/MOV ( MPEG-4 AVC/H.264 ) http://store.dji.com...
  • Page 6: Prepare The Battery

    1. Install the DJI GO App 3. Mount your Mobile Device 4. Unlo Search for ‘DJI GO’ on the App Store or Google Play, and install the app on your mobile device. Unfold the arms 1. Ro 2. Ro Adjust the pads OSMO 3.
  • Page 7 1. Install the DJI GO App 3. Mount your Mobile Device 4. Unlock the Gimbal 6. Con Search for ‘DJI GO’ on the App Store or Google Play, and install the app on your mobile device. Unfold the arms 1. Rotate the tilt motor 2.
  • Page 8 Rotate the motors just enough to loosen them. Place the other end Trigger ● Hold down to enable Lock Mode. 5. Connect to the DJI GO App Tap twice to center the camera. Tap three times to enter Selfie tivate. Pull outwards Mode.
  • Page 9 Rotate the motors just enough to loosen them. er end Trigger ● Hold down to enable Lock Mode. 5. Connect to the DJI GO App Tap twice to center the camera. Tap three times to enter Selfie Mode. To Power On:...
  • Page 10 1. Install the DJI GO App 3. Mou Search for ‘DJI GO’ on the App Store or Google Play, and install the app on your mobile device. Adjus OSMO DJI GO supports iOS 8.0 (or later) Plac www.dji.com or Android 4.1.2 (or later).
