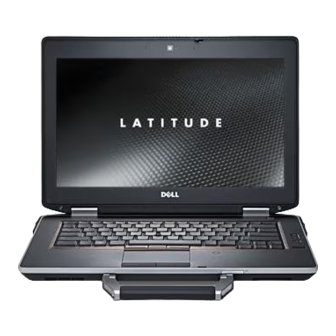

Dell Latitude E6320/E6420 ATG
Setup and Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front And Back View
Figure 1. Latitude E6320
1. microphone
2. camera
3. camera status light
4. display
5. power button
6. eSata/USB connector
7. USB 2.0 connector
8. volume control buttons
9. wireless switch
10. optical drive
11. PC card or Express card slot
12. fingerprint reader
Regulatory Model: P12S, P15G
Regulatory Type: P12S001, P15G002
February 2011
Advertisement
Related Manuals for Dell Latitude E6420 ATG
Summary of Contents for Dell Latitude E6420 ATG
- Page 1 Dell Latitude E6320/E6420 ATG Setup and Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Front And Back View Figure 1. Latitude E6320 1. microphone 7. USB 2.0 connector 2. camera 8. volume control buttons 3.
- Page 2 WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
-
Page 3: Front And Back View
Front And Back View Figure 2. Latitude E6420 ATG 1. microphone 13. optical drive 2. display release latch 14. PC card or Express card slot 3. camera 15. fingerprint reader 4. camera status light 16. Secure Digital (SD) memory-card 5. display latch reader 6. - Page 4 WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.
-
Page 5: Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/regulatory_compliance. WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage. - Page 6 1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet. Figure 3. AC Adapter 2. Connect the network cable (optional). Figure 4. Network Connector 3. Connect USB devices, such as a mouse or keyboard (optional). Figure 5.
-
Page 7: Specifications
Figure 7. Power Button NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards or connect the computer to a docking device or other external device, such as a printer. Specifications NOTE: Offerings may vary by region. - Page 8 Battery Latitide E6320 • 3-cell “smart” Lithium ion • 6-cell “smart” Lithium ion • 4-cell “smart” Lithium ion Latitude E6420 ATG • 6-cell “smart” Lithium ion • 9-cell “smart” Lithium ion Dimensions: 3-cell battery Latitide E6320 Depth 29.87 mm (1.18 inches) Height 19.80 mm (0.78 inch)
- Page 9 Battery 6-cell 335.90 g (0.74 lb) Latitude E6420 ATG 4-cell 240.00 g (0.53 lb) 6-cell 343.00 g (0.76 lb) 9-cell 510.00 g (1.12 lb) Voltage 3-cell, 6-cell, and 9-cell 11.10 VDC 4-cell 14.80 VDC Temperature range: Operating 0 °C to 35 °C (32 °F to 95 °F) Non-Operating –40 °C to 65 °C (–40 °F to 149 °F)
- Page 10 Physical E6320 Height 25.30 mm to 30.10 mm (0.10 inch to 1.19 inches) Width 323.00 mm (12.72 inches) Depth 215.00 mm (8.46 inches) Weight (with 4-cell battery) 1.67 kg (3.68 lb) E6420 ATG Height 33.80 mm to 39.10 mm (1.33 inches to 1.54 inches) Width 357.34 mm (14.07 inches)
