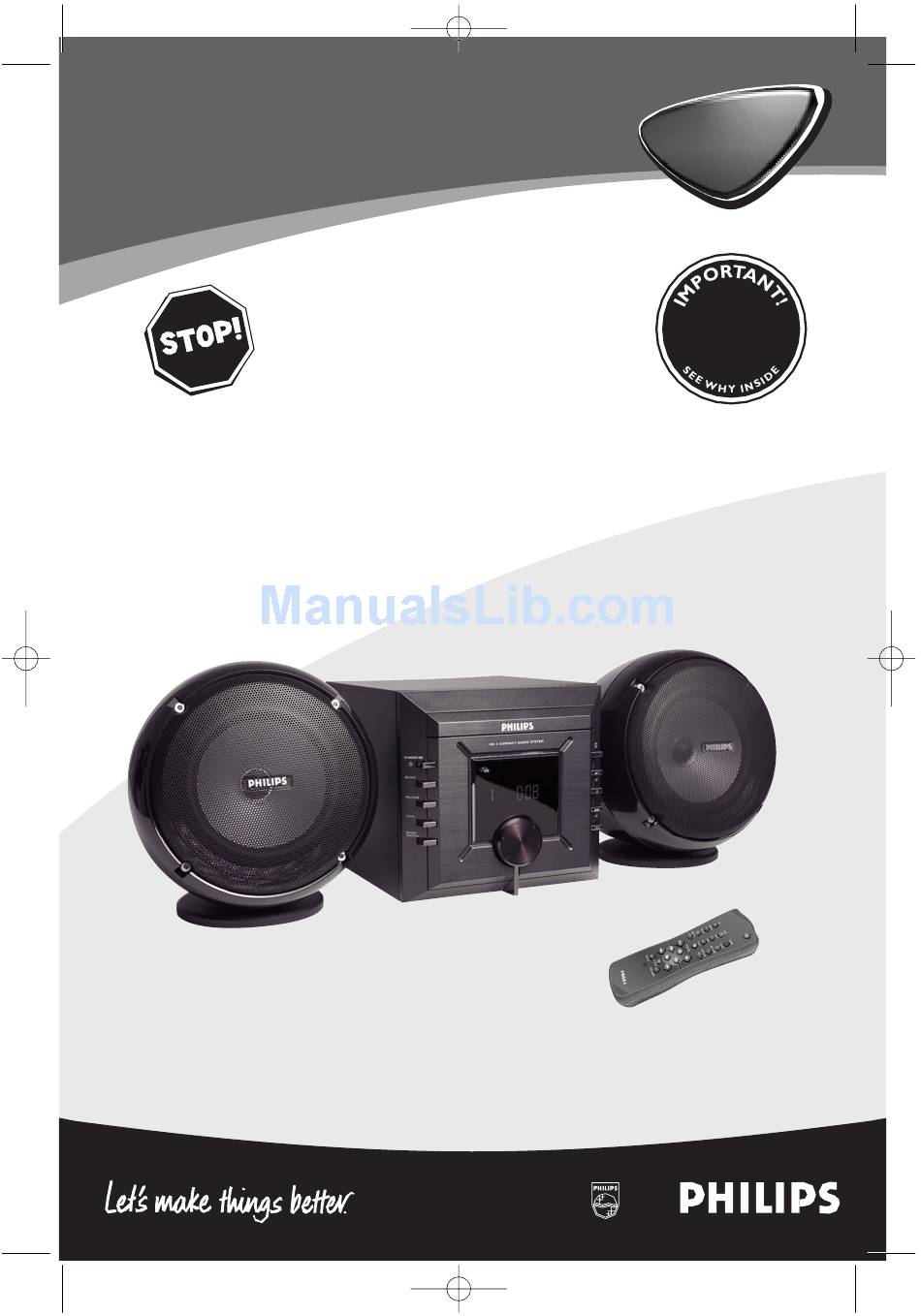

Page 1
• Hookups, • First Time Setup, and • Feature Operation. Do not attempt to return this product to the store. For fast help, call us first! 1-800-531-0039 Thank you for making Philips a part of your home!
XP MZ5/37 15-03-2002 11:23 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. • Once your Philips purchase is registered, you’re eligible to receive all the privileges of owning a Philips product. Warranty Verification...
XP MZ5/37 15-03-2002 11:23 AUX in speakers LEFT LEFT – RIGHT RIGHT – Pagina 3 MZ 5 COM PAC T AUD IO SYS OPEN OPEN CLOSE CLOSE SHUF FLE PROG RAM PRESET PRESET I II I II TUNING TUNING aerial...
XP MZ5/37 15-03-2002 11:23 Pagina 5 Index English ________________________________________________ 8 Français ______________________________________________ 18 Español ______________________________________________ 32 Environmental information All unnecessary packaging material has been omitted.The packaging can be easily separated into three materials: cardboard, polystyrene and plastic. Your set consists of materials which can be recycled if disassembled by a specialized company.
Page 6
XP MZ5/37 15-03-2002 11:23 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer´s instructions.
This warranty gives you specific legal rights.You may have other rights which vary from state/province to state/province. Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606, (903) 242-4800 Pagina 7 PORTABLE AUDIO One Year Free Exchange EXCHANGING A PRODUCT IN U.S.A.,...
XP MZ5/37 15-03-2002 11:23 Controls and connections Top and front panels 1 STANDBY/ ON y – switches the set to standby/on 2 SOURCE – selects the sound source for CD/ TUNER/ CD RW/ AUX; switches on the set 3 PROGRAM –...
XP MZ5/37 15-04-2002 13:14 General information Power supply Speaker connections The speaker terminals are click-fit connectors. Use them as shown below. AUX in 8 Ω speakers LEFT LEFT – RIGHT RIGHT – • Connect the marked red wire to the red terminal and the unmarked wire the black terminal.
XP MZ5/37 15-03-2002 11:23 Switching on There are 3 ways to switch the set on: MZ 3 CO MP AC T AU DIO SY ST EM SHU FFLE PRO GRA M • press y STANDBY/ ON on the set and the last selected source switches on;...
XP MZ5/37 15-03-2002 11:23 Clock Setting the clock I II I II 1 In standby, press CLOCK. The clock digits for the hours and the AM/PM indication flash 0:00. 2 Turn VOLUME to set the hours: clockwise for hours up; anti-clockwise for hours down.
XP MZ5/37 15-03-2002 11:23 TIMER/SLEEP Activating and deactivating TIMER Press either: • on the remote control, TIMER during playback or in standby mode. • on the set, PROGRAM in standby mode. Display shows N if activated, and disappears if deactivated.
XP MZ5/37 15-03-2002 11:23 CD Player Finding a passage within a track 1 Press and hold down on ¡1 or 2™ (on the remote control 11 or 22). – The CD is played at high speed and low volume. 2 When you recognize the passage you want, release 11 or 22.
XP MZ5/37 15-03-2002 11:23 CD Player Erasing a program You can erase the program by: – pressing 9 once in the STOP position; – pressing 9 twice during playback; – opening the CD tray. • CLEARED is shown briefly and disappears from the display.
Tuner 2 Press PROGRAM on the set or remote control for more than 2 seconds to activate programming. AUTO is displayed and available stations are programmed in order of waveband reception strength: FM followed by AM. The last preset automatically stored will then be played. Press 9 on the set to interrupt auto programming.
XP MZ5/37 15-03-2002 11:23 Troubleshooting WARNING Do not open the set as there is a risk of electric shock! Under no circumstances should you try to repair the set yourself, as this will invalidate the warranty If a fault occurs, first check the points listed below before taking the set for repair.
Page 18
15-03-2002 11:23 Renvoyez votre carte d’enregistrement de garantie pour vous assurer de recevoir tous les avantages auxquels vous avez droit. • Dès que l’achat de votre appareil Philips est enregistré, vous avez droit à tous les avantages dont bénéficient les possesseurs des produits Philips.
Page 19
XP MZ5/37 15-03-2002 11:23 Généralités Garantie ......18 ,21 Informations sur la sécurité ..19, 20 Informations sur l’environnement.
Page 20
XP MZ5/37 15-03-2002 11:23 CONSIGNES DE SÉCURITÉ IMPORTANTES Lisez ces instructions. Conservez ces instructions. Respectez les avertissements. Suivez toutes les instructions. N’utilisez pas cet appareil à proximité d’une source d’eau. Nettoyez l’appareil uniquement avec un chiffon sec. N’obstruez aucun orifice de ventilation.
Page 21
Cette garantie vous donne des droits légaux spécifiques et vous pourriez avoir d’autres droits qui varient d’état en état et de province en province. Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606, É.-U., (903) 242-4800 Pagina 21 SYSTÈME SONORE PORTABLE...
XP MZ5/37 15-03-2002 11:23 Commandes et connexions Panneau avant/ section supérieure 1 STANDBY/ ON y – mise en veille ou en marche de l’appareil 2 SOURCE – sélection de mode pour CD/ TUNER/ CD RW/ AUX; mise en marche de l’appareil 3 PROGRAM –...
Page 23
XP MZ5/37 15-03-2002 11:23 Commandes et connexions MUTE – interruption et reprise de la restitution sonore BAND – sélection de la bande de fréquences VOLUME –, + – réglage du volume 2; – démarrage/ suspension de la lecture du CD ¡, ™...
Page 24
XP MZ5/37 15-04-2002 13:16 Informations générales Alimentation Branchement des haut-parleurs Les haut-parleurs sont raccordés à l’aide de connecteurs à encliquetage. Utilisez-les de la façon indiquée ci-dessous. AUX in 8 Ω speakers LEFT LEFT – RIGHT RIGHT – • Connectez le fil à repère rouge à la borne rouge et le fil sans repère à...
XP MZ5/37 15-03-2002 11:23 Mise en marche L’appareil peut être mis en marche de 3 façons différentes : MZ 3 CO MP AC T AU DIO SY ST EM SHU FFLE • appuyez sur y STANDBY/ ON sur l’appareil et la dernière source sélectionnée est activée;...
Page 26
XP MZ5/37 15-03-2002 11:23 Horloge Réglage de l'horloge MC 158 CO MP MC 158 CO MP AC T AU DIO AC T AU DIO SYS TEM SYS TEM I II I II 1 En mode d’attente, appuyez sur CLOCK. Les chiffres d’horloge pour les heures 0:00et l’indication AM/PM clignotent.
XP MZ5/37 15-03-2002 11:23 TIMER/SLEEP Activation et désactivation de la minuterie (TIMER) Appuyez soit: • sur la télécommande, sur TIMER pendant la lecture ou en mode veille; • sur l’appareil, sur PROGRAM en mode veille. N est affiché sur l’écran si elle est activée et disparaît si elle est désactivée.
Page 28
XP MZ5/37 15-03-2002 11:23 Lecteur de CD Rechercher un passage sur une plage 1 Maintenez enfoncée ¡1 ou 2™ (sur la télécommande 11 ou 22). – Le CD est lu à vitesse rapide et à faible volume. 2 Lorsque vous reconnaissez le passage que vous souhaitez écouter, relâchez 11 ou 22.
XP MZ5/37 15-03-2002 11:23 Lecteur de CD Effacement d'un programme Vous pouvez effacer le programme en: – appuyant une fois sur 9 en position STOP; – appuyant deux fois sur 9 pendant la lecture; – ouvrant le plateau CD. • CLEARED s’affiche brièvement et disparaît de l’écran.
Page 30
Syntoniseur numérique 1 Appuyez sur PRESET 4 ou 3 (¡ ou ™ sur la télé-commande) pour sélectionner le numéro de présélection à par tir duquel la programmation doit démarrer . Remarque: Si aucun numéro de présélection n'est sélectionné, la présélection 1 sera utilisée par déf et toutes vos présélections seront effacées.
Page 31
XP MZ5/37 15-03-2002 11:23 AVERTISSEMENT N'ouvrez pas l’appareil pour éviter tout risque de choc électrique ! Vous ne devez en aucun cas essayer de réparer l’appareil vous-même; cela annulerait la garantie. Si une panne survenait, vérifiez d'abord les points indiqués ci-dessous avant de faire appel à...
Page 32
Envie hoy su Tarjeta de Registro de la Garantía para recibir todas las ventajas correspondientes. • Una vez que se registre la compra de su aparato Philips, Ud. tiene derecho a todas las ventajas correspondientes al dueño de un producto Philips.
XP MZ5/37 15-03-2002 11:23 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Lea estas instrucciones. Conserve estas instrucciones. Lea todos los avisos. Siga todas las instrucciones. No utilice este aparato cerca del agua. Para limpiar el aparato utilice sólo un trapo seco. No tape las aperturas de ventilación.
Esta garantía le otorga derechos legales específicos y usted podría gozar de otros derechos que varían de un estado a otro. Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606, USA, (903) 242-4800 Pagina 35 SISTEMA DE AUDIO PORTATIL Cambio gratis por un año...
XP MZ5/37 15-03-2002 11:23 Controles y conexiones Paneles superiores y frontales 1 STANDBY/ ON y – cambia el equipo a la posición de espera/on 2 SOURCE – selecciona la fuente de sonido para CD/ TUNER/ CD RW/ AUX; enciende el equipo 3 PROGRAM –...
XP MZ5/37 15-03-2002 11:23 Controles y conexiones INCR. SURR – crea un efecto estéreo superrealista MUTE – nterrumpe y reinicia la reproducción del sonido BAND – selecciona la banda VOLUME –, + – ajusta el nivel del volumen 2; – inicia/ pausa la reproducción del CD ¡, ™...
Page 38
XP MZ5/37 15-04-2002 13:17 Informacion general Conexiones para altavoces Los terminales de altavoces son conectores clic. Use los terminales según se muestra abajo. AUX in 8 Ω speakers LEFT LEFT – RIGHT RIGHT – • Conecte el cable rojo marcado al borne rojo y el cable no marcado al borne negro.
XP MZ5/37 15-03-2002 11:23 Conexiones Encender Existen tres maneras para encender el equipo: MZ 3 CO MP AC T AU DIO SY ST EM SHU FFLE PRO GRA M • oprima el botón y STANDBY/ ON en el equipo y la última fuente anteriormente seleccionada quedará...
XP MZ5/37 15-03-2002 11:23 Reloj Ajuste del reloj MC 158 CO MP MC 158 CO MP AC T AU DIO AC T AU DIO SYS TEM SYS TEM I II I II 1 En modo de espera, pulse CLOCK. Los dígitos del reloj para las horas 0:00 y la indicación AM/PM parpadearán.
XP MZ5/37 15-03-2002 11:23 TIMER/SLEEP Activar y desactivar TIMER Pulse: • bien en el mando a distancia, la tecla TIMER durante la reproducción o en el modo de espera; • o bien en el equipo, el botón PROGRAM en el modo de espera.
XP MZ5/37 15-03-2002 11:23 Reproductor un CD Buscar determinado pasaje en una pieza musical 1 Pulse y mantenga oprimido ¡1 o 2™ (en el mando a distancia11 o 22). – El CD es reproducido a alta velocidad y baja volumen 2 Cuando reconozca el pasaje deseado, suelte 11 o 22.
XP MZ5/37 15-03-2002 11:23 Reproductor un CD Borrar un programa Para borrar el programa, proceda como sigue: – oprima 9 una vez en la posición de STOP; – oprima 9 dos veces durante la reproducción; – abrir la bandeja del CD.
Sintonizador 1 Pulse PRESET 4 o 3 (¡ o ™ en el mando a distancia) par a seleccionar el número de la presintonía donde la progr amación ha comenzado . Nota: Si no se ha seleccionado un número de presintonía, el número por defecto es 1 y todas las presintonías serán sobreescr itas.
XP MZ5/37 15-03-2002 11:23 Solución de problemas ADVERTENCIA ¡No abra el equipo, ya que puede recibir un choque eléctrico! De ninguna manera, intente reparar el equipo Vd. mismo, ya que invalidará la garantía. Si se presenta una avería, primero controle los puntos abajo listados antes de llevar a reparar el equipo.
XP MZ5/37 15-03-2002 11:23 Pagina 46 PHILIPS CONSUMER ELECTRONICS COMPANY A Division of Philips Electronics North America Corporation Knoxville,Tennessee 37914-1810, U.S.A. Meet Philips at the Internet http://www.philipsusa.com MZ-5 CLASS 1 LASER PRODUCT 3140 115 2944.2 Printed in China /CMM RB 0213...
