HD-SERIES
ENGLISH

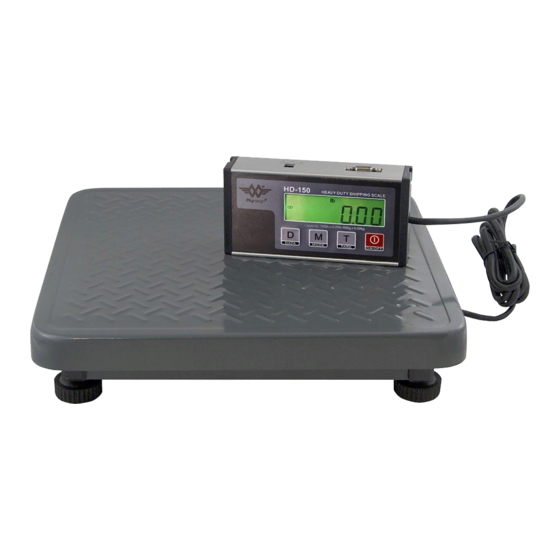

Thank you for purchasing the My Weigh HD Series heavy duty shipping scale. This scale is designed to provide years of accurate
weighing. Please read this entire manual before use. If you have any questions about your scale or have troubleshooting con-
cerns, please visit our website at www.MyWeigh.com.
SPECIFICATIONS
Model
HD150
Capacity
68kg/150lb
Accuracy
0.02kg/0.05lb
POWER SUPPLY
The HD Series scale is designed to run with 6.0V / 100 mA AC power (ac adapter included) or optional 4x AA batteries. The AC
adapter plugs into the socket on the rear of the scales weighing indicator. If you want to use batteries, please install them in the
battery compartment on the underside of the base of the scale.
Battery Installation
For battery installation, turn over the scale, you'll see the battery compartment on the underside of the base of the scale , lift
and open (see the enclosed drawing Fig1) the battery cover, remove and/or install the batteries. Be sure that the batteries are
installed correctly following the polarity indicators in the battery compartment. Reinstall the battery cover.
OPERATION INSTRUCTIONS
on the scale. Either place the remote display box together with the scale on its surface or mount the display box on a wall at a
suitable height with the included wall mounting kit.
Weighing Procedures
Press the
key to turn on the scale, the display will show "150.00lb" for the HD150 shipping scale or"300.0lb" for the HD300
shipping scale. When the display will shows "0.00" thhe scale is now ready for use. To begin weighing, follow these steps:
1. Press and release the
2. Press the [M] key to change the weighing unit between "lb" and "kg".
3. Press the [T] key to TARE or Zero the scale.
4. Press the [D] key to transmit the data through the USB port.
This document hosted by: www.oldwillknottscales.com
HD300
136kg/300lb
0.05kg/0.1lb
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MyWeigh HD150
Summary of Contents for MyWeigh HD150
-
Page 1: Specifications
Press the key to turn on the scale, the display will show “150.00lb” for the HD150 shipping scale or“300.0lb” for the HD300 shipping scale. When the display will shows ”0.00” thhe scale is now ready for use. To begin weighing, follow these steps: 1. - Page 2 Display Messages 150.00: the scales maximum capacity is 150.00lbs, the scale is attempting to locate the proper zero position for accurate weighing. 300.00: the scales maximum capacity is 300.00lbs, the scale is attempting to locate the proper zero position for accurate weighing.
-
Page 3: Gravity Mode
(60kg standard weight for HD150, 120kg standard weight for HD300), press the [T] key, the “F” in “CAL-F” 6. After the readings (60.00 for HD150 or 120.00 for HD300) are stable, the indicator will display “CAL-0”; remove the weight(s) from the platform, press the [T] key; the “0” in “CAL-0”... - Page 4 Europe Geographic Location Codes Iceland Finland Norway Sweden Estonia Latvia Ireland Russia Denmark Lithuania Netherlands Belarus Belgium Poland Germany Czech Rep. Ukraine Slovakia Moldova France Austria Switzerland Hungary Slovenia Romania Croatia Serbia & Bosnia & Montenegro Herezgovinia Italy Portugal Bulgaria Spain Macedonia Albania...
- Page 5 Canada Geographic Location Codes Nunavut Territory Yukon Northwest Territory Territories British Newfoundland Columbia Alberta Saskatchewan Prince Manitoba Quebec Edward Island Ontario Nova Scotia New Brunswick Ottawa Code State State State Code Alberta Prince Edward Island Quebec North of Edmonton Edmonton & South British Columbia Sept-Iles &...
- Page 6 e Geographic Location Codes Illinois Pennsylvania Rhode Island Bloomington & North South Carolina South of Bloomington Indiana South Dakota Tennessee North of Indianapolis Texas Indianapolis & South Iowa Northeast of Colorado River North of Des Moines Southwest of Colorado River Des Moines &South Utah Kansas...
- Page 7 USA Geographic Location Codes State Code State Code Alabama Mississippi Birmingham & North Kosciusko & North South of Birmingham South of Kosciusko Alaska Missouri North of Fairbanks Between Anchorage & Fair- banks Montana South of Anchorage Helena & North Arizona South of Helena Phoenix &...
- Page 8 CONNECTING THE HD-300 SCALE VIA USB 1. Connect the HD-300 scale to an available USB port on your computer. 2. Power on the scale. SETTING UP THE HD-300 FOR USE WITH THE UPS WORLDSHIP SOFTWARE - USA/CANADA ONLY ** Please note this function will not work in Europe** 1.
- Page 9 3. Click on “Hardware” in the drop-down menu. 4. Click on “Scale Port” drop-down menu and choose “USB”.
- Page 10 5. Click on “Scale Type” drop-down menu and choose “Toledo PS60-5155 150lb Flat Top”. 6. Click the “Test Scale” button.
- Page 11 7. As you place an item on the scale, you will see the weight displayed in the “weight” “OK” to exit this screen. On the next screen, click “OK” again to exit to the main screen. 8. Finally, ensure that the box next to “Electronic Scale Activated” is checked. Your scale is now set up and ready to use.
-
Page 12: Specifications
Fig 2: Indicator’s outline and placement positioning USB PORT AC ADAPTER SOCKET Hanging on wall Placed on a table SPECIFICATIONS Model HD150 HD300 Capacity 68kg/150lb 136kg/300lb Accuracy 0.02kg/0.05lb 0.05kg/0.1lb Units lb, kg Platform dimension 355.5 x 355.5 x 63.5mm (14” x 14” x 2.5”) Display dimension 165 x 82.5mm (6.5”...
