Summary of Contents for MyWeigh iBalance i3100

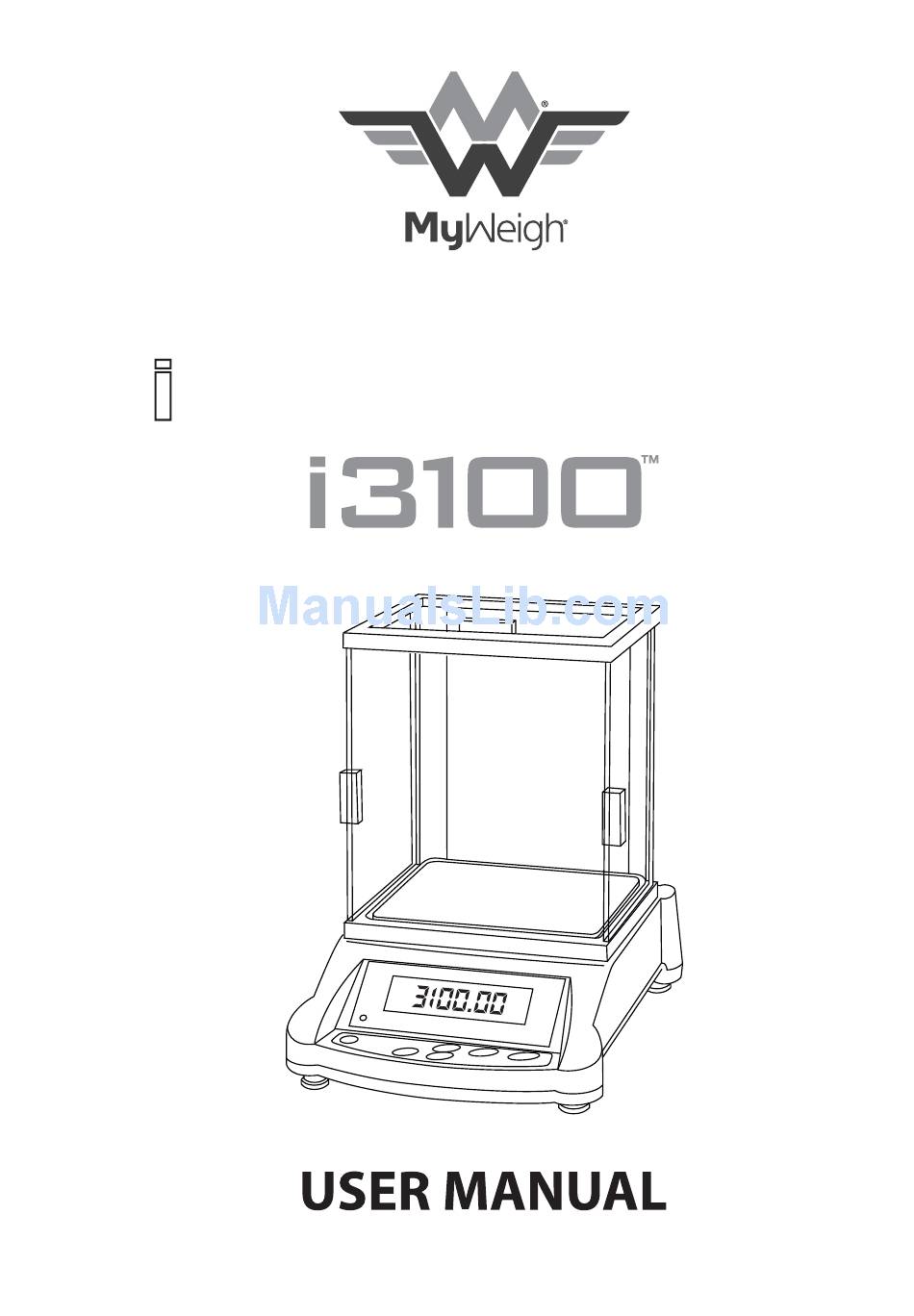

- Page 1 BALANCE...
-
Page 2: User Manual
This electronic scale is a precision instrument. With normal care and proper treatment, it will provide years of reliable service. For more information please visit www.myweigh.com Never load the scale with more than the maximum capacity. Although the iBalance® 3100™ is designed to be extremely durable with extra overload protection built into the case, overloading will permanently damage it! Avoid any exposure to extreme heat or cold, your scale works better when operated at normal room temperature. -
Page 3: Display Symbols
SCALE FEATURES OPTIONAL CLEAR WIND SCREEN ADJUSTABLE FEET on bottom of each corner of the scale DATA TRANSMISSION PORT on right side of the scale AIR BUBBLE LEVEL DISPLAY SYMBOLS KEYPAD FUNCTIONS ON/OFF power switch. • Scale is in ZERO mode. SAMPLING &... -
Page 4: Power Supply
POWER SUPPLY The i3100™ is powered by DC 6 V rechargeable battery or directly by power adapter. OPERATION INSTRUCTIONS Weighing Procedures 1.Press to turn on the scale. When the power is turned on, the scale will countdown for a few seconds and "0" will appear on the display. 2.Select the weighing unit with key. - Page 5 COUNTING FUNCTION 1. Press to cycle through the weighing modes until the display will show “ CA 10 PCS” (means sample size is 10 pcs) to toggle sample size, “10 , 20 , 50 , 100” , “200”, “500”, “1000”pcs will appear in. Stop at the one you want to use. 2.
- Page 6 DATA TRANSMISSION – SERIES RS-232 INTERFACE (only for communication) 1. iBalance 0232C,s -RS232 C’s UART signal DATA(8BYTE) 2. Format 2D (HEX) = “- ”(negative sign) 20 (HEX) = “ ”(blank) (1) Baud rate: 1200 bps 2400 bps 4800bps 9600 bps 2E (HEX) = “.
