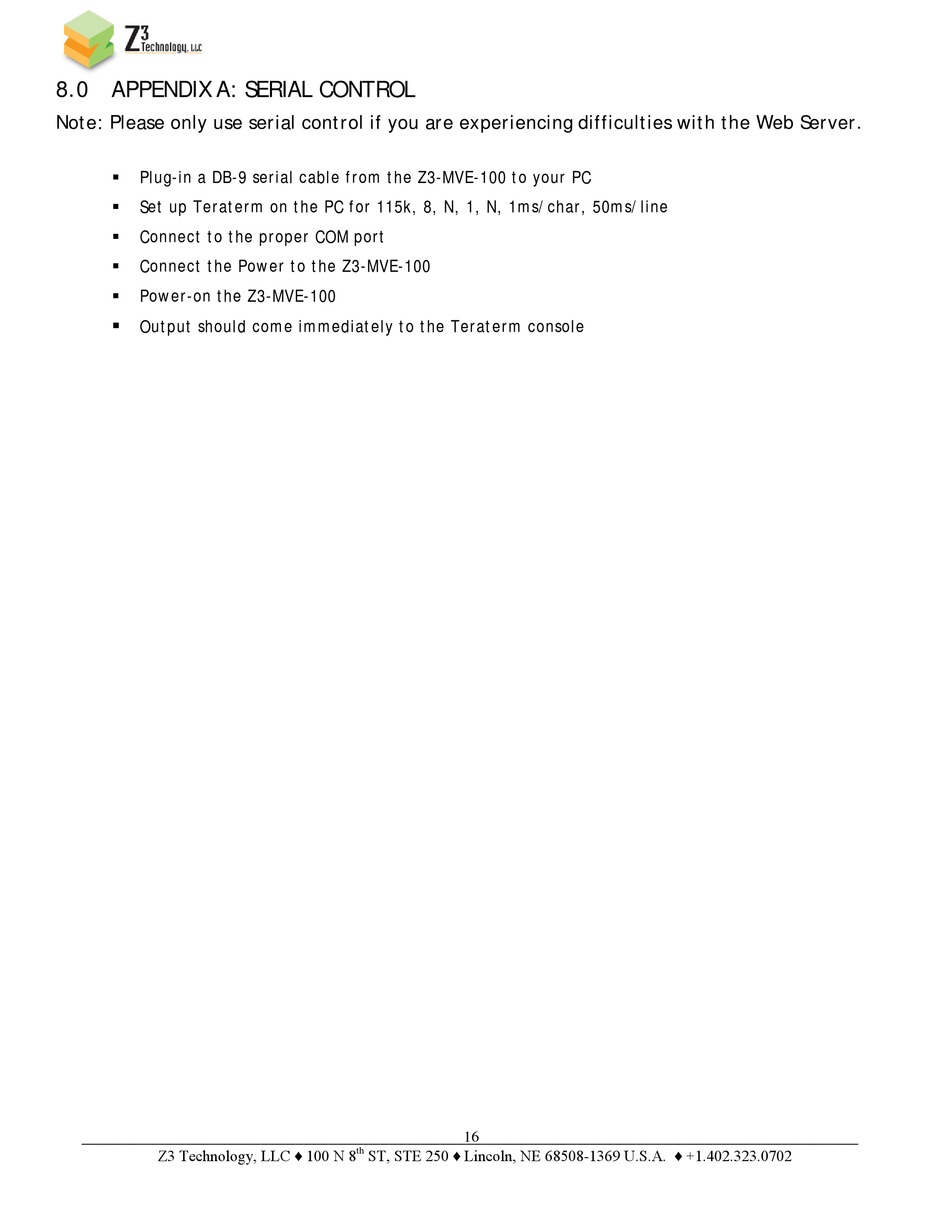

8.0 APPENDIX A: SERIAL CONTROL

Note: Please only use serial control if you are experiencing difficulties with the Web Server.
Plug-in a DB-9 serial cable from the Z3-MVE-100 to your PC

Set up Teraterm on the PC for 115k, 8, N, 1, N, 1ms/char, 50ms/line

Connect to the proper COM port

Connect the Power to the Z3-MVE-100

Power-on the Z3-MVE-100


Output should come immediately to the Teraterm console
