- Page 1 LED Club Scan ORDERCODE 43020...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Club Scan Product Guide ™ Warning..…...................………………………………………………………... Safety-instructions……………………………………………………………………………………………………….… Operating Determinations…………………………………………………………………………………………..….. Description..…................……….……………………………………………..… Features and Overview ………………………………...….……………….………….……….……….………………. Backside…………………………………………………...…...….……………….…………………...………………….. Set Up and Operation..............……..………………………………………………. Master/Slave-operation……...........……..………………………………………………….….. Remote Control socket......………………..…....……………………………………..…... Addressing...........……..…………………………………………………………………………… DMX-protocol ……………………………………………………………………………………………………………… Maintenance...................………..………….…….………………………….. Changing the Fuse................…………………….………………………..…... Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Connection With The Mains
• The device has to be installed out of the reach of people. • If the device shall be lowered from the ceiling or high joists, professional trussing systems have to be used. • The device must never be fixed swinging freely in the room. Caution: Devices in hanging installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device! Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's... -
Page 7: Description Of The Device

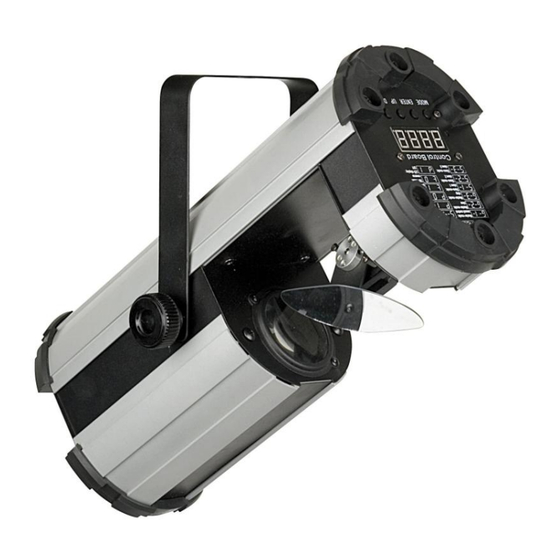

Description of the device Features • Gobo rotation via LED matrix • Strobe-effect with adjustable speed • Equipped with 40 LEDs: 16 x red, 12 x blue, 12 x green • 100 000 hours LED life • ¼" jack-socket for remote control •... -
Page 8: Backside
Fig. 2 Fig. 3... -
Page 9: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. After you connected the effect to the mains, the LED SCAN starts running. -
Page 10: Remote Control Socket
Pan Reverse With this function you can reverse the Pan-movement. Tilt Reverse With this function you can reverse the Tilt-movement. Display close time With this function you can shut off the LED display. Remote Control socket If you wish to lock the light output - via an optional remote control, connect your remote control to the remote control socket. -
Page 11: Addressing
If you are using controllers with this occupation, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables. Building a serial DMX-chain: Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. -
Page 12: Dmx-Protocol
DMX-protocol Channel 1 – Strobe Closed 8-247 Strobe-effect with increasing speed 248-255 Open / White Channel 2 – Gobos Gobo 1 8-15 Gobo 2 16-23 Gobo 3 24-31 Gobo 4 32-39 Gobo 5 40-47 Gobo 6 48-55 Gobo 7 56-63 Gobo 8 64-71 Gobo 9... -
Page 13: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec led Club Scan requires almost no maintenance. However, you should keep the unit clean. -
Page 14: Troubleshooting
4. If you are unable to determine the cause of the problem, do not open the LED Club Scan, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. Product Specification...
