2.5.2 System 9000 chassis mounting
The 9252AY can alternately be
mounted in a Model 9001 chassis.
Nine units will fit in one 9001-0
chassis, eight will fit in a 9001-1
chassis and seven will fit in a 9001-2
chassis. Remove and save the 4
screws holding the surface mounting
plate to extrusion. Attach the
9000KIT-5 to the unit using the four
corner screws that hold the rear panel
on the Model 9525AY (D shell
connector end). Then attach the units
to the chassis using the captive
screws in the plate supplied with the
kit.

2.6 Optical Cabling

2.6.1 GENERAL
The Model 9525A communicates over two fibers: one fiber for the transmit/receive signal in one
direction and a second fiber for transmit/receive in the other direction.
Most cable manufacturers identify the individual fibers in the cable. Check the fiber and mark it to
ensure that the fiber connected to the TX1 and RX1 port of the modem at one end is the same fiber
that is connected to the RX2 and TX2 port of the modem at the other end.
Before connecting the optical cable, first remove and save the plastic dust caps from the optical ports
and fiber connectors.
Remove and store the dust caps from the fiber connections. Clean the connectors with Isopropyl
alcohol on lint free tissue. Dry with bottled air.

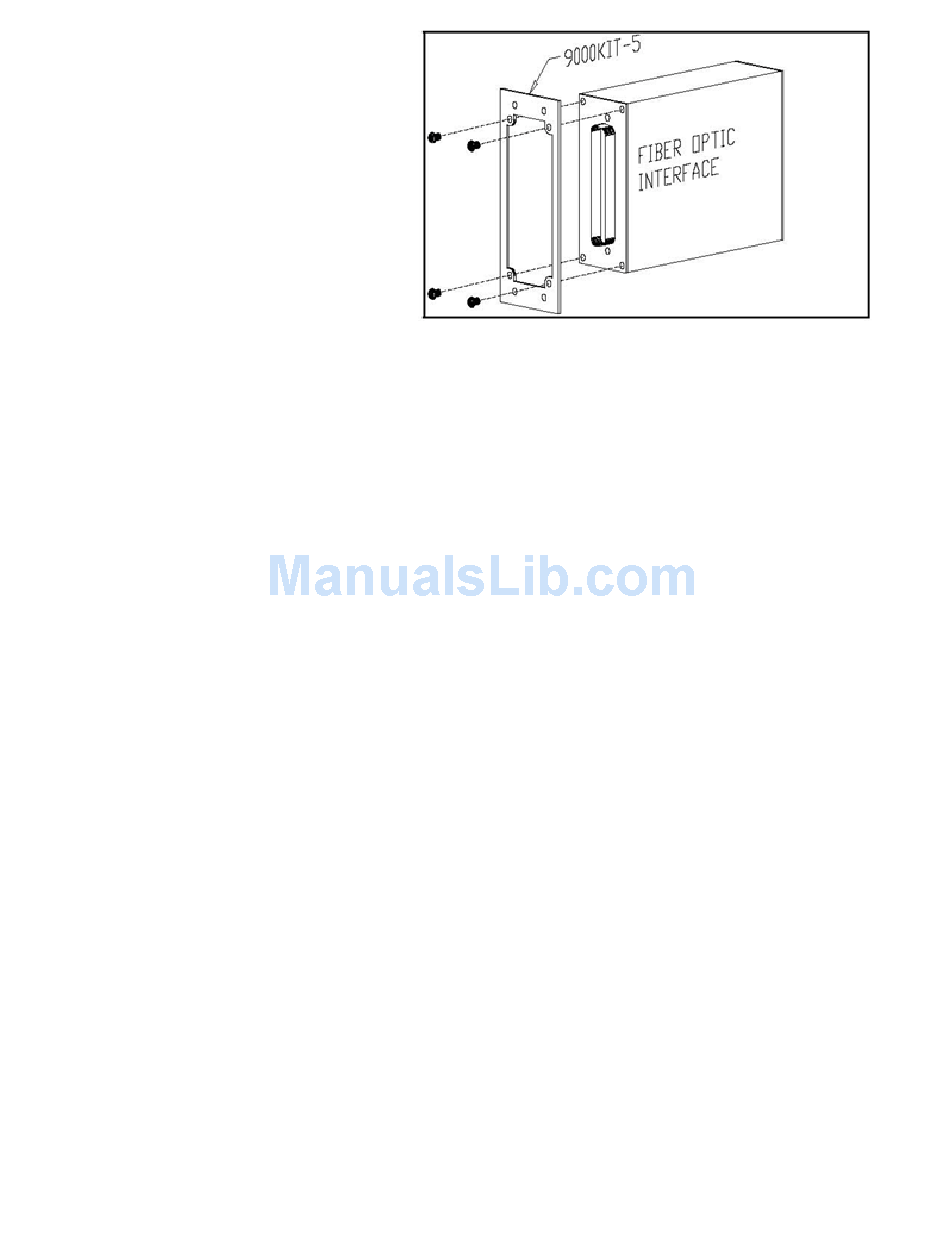

7 – S
