Optelecom 9522A Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

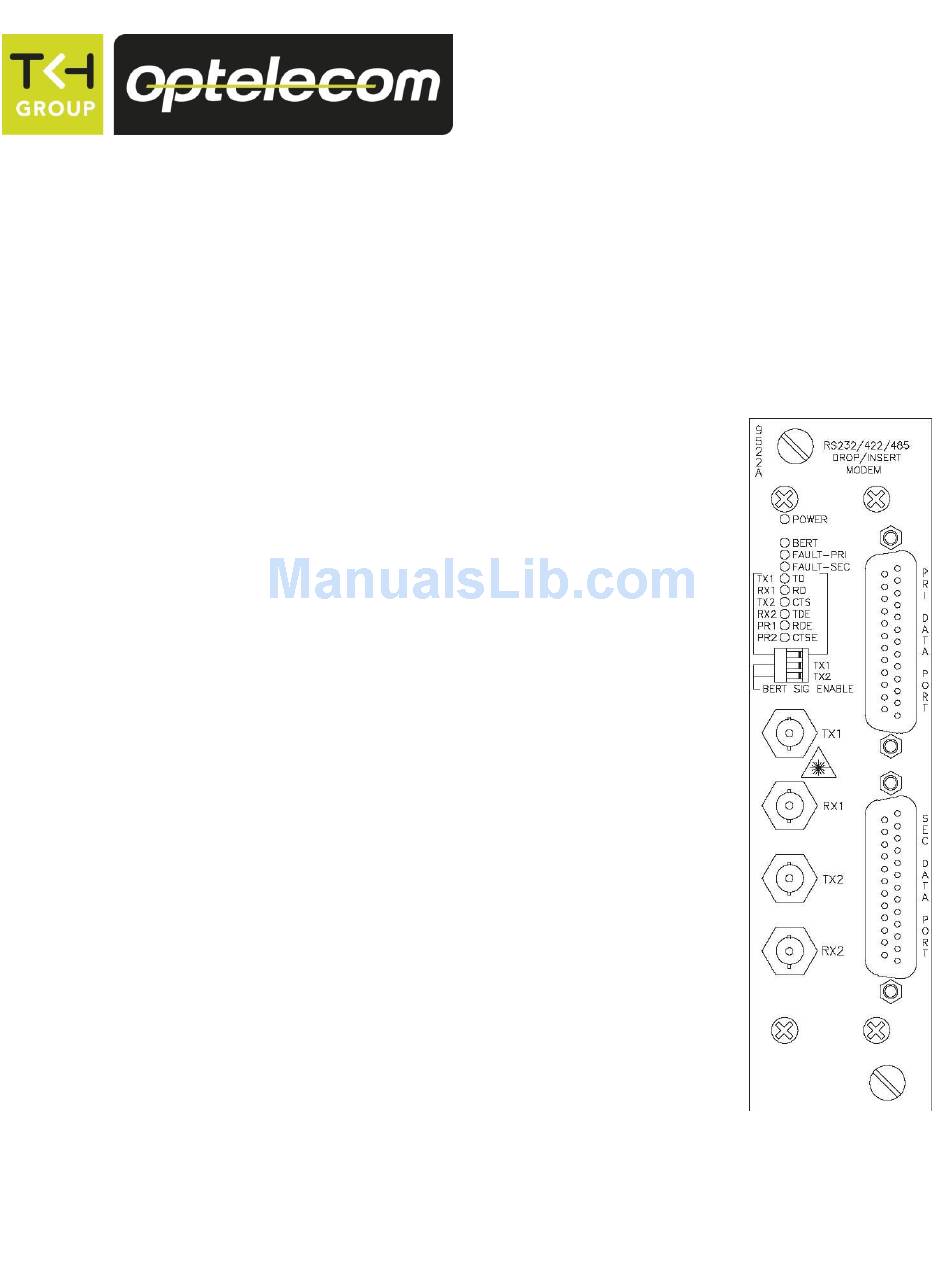

Optelecom 9000 Series
Installation and Operation Manual
Model 9522A
Two Fiber, Dual Port
Intelligent Drop/Insert Data Modem
9522A modules transport a single RS232/RS422/RS485 data signal in
a daisy chain or redundant loop configuration, making it available on
two separate electrical I/O ports on each unit.
UM50392, Manual 9522A, Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9522A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optelecom 9522A

Summary of Contents for Optelecom 9522A

  • Page 1 Model 9522A Two Fiber, Dual Port Intelligent Drop/Insert Data Modem 9522A modules transport a single RS232/RS422/RS485 data signal in a daisy chain or redundant loop configuration, making it available on two separate electrical I/O ports on each unit. UM50392, Manual 9522A, Rev. B...

  • Page 3: Table Of Contents

    9522A Front Panel Indicator, Connector, and Switch Locations and Functions 9522A Internal Switch Locations and Functions Quick Set Up Guide System Architecture Set Up of the 9522A Operation of the 9522A Operation of the 9522A with the Network Management System (NMS) Software Specifications for the 9522A...

  • Page 4: Safety Instructions

    Safety Instructions RM-1 The safety information contained in this section, and on other pages of this manual, must be observed whenever this unit is operated, serviced, or repaired. Failure to comply with any precaution, warning, or instruction noted in the manual is in violation of the standards of design, manufacture, and intended use of the unit.

  • Page 5: Instrucciones De Seguridad

    Instrucciones de Seguridad RM-1 Debe observarse la información de seguridad contenida en esta sección, y en otras páginas de este manual siempre que se opere, dé servicio o repare esta unidad. Si no se cumple con alguna precaución, advertencia o instrucción indicada en este manual se infringen los estándares de diseño, fabricación y el uso destinado a la unidad.

  • Page 6: Sicherheitsanleitungen

    Sicherheitsanleitungen RM-1 Die in diesem Abschnitt und auf anderen seiten dieses Handbuchs enthaltenen Sicherheitsinformationen müssen befolgt werden, wenn diese Einheit betrieben, gewartet oder repariert wird. Falls Vorsichtsmassnahmen, Warnungen oder Anweisungen in diesem Handbuch nicht befolgt werden, verstösst dies gegen die Konstruktions, und Herstellungsstandards und erfolgt im gegensatz zum vorgesehenen Verwendungszweck dieser Einheit.

  • Page 7: Consignes De Sécurité

    Consignes de Sécurité RM-1 Les consignes de sécurité contenues dans cette section et dans le reste de ce manuel doivent être respectées a chaque fois que cet appareil est utilisé ou fait l’objêt d’une maintenance ou d’une réparation. Le non-respect d’une précaution, d’un avertissement ou d’une instruction figurant dans ce manuel est une violation des normes de conception, fabrication et indication d’usage de l’appareil.

  • Page 8: Fiber Information

    Fiber Information This unit was manufactured with attention to fiber cleanliness by TKH Security Solutions USA. Beyond the optical safety information contained in this manual, the following guidelines should be observed when working with optical fibers. The biggest problem is dirt! It takes very little contamination to cause problems with optical fiber connections;...

  • Page 9: Functional Description

    Functional Description The TKH Security USA Model 9522A is an RS232, RS422, and RS485 compatible fiber optic standalone modem with dual electrical I/O ports and dual optics for drop and insert applications that can be configured in a wide range of poll/response network architectures. The unit operates using only one fiber for transmit and receive in the upstream direction and a second fiber in the downstream direction.

  • Page 10: 9522A Front Panel Indicator, Connector, And Switch Locations And Functions

    9522A Front Panel Indicator, Connector, and Switch Locations and Functions IGURE 1. INDICATORS green  Power Indicator: This LED illuminates when 8 to 15 VDC power is applied to the modem via the Power Connector on the back of the enclosure.
  • Page 11  TX2/CTS Dual Function Indicator: TX2: green — When the Indicator Selection Switch is in the left position this LED will flash when Optical data is being transmitted via the TX2 Port. CTS: green — When the Indicator Selection Switch is in the right position this LED indicates a true CTS output from Pin 5 of the Primary Data Port.
  • Page 12 5. SECONDARY DATA PORT CONNECTOR This DB25P connector provides the input/output connections for the RS232, RS422, and RS485 Connections to the Secondary Data Port. Refer to the Set Up section of this manual for more details on using these outputs and inputs.

  • Page 13: 9522A Internal Switch Locations And Functions

    9522A Internal Switch Locations and Functions IGURE 6. DIPSWITCH S6 This dipswitch, along with S1, is used to set the Primary Data Port Electrical mode to RS232, RS422, or RS485. Refer to the Quick Set Up Guide and the Set Up sections of this manual for more details on setting this switch.

  • Page 14: Quick Set Up Guide

    Quick Set Up Guide This section provides all the dipswitch information in one location. For details on each function, refer to the Set Up section of the manual. 3 — D IGURE IPSWITCH UIDE Switch 1 — Mode/Data Port Settings/Echo/Data Tagging Mode Selection Down...
  • Page 15 Switch S3 — BERT Test (on Front Panel, Positions 2 and 3) Position Function Down = BERT Test On (TX1/RX1) Up = BERT Test Off (TX1/RX1) Down = BERT Test On (TX2/RX2) Up = BERT Test Off (TX2/RX2) Switch S2 — Timeout/Streaming/Priority Select/CTS/Ring Propagations Set Up Function Down Down...

  • Page 16: System Architecture

    System Architecture The Model 9522A can be configured into three basic network architectures with almost unlimited variations. Variations include unlimited branches from the main trunks. Typically the rack-mountable Model 9522A or 9522AY are used at a central hub. Standalone Models 9526AY and 9526A are used at the remote (local) locations.
  • Page 17 Local Daisy Chain (LDC) Mode In this mode, there is a specific "upstream" and "downstream" data direction, because data is only transmitted to or from the master rather than in both directions as on a ring. Specifically, the TX1/RX1 port communicates upstream with the master controller and the TX2/RX2 port communicates downstream with the next modem on the daisy chain.
  • Page 18 4 — O IGURE PERATING ODES IGNAL OUTING TX1/RX1 TX2/RX2 TX1/RX1 TX2/RX2 Master Daisy Chain Mode Local Fault Tolerant Mode TX1/RX1 TX2/RX2 TX1/RX1 TX2/RX2 Local Daisy Chain Mode Master Fault Tolerant Mode...
  • Page 19 With this architecture, one master controller lies at the end of one or more main trunks. In all cases, a Model 9522A set in Master Daisy Chain Mode will be used as the master modem. A branch can be configured off the main trunk by connecting another modem to an unused data port of a modem on the trunk and building a daisy chain from that modem.
  • Page 20 (Refer to Figure 6) AISY HAIN WITH ASTER ONTROLLERS With this architecture, master controllers lie at both ends of one or two main daisy chain trunks. In this application, the local modems in the "daisy chain" trunk operate in Local Fault Tolerant mode because the modems in the daisy chain have to be able to communicate with masters in both directions.
  • Page 21 6 — D IGURE AISY HAIN RUNK WITH EDUNDANT ASTER ONTROLLERS...
  • Page 22 (Refer to Figure 7) AULT OLERANT EDUNDANT With the architecture of Figure 7, all modems are arranged around a dual counter rotating fiber ring (via one fiber), starting with one optical port of the master modem (operating in Master Fault Tolerant mode), looping through an indeterminate number of local terminal modems (operating in Local Fault Tolerant mode), and terminating back into the second optical port of the master controller modem completing the ring.
  • Page 23 7 — F IGURE AULT OLERANT ING WITH AISY HAIN RANCHES...
  • Page 24 DDITIONAL EATURES In addition to the features already described the following features of operation are incorporated as either basic indispensable functions or as performance enhancements or options. Data Input Anti-Streaming The electrical side anti-streaming feature, when enabled, limits the time that a terminal unit may accept and transmit RS232 input data with a single request-to-send (RTS) enable.
  • Page 25 Priority Select Priority Select is enabled automatically in both Master and Local Fault Tolerant modes (Refer to the section of the manual on Operational Modes). The priority select circuitry automatically selects the data that arrives first via either the TX1/RX1 or TX2/RX2 optical ports. In normal operation, since the master transmits both directions on the ring, each terminal on the ring will receive data from both directions.
  • Page 26 When using this feature, all modems in the network must be Models 9522Y, 9526Y, 9522A, 9521AY, or 9522A. If this feature is disabled, other models such as the 9525Y and...

  • Page 27: Set Up Of The 9522A

    Set Up of the 9522A Preparation of the modem for operation consists of setting the dipswitches for the particular application, making the fiber, data, and power connections. ETTING THE IPSWITCHES  Set the Operational Mode using S1 switches 1 and 2. Refer to Table 1 and to the System Architecture section for more details on selecting the Operational Mode.
  • Page 28  Set the Data Tagging for the Primary Data Port with switch S1-10. If the Data Tagging Feature is enabled, ALL modems in the network must have this feature enabled. If there are modems in the network that do not support this feature, it MUST be disabled. Refer to Table 2 and the System Architecture section for details on this function.
  • Page 29  Set the RS232 Anti-Stream Enable/Timeout. Set S2-1, S2-2, and S2-3 to either disable or select the RS232 anti-streaming timeout. Refer to the Anti-stream Timeout section in System Architecture and to Table 4. Table 4 — Switch S2, Timeout/Streaming Set Up Function Down Down...
  • Page 30  Set the Clear to Send Inhibited by Optical Side Activity as explained in the Clear to Send Inhibited by Optical Side Activity section of System Architecture by setting S2-6. Refer to Table 7. Table 7 — Switch S2, CTS Optical Activity Set Function CTS Low upon Optical Activity —...
  • Page 31 Table 9 — RS232 Primary and Secondary Data Port Connections Pin # Identification Signal Direction, Comments Transmit Data (DT) Input to modem Receive Data (RD) Output From Modem Ready to Send (RTS) Input To Modem Clear To Send (CTS) Output from Modem Data Set Ready (DSR) Output (this output is always tied High) Signal and Chassis Ground...
  • Page 32 RS422 and RS485 Connections When operation with RS422 or RS485 is required, make the connections as listed in Table 10. In RS422 or RS485 model there are no RTS or CTS control lines. Rather the RTS and CTS signals are internally enabled. The RTS and CTS indicator will always be illuminated when the unit is operated with RS422/RS485 data.
  • Page 33  Alarm Connections. A Form C relay output is available via Pins 14, 15, and 16 of the Secondary Data Port connector. Refer to Figure 11. There are three alarm conditions that will activate the external alarm contacts. 1. In the Master Fault Tolerant Mode, if the master unit does not sense the return of a transmitted data burst on both of its optical inputs indicating a break in the optical ring.

  • Page 34: Operation Of The 9522A

    After the proper set up procedures have been accomplished, the modem should communicate correctly with the controller and the other modems in the network. In the event of problems, make use of the extensive array of indicators available on the 9522A for troubleshooting. Table 11 below provides additional information about the Indicators.
  • Page 35 UNCTION The 9522A has a rudimentary BERT test feature that may be implemented off-line. While the test is being run, no other signals may be introduced to a modem in the network. To run the test, set the Front Panel dipswitch position 2 (center switch), for the TX1/RX1 optical ports or position 3 (bottom switch), for the TX2/RX2 port DOWN, depending on which data path you wish to test.

  • Page 36: Operation Of The 9522A With The Network Management System (Nms) Software

    When the 9522A card is installed into an existing system already utilizing NMS system software, an upgrade of the software will be necessary to add the 9522A card to the software database in the NMS software. Consult the factory for guidance on how to download the latest version of the software from the TKH Security USA...

  • Page 37: Specifications For The 9522A

    Specifications for the 9522A OPTICAL Optical specifications are measured with the BERT test enabled. Model Type Fiber Size 62.5/125 62.5/125 09/125 Tx Output Power (dBm) –19 –20 –18 Tx Optical Wavelength (nm) 1310 1310 Rx Receiver Sensitivity (dBm) –38 –38 –38...
  • Page 38 ENVIRONMENTAL Operating Temperature -40° C to +74° C Storage Temperature -55° C to +85° C Relative Humidity 0 to 95% noncondensing In line with TKH Security USA’s policy of continuous product improvement, we reserve the right to vary product specifications and descriptions without notice.
  • Page 40 TKH Security Solutions www.tkhsecurity.com Siqura B.V. TKH Security Solutions USA Zuidelijk Halfrond 4 • 2801 DD Gouda 12920 Cloverleaf Center Drive • Germantown The Netherlands Maryland 20874 USA Telephone: +31 182 592 333 Telephone: +1 301 444 2200 Fax: +31 182 592 123 Toll Free: +1 800 293 4237 E-mail: sales.nl@tkhsecurity.com...
