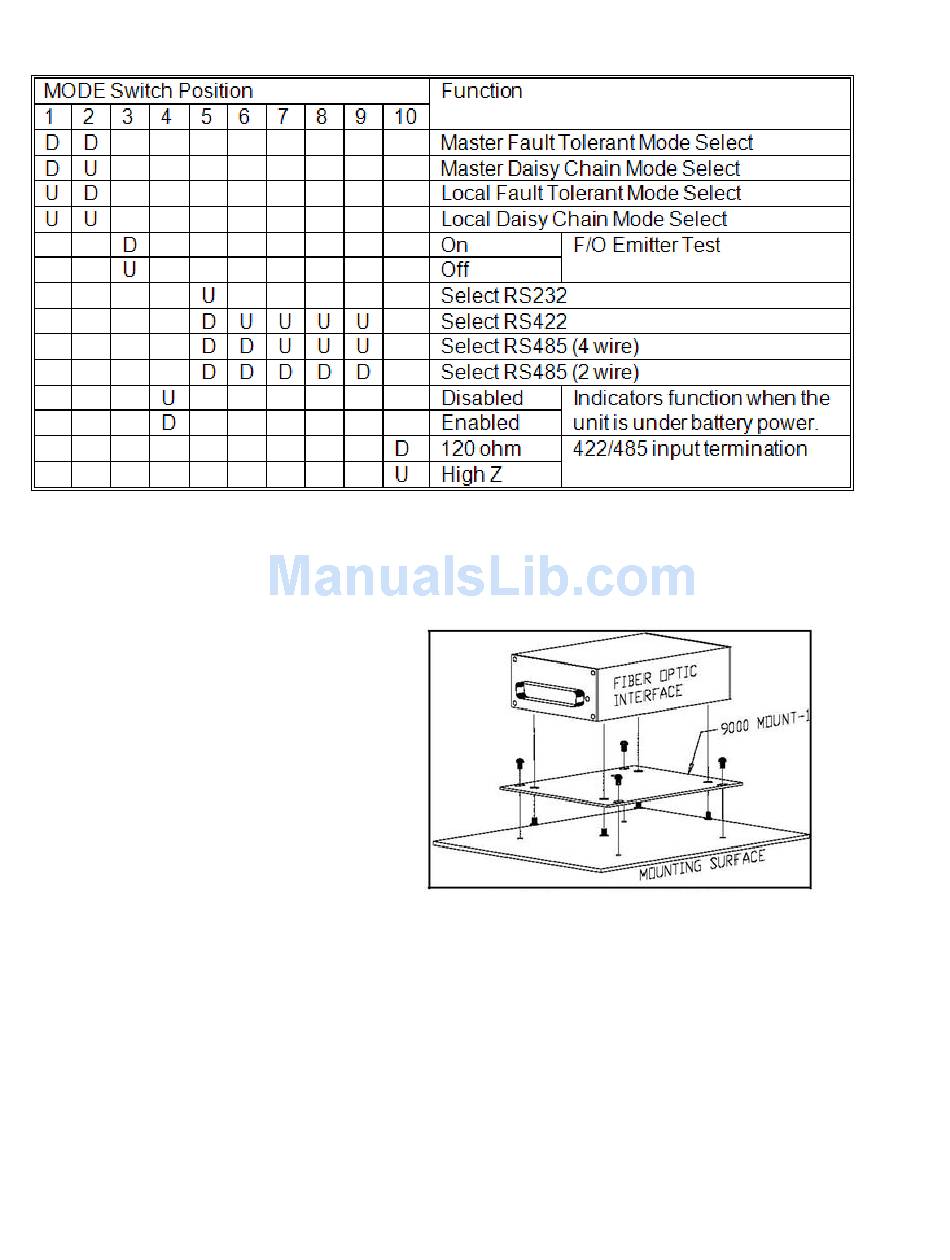

Table 3 – Mode and Interface Select Switches

2.5 Mounting

2.5.1 Standalone Mounting
The model 9525AY can be mounted
directly to a flat surface using the
attached mounting plate. The
mounting plate attaches to the bottom
of the unit using four screws.
Use the oval holes in the plate to
mount the unit to the flat surface.
It is best to mount the unit to a heat
conductive surface to maximize heat
transfer away from the units.
6 – S
F A
IGURE TAND LONE
19
M
OUNTING
