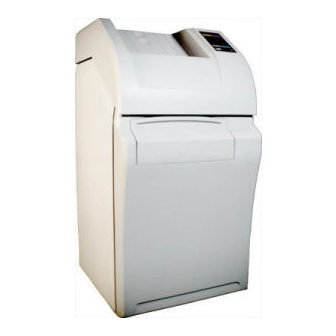

Kodak DryView 8700 User Manual
  1. Manuals
  2. Brands
  3. Kodak Manuals
  4. Medical Equipment
  5. DryView 8700
  6. User manual

Kodak DryView 8700 User Manual

Multi diagnostic laser imager
Hide thumbs Also See for DryView 8700:
Table of Contents

Advertisement

Quick Links

DRAFT
Kodak DryView 8700/8500 Laser Imager
User Guide
8599110
41-1202-0176-3
3/01 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DryView 8700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kodak DryView 8700

Summary of Contents for Kodak DryView 8700

  • Page 1 DRAFT Kodak DryView 8700/8500 Laser Imager User Guide 8599110 41-1202-0176-3 3/01 Rev. B...

  • Page 3: Safety Instructions

    Warnings and Cautions Warnings and Cautions for Kodak DryView 8700/8500 Laser Imager Safety Instructions Read and understand all instructions before using. WARNING This equipment is operated with hazardous voltage which can shock, burn, or cause death. Remove wall plug before servicing equipment. Never pull on cord to remove from outlet.
  • Page 4 Covers shall be removed by authorized service personnel only. CAUTION Do not substitute or modify any part of this equipment without approval of Eastman Kodak Company. CAUTION General External Cleaning: This equipment may be cleaned with a damp cloth using water with mild detergent, or commercial electronic equipment cleaner.
  • Page 5 Warnings and Cautions CAUTION This equipment is intended to connect to other medical devices. Only qualified service personnel may perform installation and service maintenance. The laser in the equipment is not a patient device. Therefore, the equipment must be installed no closer than 1.83 meters from a patient bed or chair.
  • Page 6 User Guide Class 1 Laser Laser de catégorie 1 Laser-Klasse 1 Laser di Classe 1 Klass 1 Laser Left Front Rear DANGER Invisible Laser Radiation When Open. Avoid Direct Exposure to Beam. ATTENTION - Rayonnement Laser Invisible En Cas D’Ouverture. Exposition Dangereuse Au Faisceau.

  • Page 7: Warnings And Cautions For External Interface Box Accessories

    Warnings and Cautions Warnings and Cautions for External Interface Box Accessories Read and understand all instructions before using. Classifications UL Classified File Number E183646 Control Number 9R46 Medical Equipment UL 2601-1 CAN/CSA No. 601.1 Classified by Underwriters Laboratories Inc.Ò With Respect to Electric Shock, Fire, Casualty and Medical Hazards only in Accordance with UL 2601-1, CAN/CSA C22.2 No.
  • Page 8 Fuse Rating. CAUTION Do not substitute or modify any part of this equipment without approval of Eastman Kodak Company. CAUTION General External Cleaning: This equipment may be cleaned with a damp cloth using water with mild detergent, or commercial electronic equipment cleaner.
  • Page 9 Warnings and Cautions Read and understand all instructions before using. Label located on back of machine. 2001 March Rev. B 8599110...
  • Page 10 User Guide BLANK PAGE 8599110 2001 March Rev. B viii...

  • Page 11: Agency, Regulatory And Ce Marking Compliance

    Agency, Regulatory and CE Marking Compliance Agency, Regulatory and CE Marking Compliance This equipment has been tested for and complies with the following Safety and Emission Standards. Certificates of Compliance and Declarations of Conformity have been issued as shown below. Safety: Canada: C22.2 NO 950-95–CAN/CSA Safety for Information Technology Equipment,...
  • Page 12 User Guide Rest of World: IEC 950: Safety of information technology equipment IEC 60601–1–1: Medical electrical equipment – Part 1: General requirements for safety – Section 1: Collateral standard: Safety requirements for medical electrical systems IEC 60825–1: Safety of laser products – Part 1: Equipment classification, requirements and user’s guide EMC: Canada:...
  • Page 13 Agency, Regulatory and CE Marking Compliance EN 61000–4–5 (IEC 1000–4–5): Electromagnetic Compatibility (EMC) – Part 4: Testing and Measurement Techniques – Section 5: Surge Immunity Test EN 61000–4–6 (IEC 1000–4–6): Electromagnetic Compatibility (EMC) – Part 4: Testing and Measurement Techniques – Section 6: Immunity to Conducted Disturbances, Induced by Radio–Frequency Fields EN61000–4–8 (IEC1000–4–8): Electromagnetic Compatibility (EMC) –...
  • Page 14 User Guide CE Marking: Documents concerning the conformance of this product to Council Directive 93/42/EEC of 14 June 1993 concerning Medical Devices can be obtained from the Eastman Kodak Health Imaging Systems European Representative at: Kodak AG Quality Services Product Safety...

  • Page 15: Table Of Contents

    Eastman Kodak Company reserves the right to change this information without notice and makes no warranty, express or implied, with respect to this information. Kodak shall not be liable for any loss or damage, including consequential or special damages, resulting from the use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.
  • Page 16 Erasing Stored Images – Kodak Keypad ... . Deleting a Job from the Print Queue – DryView 8700/8500 Keypad ........
  • Page 17 Environmental Effects ......DryView 8700/8500 Laser Imager Storage Environment ........
  • Page 18 User Guide BLANK PAGE 8599110 2001 March Rev. B...

  • Page 19: Introduction

    The two imagers are nearly identical except for film size. The 8700 Laser Imager uses only 14” x 17” (35 x 43 cm) Kodak DryView Laser Imaging Film (DryView film). The 8500 Laser Imager also uses DryView film but accepts only 11 in. x 14 in.

  • Page 20: System Configurations

    Image acquisition and printing are accomplished via host control or Kodak Keypad. Multi-Input/Dual Printer System Consists of an 8700 or 8500 Dual Printer connected to a Kodak DryView 8800 Multi-Input Manager (8800 Multi–Input Manager) or 969 HQ Laser Imager. Supports up to eight inputs.

  • Page 21: Keypad Feature Comparison

    Introduction Keypad Feature Comparison This table compares the features provided by the DryView 8700/8500 Keypad and the Kodak Keypad. Note that the Kodak Keypad is available with all DryView 8700/8500 Laser Imager systems, but the DryView 8700/8500 Keypad is available only with the DryView 8700/8500 Laser Imager Standard system.

  • Page 22: How The Dryview 8700/8500 Laser Imager Works

    6. The film transport drives the film out of the film developer, through the densitometer, and out to the receive tray. The densitometer is a key element in the Kodak Automatic Image Quality Control (AIQC) process, which allows the imager to automatically adjust image processing parameters to ensure optimum image quality.
  • Page 23 Introduction Film Developer Receive Tray Densitometer Supply Cartridge Film Exposure Transport Module Figure 1-2. Print Sequence 2001 March Rev. B 8599110...
  • Page 24 User Guide BLANK PAGE 8599110 2001 March Rev. B...

  • Page 25: Controls And Indicators

    Controls and Indicators Controls and Indicators Kodak DryView 8700/8500 Laser Imager The controls and indicators for the Kodak DryView 8700/8500 Laser Imager (8700/8500 Laser Imager) are identified in the figure. The numbered descriptions correspond to the numbered callouts in Figure 2-1.

  • Page 26: Local Panel

    User Guide Local Panel The numbered descriptions correspond to the numbered callouts in Figure 2-2. 1. Attention Light – Indicates a condition that may affect imager operation (e.g., imager warming or film low). Check the display for a related message. 2.
  • Page 27 Controls and Indicators 10. Test/Return Button – Multi–Input/Dual Printer systems: Used to initiate a test print. User Settings menus on Standard and Plus systems: Used to return to the Main Menu. 11. Ready Light – Indicates the imager is ready to begin its next operation. 12.

  • Page 28: Local Panel - Main Menu

    User Guide Local Panel – Main Menu The center box displays system status and error messages. The four smaller boxes display labels that indicate the function of the buttons immediately above and below the display. Note that the functions of the buttons vary depending on the type of system.
  • Page 29 Controls and Indicators Test Next Laser Imager Ready 14 x 17 Blue Supply: Printed: 9870 Figure 2-4. Local Panel Main Menu – Multi-Input/Dual Printer Systems The Test button is not displayed or available on an 8500 Dual Printer. Pressing the Test button on an 8700 Dual Printer initiates a density test film print containing a SMPTE test pattern.

  • Page 30: Local Panel - User Settings Menu

    User Guide Local Panel – User Settings Menu Note The Local Panel User Settings Menu applies only to 8700/8500 Standard and Plus systems. For Multi–Input 8700/8500 Dual Printer systems, refer to the 8800 Multi–Input Manager User Guide for instructions on setting contrast and density and printing test films.
  • Page 31 Controls and Indicators Return Next User 1 Contrast: 8 Selected Item DMAX: 2.90 Menu Items Contrast Test Density Test – Figure 2-5. User Settings Menu – Contrast Setting Selected Return Next User 1 Contrast: 8 DMAX: 2.90 Menu Items Contrast Test Selected Item Density Test Print...

  • Page 32: Dryview 8700/8500 Keypad (Used Only On 8700/8500 Standard Systems.)

    User Guide DryView 8700/8500 Keypad Note The DryView 8700/8500 Keypad is used only on 8700/8500 Laser Imager Standard systems. The numbered descriptions correspond to the numbered callouts in Figure 2-7. 1. Display – Displays system status information. 2. Stop Key – Stops the most recently queued print job. The job, including any unprinted multiple copies, is deleted from the print queue.
  • Page 33 Controls and Indicators READY Film:125 Queue:90 Next:1/20 Copies:9 –––––––––––––––––––– Erase Light Copies Stop Print Acquire Figure 2-7. DryView 8700/8500 Keypad 2001 March Rev. B 8599110...

  • Page 34: Kodak Keypad (Used On 8700/8500 Standard And Plus Systems And On Multi-Input/Dual Printer Systems.)

    User Guide Kodak Keypad Note The Kodak Keypad is used on 8700/8500 Laser Imager Standard and Plus systems and on Multi–Input/Dual Printer systems. The numbered descriptions correspond to the numbered callouts in Figure 2-8. 1. Touch Screen – Displays a variety of menus used for system configuration and operation.
  • Page 35 Controls and Indicators Figure 2-8. Kodak Keypad 2001 March Rev. B 8599110 2-11...

  • Page 36: Kodak Keypad - Main Menu

    User Guide Kodak Keypad – Main Menu The numbered descriptions correspond to the numbered callouts in Figure 2-9. 1. Attention Message Area – Displays system status and error messages. 2. Imager Information Area #1 – Indicates the status (active or OFF) of Automatic Image Quality Control (AIQC) and the percentage of free image memory.
  • Page 37 Auto Print ON Media: 14 X 17 Auto Format ON Supply: 125 Queued: 10 Printed: 1231 Imager Copies: 2 Menu Keypad Format Stop Menu Menu Print ERASE PRINT Figure 2-9. Kodak Keypad – Main Menu 2001 March Rev. B 8599110 2-13...

  • Page 38: Kodak Keypad - Format Menu

    User Guide Kodak Keypad – Format Menu The numbered descriptions correspond to the numbered callouts in Figure 2-10. 1. Attention Message Area – Displays system status and error messages. 2. RETURN Button – Used to return to the Main Menu without selecting a format.
  • Page 39 Controls and Indicators Format Menu Laser Imager 1 Status: Ready CUSTOM CUSTOM CUSTOM CUSTOM FORMAT FORMAT FORMAT FORMAT RETURN Figure 2-10. Kodak Keypad – Format Menu 2001 March Rev. B 8599110 2-15...

  • Page 40: Kodak Keypad - Imager Menu

    User Guide Kodak Keypad – Imager Menu The numbered descriptions correspond to the numbered callouts in Figure 2-11. 1. Attention Message Area – Displays system status and error messages. 2. Contrast, Density, & Count Menu Button – Used to access the Contrast, Density, &...
  • Page 41 Laser Imager 1 Status: Ready Contrast, Density, & Count Menu Print Image Print Contrast Framing Density Test Test Image Image Processing Polarity SMOOTH POSITIVE Output RETURN Imager 1 ERASE PRINT Figure 2-11. Kodak Keypad – Imager Menu 2001 March Rev. B 8599110 2-17...

  • Page 42: Kodak Keypad - Contrast, Density, & Count Menu

    User Guide Kodak Keypad – Contrast, Density, & Count Menu The numbered descriptions correspond to the numbered callouts in Figure 2-12. 1. Attention Message Area – Displays system status and error messages. 2. Reset Printed Count Button – Resets the printed count value to zero (displayed in Imager Information Area #3 on the Main Menu).
  • Page 43 Contrast, Density, & Count Menu K190: Changing the contrast and/or density will affect image quality. Reset Printed Count Contrast 12 DMAX 2.10 RETURN ERASE PRINT Figure 2-12. Kodak Keypad – Contrast, Density, & Count Menu 2001 March Rev. B 8599110 2-19...

  • Page 44: Kodak Keypad - Keypad Menu

    User Guide Kodak Keypad – Keypad Menu The numbered descriptions below correspond to the numbered callouts in Figure 2-13. 1. Attention Message Area – Displays system status and error messages. 2. Display Brightness Set Buttons – Sets the keypad display brightness.
  • Page 45 Controls and Indicators Keypad Menu Laser Imager 1 Status: Ready Color Blind Display Mode Brightness Key Beep Alarm Beep Volume Volume Auto Auto Format Print RETURN ERASE PRINT Figure 2-13. Kodak Keypad – Keypad Menu 2001 March Rev. B 8599110 2-21...
  • Page 46 User Guide BLANK PAGE 8599110 2001 March Rev. B 2-22...

  • Page 47: Operation And Maintenance

    Operation and Maintenance Operation and Maintenance System Power Up 1. Set the imager power switch to ON. The Power light on the local panel comes on. The imager performs a series of self-diagnostic tests and begins a warmup cycle. The time required for warmup varies based on how long the imager has been turned off.

  • Page 48: Format/Acquire/Print - Dryview 8700/8500 Keypad

    (the Print button does not have to be pressed). Note For the DryView 8700/8500 Keypad, the auto–print function is enabled or disabled by service personnel during installation. The user cannot change this setting. 8599110...

  • Page 49: Format/Acquire/Print - Kodak Keypad

    Operation and Maintenance Format/Acquire/Print – Kodak Keypad 1. Set the imager power switch to ON. 2. On the keypad’s Main Menu, press Copy Count Set to select the number of copies desired. 3. Press Format Menu to access the Format Menu.

  • Page 50: Density/Contrast Selection - Local Panel (Applies To 8700/8500 Standard And Plus Systems.)

    User Guide Density/Contrast Selection – Local Panel Note This procedure applies only to 8700/8500 Laser Imager Standard and Plus Systems. For Multi–Input 8700/8500 Dual Printer systems, refer to the 8800 Multi–Input Manager User Guide for instructions on setting contrast and density and for printing test films.

  • Page 51: Density/Contrast Selection - Kodak Keypad (Applies To 8700/8500 Standard And Plus Systems And Multi-Input/Dual Printer Systems.)

    Operation and Maintenance Density/Contrast Selection – Kodak Keypad Note This procedure applies only to 8700/8500 Laser Imager Standard and Plus systems and Multi–Input/Dual Printer systems. 1. Display an image on the user’s console. 2. From the console, adjust the window and level controls to achieve the desired image quality on the display monitor.

  • Page 52: Moving Stored Images - Kodak Keypad

    To exit the move function without moving the image, press the image’s Store button again (or press the Store button of any other stored image). Erasing Stored Images – DryView 8700/8500 Keypad Press Erase to erase images in reverse order, starting with the most recently acquired image.

  • Page 53: Deleting A Job From The Print Queue - Dryview 8700/8500 Keypad

    Operation and Maintenance Deleting a Job from the Print Queue – DryView 8700/8500 Keypad To stop the most recently queued print job, press Stop. The job, including any unprinted multiple copies, is deleted from the print queue. Note You cannot delete multiple jobs from the print queue by pressing the Stop key multiple times.

  • Page 54: Loading/Unloading Film

    User Guide Loading/Unloading Film 1. If the supply door is not already open, press Supply on the local panel. 2. To remove the film cartridge, lift the edge of the cartridge slightly, then slide the cartridge out of the imager. 3.

  • Page 55: Cleaning The Platen

    Operation and Maintenance Cleaning the Platen The platen is the inside bottom surface of the exposure module. Over time, this surface can collect dust. This dust can create artifacts on printed images. Supplies Required 3M Auto-Pak Tack Cloth (60-9800-0888-6) Procedure 1.
  • Page 56 User Guide 7. Close the platen access door after cleaning. Turn the handle fully clockwise to latch the door. 8. Install the film cartridge. 9. Close the left door and supply door. 10. Plug in the power cord and power up the imager. Handle Platen Access Door Figure 3-3.

  • Page 57: Replacing The Developer Filter

    Operation and Maintenance Replacing the Developer Filter Kodak DryView Laser Imaging Film emits a slight odor when it is developed. The developer filter absorbs and neutralizes this odor. As the filter ages, it becomes slightly less effective. If odor becomes noticeable, replace the filter as follows: 1.
  • Page 58 User Guide BLANK PAGE 8599110 2001 March Rev. B 3-12...

  • Page 59: Troubleshooting

    Status messages are strictly informational and require no operator action. Note The DryView 8700/8500 Laser Imager displays a local panel status message (P550) when preventive maintenance and cleaning are recommended. Preventive maintenance and cleaning ensure optimum imager performance. The P550 message will not interfere with normal operation.

  • Page 60: Local Panel Error Message Table

    User Guide Local Panel Error Message Table This table lists all local panel error message numbers. When an error message is displayed on the local panel, perform the operator action listed next to the message number. If the listed action does not clear the error message, call for service. This table does not include status or action messages.
  • Page 61 Troubleshooting Message Operator Action Number P228 Open the left door. Grasp the transport handle and slide the transport out of the imager, then slide it back in until it latches. P229 Use the mechanical release to open the supply door (refer to page 4-14).

  • Page 62: Kodak Keypad Error Message Table

    This table lists all Kodak Keypad error message numbers. When an error message is displayed on the Kodak Keypad, perform the operator action listed next to the message number. If the listed action does not clear the error message, call for service.

  • Page 63: Dryview 8700/8500 Keypad Error Message Table

    Troubleshooting DryView 8700/8500 Keypad Error Message Table This table lists all DryView 8700/8500 Keypad error messages. When an error message is displayed on the DryView 8700/8500 Keypad, perform the operator action listed next to the message. If the listed action does not clear the error message, call for service.

  • Page 64: Removing Jams From Area 1

    User Guide Removing Jams from Area 1 Note When jams occur in Area 1, the film cartridge does not close. If the left door is opened, the top sheets of film in the cartridge will be exposed. To minimize the number of exposed sheets, darken the room before opening the left door.

  • Page 65: Removing Jams From Area 2A

    Troubleshooting Removing Jams from Area 2a 1. Open the left door (the imager automatically unlocks the door). 2. Squeeze the transport handle and slide the assembly out of the imager. 3. Push in the lever at the bottom of the transport. The film should drop out of the transport;...

  • Page 66: Removing Jams From Area 2B

    User Guide Removing Jams from Area 2b 1. Open the left door (the imager automatically unlocks the door). 2. Squeeze the transport assembly handle and slide the assembly out of the imager. 3. Turn the knob on the side of the transport clockwise to drive the film out the top of the transport.

  • Page 67: Removing Jams From Area 3

    Troubleshooting Removing Jams from Area 3 1. Open the left door (the imager automatically unlocks the door). 2. Open the platen access door (turn the handle counterclockwise and push the door in). 3. Reach into the platen and remove the jammed film. Note If there is no film in the platen, check for the film in Area 2a (refer to page 4-7).

  • Page 68: Removing Jams From Area 4

    User Guide Removing Jams from Area 4 1. Raise the top cover to its highest position, then lower it slightly to engage the support rod. 2. Grasp the developer/exit assembly handle and lift up to unlatch it, then slide the assembly out of the imager.
  • Page 69 Troubleshooting Top Cover Developer Cover Support Rod Support Arm Release Lever Figure 4-5. Removing Jams from Area 4 2001 March Rev. B 8599110 4-11...

  • Page 70: Removing Jams From Area 5

    User Guide Removing Jams from Area 5 1. Raise the top cover to its highest position, then lower it slightly to engage the support rod. 2. Remove the jammed film. 3. Raise the the top cover slightly, push the support rod backward, then carefully close the cover.

  • Page 71: Manually Closing The Film Cartridge

    Troubleshooting Manually Closing the Film Cartridge The imager automatically closes the film cartridge when Supply is pressed, when the cartridge is empty, and when film jams occur in the expose or transport areas. If the imager cannot close the cartridge, a P177 error message is displayed. Note If doors are opened when the film cartridge is open, the top sheets of film will be exposed.

  • Page 72: Unlocking The Left Door And Supply Door Via Mechanical Releases

    User Guide Unlocking the Left Door and Supply Door Via Mechanical Releases Note When the left door is unlocked via its mechanical release, the film cartridge stays open, and the top sheets of film in the cartridge are exposed. To minimize the number of exposed sheets, darken the room before opening the left door.
  • Page 73 Troubleshooting Supply Door Release Left Door Release Figure 4-8. Left Door and Supply Door Mechanical Releases 2001 March Rev. B 8599110 4-15...
  • Page 74 User Guide BLANK PAGE 8599110 2001 March Rev. B 4-16...

  • Page 75: Specifications

    Specifications Specifications Dimensions Height: 1279 mm (50.4 in.) – Top Cover closed 1641 mm (64.6 in.) – Top Cover open Width: 661 mm (26.0 in.) – Left Side Door closed 1218 mm (47.9 in.) – Left Side Door open Depth: 813 mm (32.0 in.) –...

  • Page 76: Dryview 8700/8500 Laser Imager Storage Environment

    User Guide DryView 8700/8500 Laser Imager Storage Environment Temperature: –35° to 60°C (–31° to 140°F) Humidity: 10% to 90% RH, Noncondensing Host Control RS232 or RS422 (jumper selectable) connection to imager or UKEIB. Can be located up to one kilometer (3280 feet) from imager when using a UKEIB and fiber cable.

  • Page 77: Technical Information

    It is not recommended, but if you remove undeveloped film from the daylight load package, you will need a darkroom setting and a green safelight, such as the Kodak IR Safelight. Sensitometric Characteristics RELATIVE LOG EXPOSURE 2001 March Rev.

  • Page 78: Image Quality

    When using the Kodak DryView 8700/8500 Laser Imager, information on each film cartridge will allow the system to automatically determine film type, the number of sheets remaining, and the film manufacturing lot. The AIQC uses this information to automatically calibrate the imager’s electronics and optimize image quality without...

  • Page 79: Less Impact On The Environment

    Technical Information Less Impact on the Environment Disposal regulations and procedures for “wet” processing chemistry are time-consuming and expensive. And even with the most exacting procedures, the potential to discharge hazardous materials into the environment exists. Tests show that DryView Laser Imaging film is not considered hazardous to the environment.

  • Page 80: Storage And Handling Of Undeveloped Film

    Transit temperatures above 95°F/35°C will gradually diminish shelf life. If the Kodak Automatic Image Quality Control system (AIQC) encounters film that has been damaged by improper handling, it will automatically alert system operators before the film is developed.

  • Page 81: Archivability Of Developed Film

    Odor Dissipation The “wet” chemistry associated with the development of silver halide film creates strong, unpleasant odors. By eliminating “wet” chemistry, Kodak DryView technology eliminates virtually all of these odors. While some low-level odors are produced during the development process, they pose no known adverse health risks.

  • Page 82: Film Recycling

    If you are interested in recycling and silver recovery, Kodak can provide your local recyclers with the information they need to get started. In some countries, Kodak has established national contracts with recycling firms.
