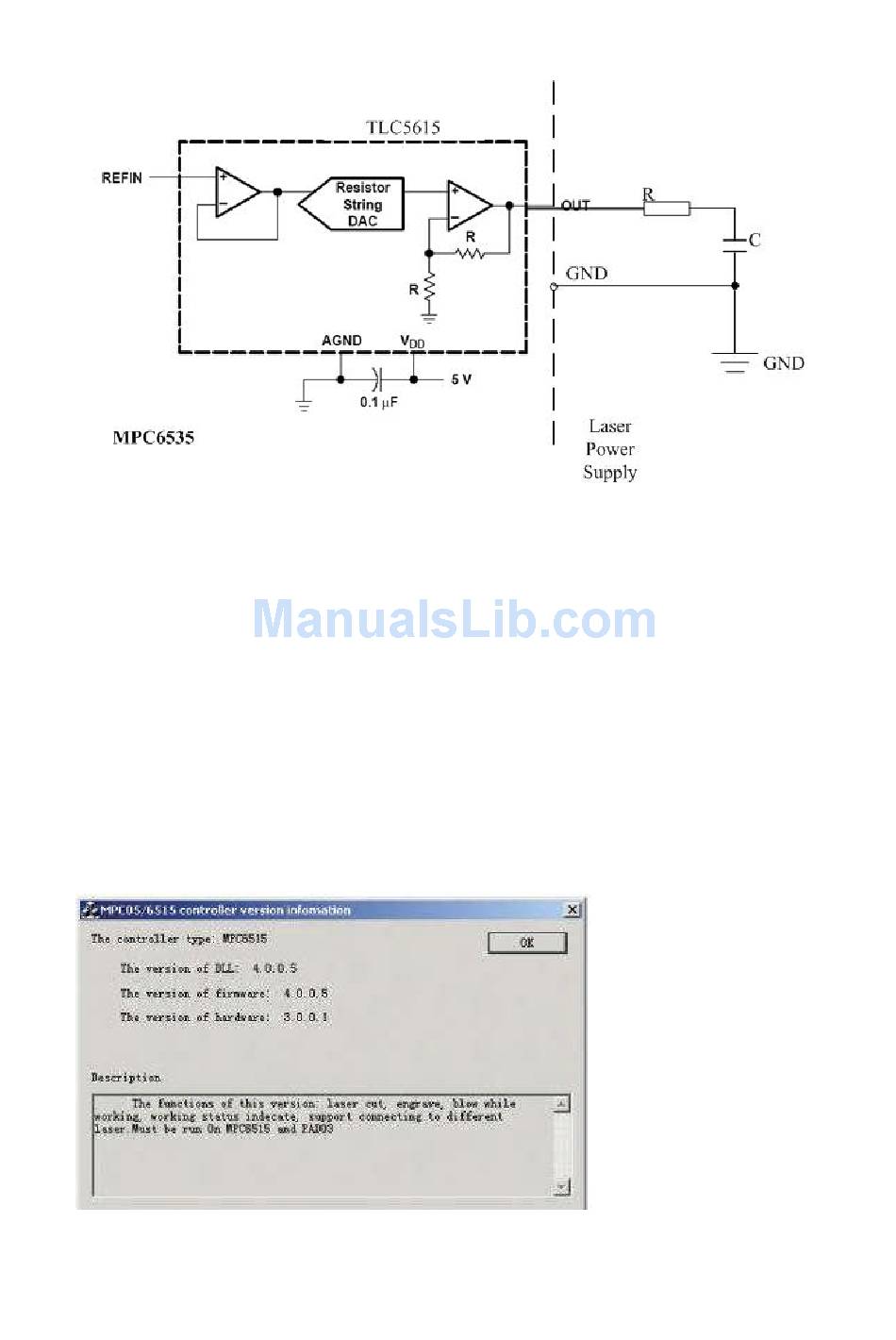

3.4.6 Laser Power DAC Interface

3.5 Wiring Instruction

1. Must be careful with the positive and the negative end of 24VDC
2. Connecting controller and drive
3. Connecting Datum Switch
4. Connecting Limit Switch
5. Connecting laser power supply
6. Connecting other control ports

4. Tune and Test

4.1 run the program, name Mpc05Ver+M05.exe to check the version as below
The firmware version should be as same as DLL version. If not, please update. For details, refer
to LaseCut manual.
- 7 -
