Thanks for choosing Leetro' s product.
You are required to read through this manual carefully before using MPC6535.
MPC6535 is designed exclusively for the laser equipment. This high-performance
controller is based on the hardware solution of DSP+FPGA.

1. Packing List

Please check out the pack with below list. If there is something broken or lost, please contact you
supplier instantly.
No Part Name
1 MPC6535
2 USB-AB-3M
3 PAD03-E
4 C4-PAD03-1.5M
5 U-disk
6 Dongle-white
7 STD-01
8 PAD03-TR
9 PAD03-C

2. Quick Start

2.1 Run the setup.exe and follow the " next step"instruction to install LaserCut program into your
computer.
2.2 Install MPC6535 controller board: mounting the board in the machine firmly. Must make the
machine house wires with GROUND!

3. Wiring Diagram

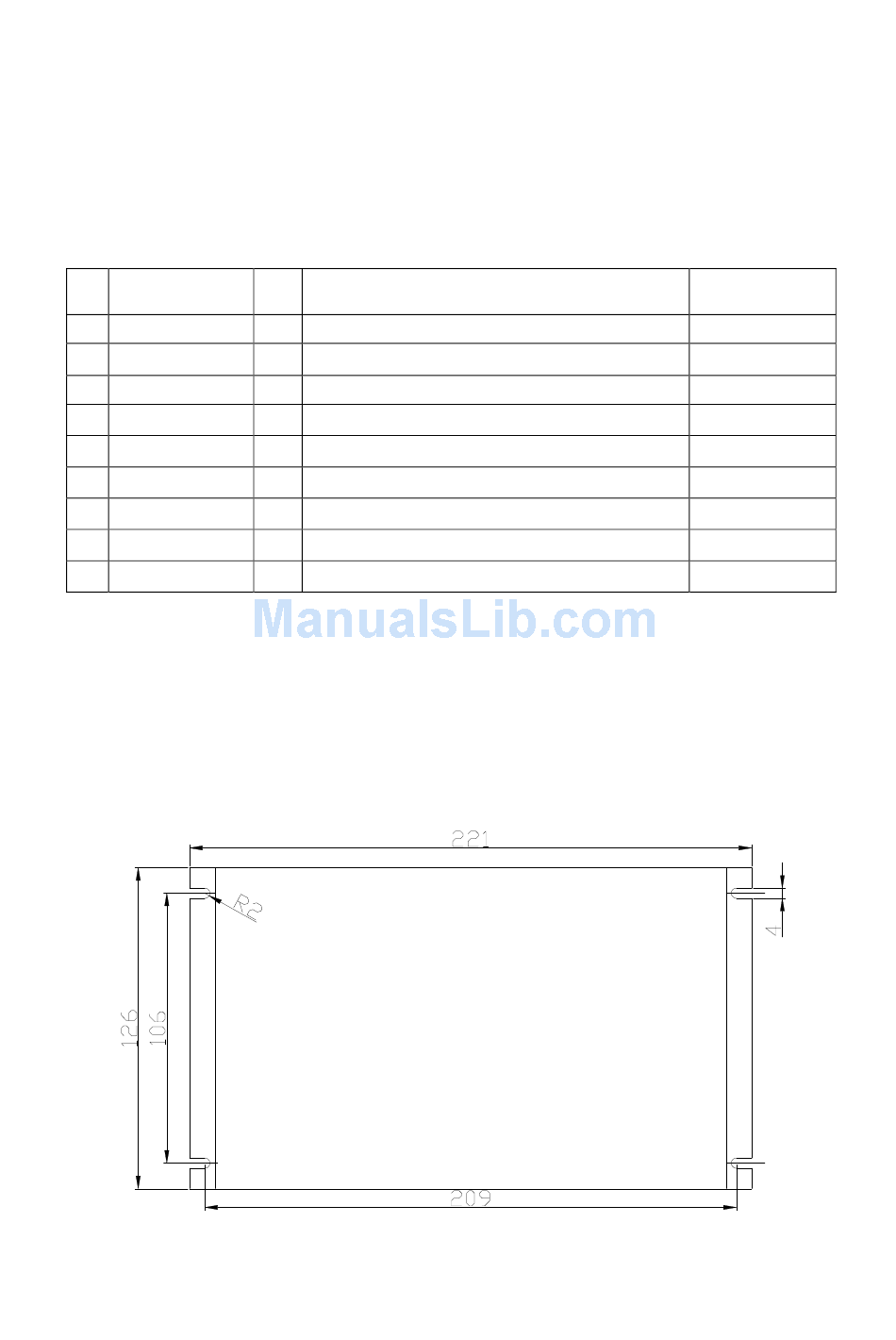

3.1 Size (mm)
PCS
1 Controller board with Aluminum case
1 Cable connected between PC and the MPC6535
1 Operation panel with English interface
1 Cable connected between PAD03 and the MPC6535
1 USB flash memory disk
1 LaserCut software key
1 Single converter module (single-ended to differential)
1 Operation Panel with Turkish interface
1 Operation panel with Chinese interface
Description Standrad/Optional
S
S
S
S
S
S
O
O
O
