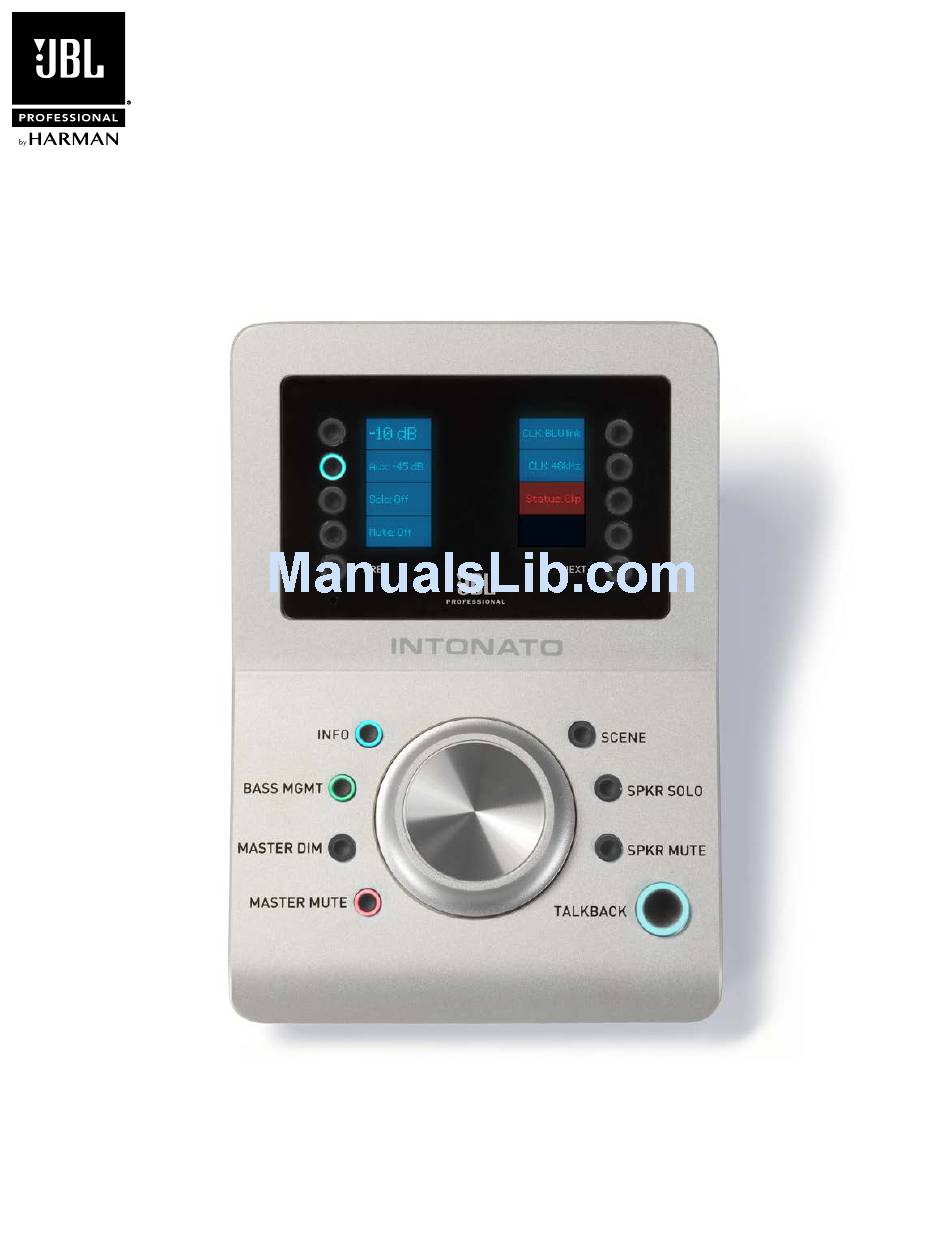

- Page 1 INTONATO DC Monitor Management Desktop Controller Operation Manual...
-
Page 2: Table Of Contents
Overview ���������������������������������������������������������������������������4 Attribution Notices ��������������������������������������������������������27 Supplying Power and Connecting to the Network ��������6 Warranty & Service ��������������������������������������������������������28 Supplying Power to the Intonato DC �������������������������������������6 Contact Information ������������������������������������������������������29 Connecting to a Wired Network Switch ���������������������������������7 Connecting to a Wired Network Router ���������������������������������8 Connecting to a Wi-Fi Network Router ����������������������������������9... -
Page 3: Introduction
JBL Intonato 24—a powerful, sophisticated speaker management processor and monitor controller for audio recording, post production, and broadcast facilities. With support for mono up to immersive surround formats, the Intonato 24 and Intonato DC provide the centerpiece for a scalable audio production monitoring system. -
Page 4: Overview
Power to the Intonato DC” on page 6 for more information. NOTE: A DHCP server is required on the network to assign the Intonato DC an IP address. 2. LCD & OPTION Buttons When performing certain Intonato DC functions, such as muting or soloing specific speaker outputs or recalling scenes, options will appear in the LCD and the corresponding OPTION buttons are used to make selections. - Page 5 When the Intonato 24 is configured for talkback functionality, pressing and holding this button will activate the talkback mic for as long as the button is held. When talkback is enabled, the signal from the Intonato 24’s XLR mic input will be fed to the stereo aux output. INTONATO DC Operation Manual Page 5...
-
Page 6: Supplying Power And Connecting To The Network
NOTE: PoE+ (IEEE 802.3at-compliant) devices are backwards compatible with the IEEE 802.3af standard and can also be used with the Intonato DC. There are two types of PoE/PoE+ devices that can be used to supply power to the Intonato DC: •... -
Page 7: Connecting To A Wired Network Switch ���������������������������������7 Contact Information
5. Give the Intonato DC time to negotiate with the network so it can be assigned an IP address— this can take a few minutes. The Boot menu can be used to verify that the Intonato DC is being assigned an IP address by the DHCP server. See “Using the Boot Menu” on page 19 for more information. -
Page 8: Connecting To A Wired Network Router
5. Give the Intonato DC time to negotiate with the network so it can be assigned an IP address— this can take a few minutes. The Boot menu can be used to verify that the Intonato DC is being assigned an IP address by the DHCP server. See “Using the Boot Menu” on page 19 for more information. -
Page 9: Connecting To A Wi-Fi Network Router
5. Give the Intonato DC time to negotiate with the network so it can be assigned an IP address— this can take a few minutes. The Boot menu can be used to verify that the Intonato DC is being assigned an IP address by the DHCP server. See “Using the Boot Menu” on page 19 for more information. -
Page 10: Installing The Jbl Intonato Control App
Installing the JBL Intonato Control App Installing the JBL Intonato Control App The free JBL Intonato control app is used to pair the Intonato DC to the Intonato 24 for control. It is available for compatible Android, iOS, Mac, and Windows devices. -
Page 11: Controlling An Intonato 24 Device
Controlling an Intonato 24 Device Controlling an Intonato 24 Device Follow these steps to pair the Intonato DC with an Intonato 24 for control: 1. Launch the JBL Intonato control app. 2. Press the Connect button for the Intonato 24 that will be controlled. - Page 12 Controlling an Intonato 24 Device 4. Press the Connect button on the Intonato DC to pair it with the connected Intonato 24 for control. 5. Select the desired LCD and button brightness using the Brightness dropdown menu (4=brightest, 1=dimmest). In most cases, it is recommended that a high Brightness setting be used (e.g., 4), as this will allow a higher contrast between active and inactive LED states.
-
Page 13: Operating The Intonato
Operating the Intonato DC Operating the Intonato DC The Info Screen The Info screen is the first screen displayed after boot up. Press the INFO button to return to the Info screen at CLK: CLK: any time. -21.0dB -21.0dB Internal... -
Page 14: Dimming The System
Operating the Intonato DC Dimming the System Press the MASTER DIM button to dim the speaker system by the dim level amount configured in the CLK: CLK: Intonato 24 device. -21.0dB -21.0dB Internal Internal CLK: CLK: Aux: -9dB Aux: -9dB... -
Page 15: Adjusting System Volume
Operating the Intonato DC Adjusting System Volume From the Info screen, turn the ROTARY control to raise and lower the system’s volume. The display will provide CLK: CLK: an SPL value in decibels. -21.0dB -21.0dB Internal Internal CLK: CLK: Aux: -9dB... -
Page 16: Muting Individual Speakers
Operating the Intonato DC Muting Individual Speakers Press the SPKR MUTE button; then use the PREV , NEXT , and OPTION buttons to select the speaker CLK: outputs to mute. -21.0dB Speaker 1 Speaker 5 Internal CLK: Aux: -9dB Speaker 2... -
Page 17: Recalling Scenes
Operating the Intonato DC Recalling Scenes Press the SCENE button; then use the PREV , NEXT , and OPTION buttons to select the desired scene to CLK: recall. -21.0dB -20dB Scene 4 Internal CLK: Aux: -9dB Scene 1 Scene 5... -
Page 18: Using Talkback
Operating the Intonato DC Using Talkback Press and hold the TALKBACK button to enable talkback. This is a momentary button, so the talkback CLK: CLK: mic will remain active for as long as the TALKBACK -21.0dB -21.0dB Internal Internal CLK:... -
Page 19: Using The Boot Menu
Mute: Off Firmware Version NOTE: When performing the factory reset, all settings in the Intonato DC will be reset (i.e., any static IP address settings and connection to the Intonato 24 device). This means that the controller will need to be reconnected to the Intonato 24 device using the JBL Intonato control app. However, note that performing this factory reset will not affect the programming in the Intonato 24 device. -
Page 20: Updating Firmware
Updating Firmware Updating Firmware Intonato DC firmware can be updated via the JBL Intonato control app and an Internet connection. Follow these steps to update the firmware: 1. From the Main User Menu in the JBL Intonato control app, select ”Desktop Controller”. -
Page 21: Networking
In a typical home network, the router provides the “gateway” connection between the local area network (LAN) and Internet (WAN) so they can communicate. A gateway can translate between one network system or protocol and another. INTONATO DC Operation Manual Page 21... -
Page 22: Network Security
IP address by using the Boot menu (see “Using the Boot Menu” on page 19 ). If either the Intonato 24 or Intonato DC still do not have an IP address, or a network connection still cannot be established, go to the next step. - Page 23 IP or Auto-IP (169.254.xx.yy) address. Check the IP addresses of the router, control device, Intonato 24, and Intonato DC and ensure they all have the same Network ID. Once all Network IDs are confirmed to match, try reconnecting with the JBL Intonato control app.
-
Page 24: Using Hiqnet ® Netsetter
ID”). If a device ID conflict occurs, edit one of the device ID addresses to resolve the conflict For more information on using NetSetter, click on the help icon in the upper right-hand corner of the NetSetter window. INTONATO DC Operation Manual Page 24... -
Page 25: Dimensions
0.952” (24.181mm) 0.100” (2.54mm) 4.700” CLK: (119.38mm) -21.0dB Internal CLK: Aux: -9dB 48000Hz Solo: Off Status: Ok Mute: Off CLK: -21.0dB Internal CLK: Aux: -9dB 48000Hz Solo: Off Status: Ok Mute: Off 6.734” (171.044mm) INTONATO DC Operation Manual Page 25... -
Page 26: Specifications
72.0mm (H) 117.0mm (L) x 119.4mm (W) Shipping Carton Dimensions: 5.75” (H) x 8.75” (L) x 7” (W) 146 mm (H ) x 222.25 mm (L) x 177.8 mm (W) Specifications subject to change without notice. INTONATO DC Operation Manual Page 26... -
Page 27: Attribution Notices
NETGEAR and ProSafe are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Dell and PowerConnect are trademarks and/or registered trademarks of Dell Inc. in the United States and/or other countries. INTONATO DC Operation Manual Page 27... -
Page 28: Warranty & Service
Who Pays for What? JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original shipping cartons because a charge will be made if replacement cartons are requested. - Page 29 On the World Wide Web: www.jblpro.com Professional Contacts, Outside the USA: Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website: www.jblpro.com En Dehors des Etats-Unis: Contacter votre Distributeur JBL Professional. Une liste complète de nos distributeurs internationaux est disponible sur le site web: www.jblpro.com...
