7.2.2 Input Settings

Click Input Settings on the left navigation bar to enter the Input List interface:
Editing a Camera
By selecting a camera from the list and clicking the
stream type.
Setting a Camera Group
1. Click the Group button on the Input List to enter the Input Group interface:
2. Select the Group No. and edit the cycle time in the given text filed, and click Set button.
3. Click the Add Camera key to enter the Add Camera interface:
4. Select the cameras from the list to be added to the group, and then click Add to finish the setting.
DS-1100KI Network Keyboard User Manual

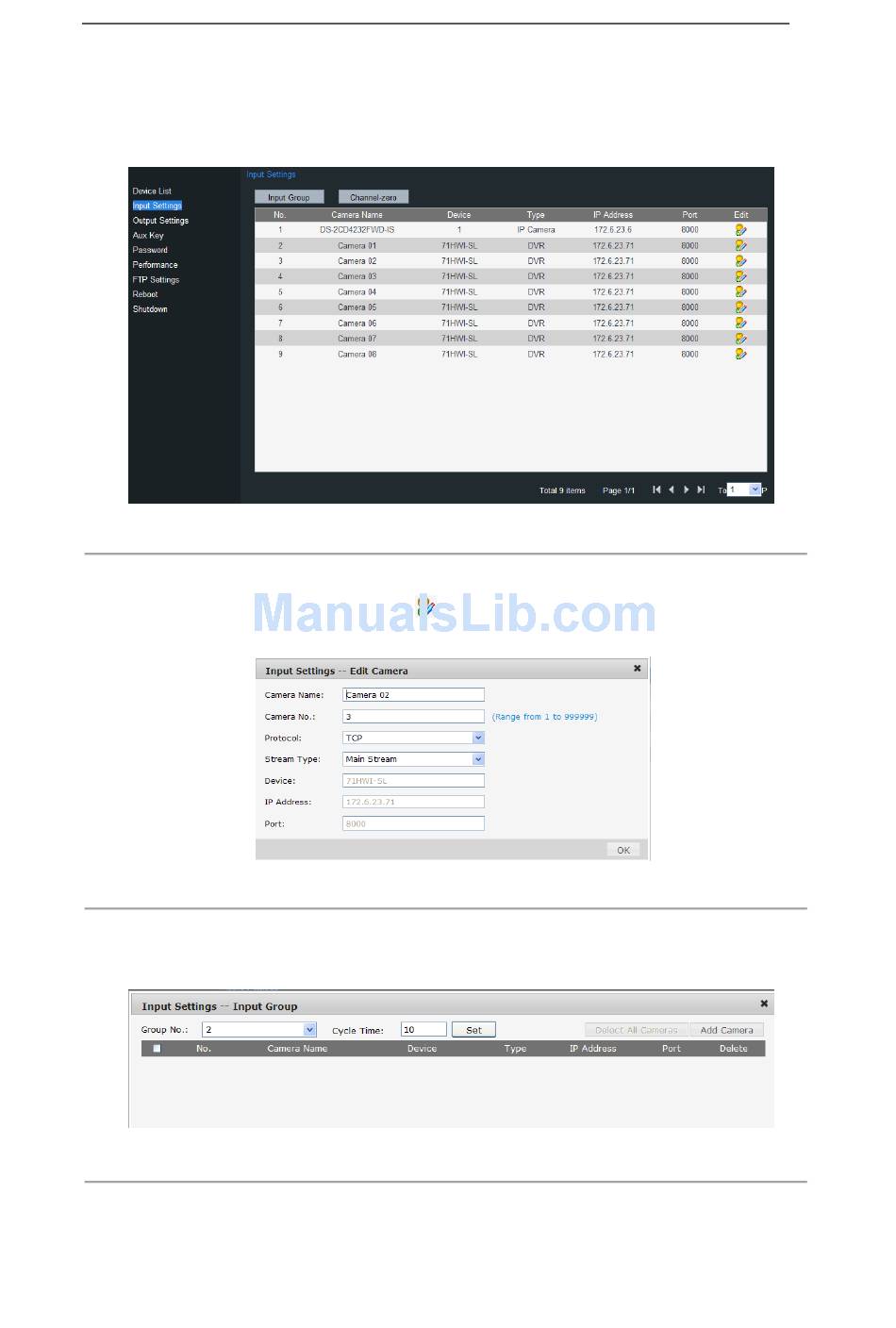

Figure 7. 22 Input Settings
icon, you are allowed to edit its name, No., protocol and
Figure 7. 23 Editing a Camera
Figure 7. 24 Setting a Camera Group
