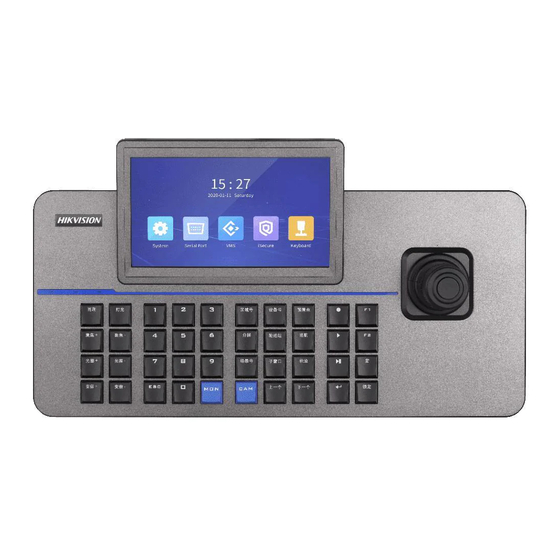

HIKVISION DS-1105KI User Manual

Network keyboard
Hide thumbs Also See for DS-1105KI:
Table of Contents

Advertisement

Quick Links

Download this manual
DS-1105KI Network Keyboard
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-1105KI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-1105KI

Summary of Contents for HIKVISION DS-1105KI

  • Page 1 DS-1105KI Network Keyboard User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 DS-1105KI Network Keyboard User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER...
  • Page 4 DS-1105KI Network Keyboard User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-1105KI Network Keyboard User Manual purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: http://www.recyclethis.info . 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
  • Page 6 Before using the product, please read the user manual carefully and keep it for future reference. Data Acquisition Visit our website (http://www.hikvision.com/) for user manuals, application tools and development materials. Applicable Model This manual is applicable to DS-1105KI Network Keyboard.
  • Page 7 DS-1105KI Network Keyboard User Manual Operation Description Press Number + REGION • Press a numeric button and REGION button to select a region. • Number represents region ID. Go to region menu for the ID. Press Number + WIN • Press a numeric button and WIN button to select a sub-window.
  • Page 8 DS-1105KI Network Keyboard User Manual Safety Instructions Danger • This equipment is not suitable for use in locations where children are likely to be present. • Do not ingest battery. Chemical burn hazard! • This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

  • Page 9: Table Of Contents

    DS-1105KI Network Keyboard User Manual Contents Chapter 1 Product Introduction ....................1 Chapter 2 Activation ........................2 2.1 Local Menu Activation ......................2 2.2 SADP Activation ........................3 2.3 Web Activation ........................3 Chapter 3 Network ........................4 Chapter 4 Keyboard ........................5 4.1 Login ............................
  • Page 10 DS-1105KI Network Keyboard User Manual 4.6.3 Camera Group ......................21 4.7 User Management ....................... 23 4.8 Video Recorder ........................24 4.8.1 Remote Panel ......................24 4.8.2 Live View ........................27 4.8.3 PTZ Control ........................27 4.8.4 Playback ........................27 4.9 Connect the Device Through Serial Ports ................28 4.9.1 Connect Video Recorders ....................
  • Page 11 DS-1105KI Network Keyboard User Manual 6.4 Video Wall Operation ......................40 6.4.1 Region Configuration ....................40 6.4.2 Video Wall Control ...................... 41 6.4.3 PTZ Operation ......................41 6.5 Video Wall Playback ......................41 Chapter 7 System ........................42 7.1 Language ..........................42 7.2 Hardware ..........................
  • Page 12 DS-1105KI Network Keyboard User Manual 8.6 System Settings ........................52 8.6.1 Version ........................52 8.6.2 User Management ...................... 52 8.6.3 System Maintenance ....................54 8.6.4 Log Management ......................55 8.6.5 Security Settings ......................55...

  • Page 13: Chapter 1 Product Introduction

    DS-1105KI Network Keyboard User Manual Chapter 1 Product Introduction DS-1105KI is a network keyboard independently developed by Hikvision. It features in 7-inch full view multi-touch LCD screen and four-dimensional joystick. It supports network access to DVR, DVS, NVR, network camera, network dome, video integrated platform, decoder, iSecure, HikCentral and other platform software, with powerful functions and quick and simple operations.

  • Page 14: Chapter 2 Activation

    DS-1105KI Network Keyboard User Manual Chapter 2 Activation You can activate network keyboard via local menu, SADP client or Web interface. 2.1 Local Menu Activation For the first-time access, you need to activate the network keyboard by setting an admin password.

  • Page 15: Sadp Activation

    DS-1105KI Network Keyboard User Manual 2.2 SADP Activation SADP software is used for detecting the online device, activating the device, and resetting its password. Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts.

  • Page 16: Chapter 3 Network

    DS-1105KI Network Keyboard User Manual Chapter 3 Network Network parameters must be properly configured before you can add network devices and operate the network keyboard over network. Steps 1. Go to System → Network . 2. Configure network parameters. - Enable DHCP to obtain IP settings automatically.

  • Page 17: Chapter 4 Keyboard

    DS-1105KI Network Keyboard User Manual Chapter 4 Keyboard Keyboard mode is mainly applied to small-sized surveillance projects. Network keyboard works as a control center and manages surveillance devices in it. 4.1 Login Steps 1. Tap Keyboard at home page. Figure 4-1 Login 2.
  • Page 18 DS-1105KI Network Keyboard User Manual Figure 4-2 Device Management 2. Tap Center Device or IPC/IP Dome as desired. 3. Tap 4. Enter device IP address, port, user name, and password. Note • The device name is obtained automatically or can be configured as required.
  • Page 19 DS-1105KI Network Keyboard User Manual Figure 4-3 Add Center Device...

  • Page 20: Add In Batches

    DS-1105KI Network Keyboard User Manual Figure 4-4 Add Network Camera 4.2.2 Add in Batches Add Online Devices in Batches You can add the devices with the same user name and password in batches. Steps 1. Go to Keyboard → Device .

  • Page 21: Local Live View

    DS-1105KI Network Keyboard User Manual Figure 4-6 Online Devices 3. Check the devices to be added and tap 4. Enter user name and password. 5. Tap Add. Import Input Channels in Batches The information of added input channel can be generated into an excel file and exported to the USB flash drive for backup.

  • Page 22: Preview By Operating Keyboard Shortcut

    DS-1105KI Network Keyboard User Manual 4.3.2 Preview by Operating Keyboard Shortcut Press the keys of the keyboard to preview the input channel. Steps 1. Press 0+MON. 2. Preview the channel as desired. • Press Num+CAM to preview the signal of the corresponding channel.

  • Page 23: Ptz Control

    DS-1105KI Network Keyboard User Manual Note • You can preview the channel with up to 4K resolution. • Press Num+CAM to control PTZ without previewing images from speed domes. • The captured image and the recording can be saved in USB flash drive or uploaded to FTP server.
  • Page 24 DS-1105KI Network Keyboard User Manual Steps 1. Preview speed dome image. For detailed steps, see Preview by Operating Touchscreen and Preview by Operating Keyboard Shortcut . 2. Set a preset. 1) Tap 2) Tap Preset. 3) Rotate the joystick to move PTZ to a desired position.

  • Page 25: Video Wall

    DS-1105KI Network Keyboard User Manual 5) Rotate the joystick to control PTZ. The movement will be recorded. 6) Tap to save the pattern. 3. Tap to call the pattern. 4.4 Video Wall 4.4.1 Video Wall Configuration Configure Region Divide a video wall into several regions to manage video wall by region.
  • Page 26 DS-1105KI Network Keyboard User Manual Link Output Channel to Video Wall Steps 1. Tap of region to configure. Figure 4-10 Region Configuration 2. Tap of a grid. 3. Select a decoding device and select its output channel. 4. Tap OK to finish setting.

  • Page 27: Video Wall Control

    DS-1105KI Network Keyboard User Manual Figure 4-11 Add Output 4.4.2 Video Wall Control Layout Operation Select a monitor to open, close, resize, and divide windows. Steps 1. Press Num+REGION. 2. Tap to select a monitor. 3. Operate the window as desired.
  • Page 28 DS-1105KI Network Keyboard User Manual Divide window Press Num+MON and press Num+MULT to divide the window. Expand/ Press Num+MON, press Num+WIN to select a sub-window, and press F2 restore sub- to expand the sub-window to cover the whole monitor. Press F2 again to window restore the sub-window.

  • Page 29: Ptz Control

    DS-1105KI Network Keyboard User Manual Figure 4-12 Scene Table 4-2 Icon Description Icon Description Switch scene. Save scene. - Press Num+SCENE to switch scenes. 4.4.3 PTZ Control You can control the added speed dome, like control PTZ movement, turn on/off light, turn on/off wiper, zoom in/out, increase/decrease focus, increase/decrease iris, set/call preset, patrol and pattern.

  • Page 30: Playback

    DS-1105KI Network Keyboard User Manual Figure 4-13 Create Macro 3. Enter macro name. 4. Press keyboard buttons to enter commands. Note You can add up to 256 keys in one macro. A number may contain several keys, e.g., 369 contains 3 keys.

  • Page 31: Video Wall Playback

    DS-1105KI Network Keyboard User Manual Playback by Time Steps 1. Start local live view. For detailed steps, see Preview by Operating Touchscreen and Preview by Operating Keyboard Shortcut . 2. Tap 3. Tap By Time. 4. Select a day in calendar.

  • Page 32: Channel Management

    DS-1105KI Network Keyboard User Manual Steps 1. Start video wall live view. For detailed steps, see Window Operation . 2. Press to start playing the video within 5 minutes. Or tap , tap Instant, and select the playback time. Playback by Time Steps 1.

  • Page 33: Output Channel

    DS-1105KI Network Keyboard User Manual The unique identification for input channel. It is valid in local and video wall live view mode. Stream The stream to preview in local and video wall live view mode. Protocol It is valid for video wall preview.
  • Page 34 DS-1105KI Network Keyboard User Manual Figure 4-16 Camera Group 2. Tap Figure 4-17 Add Camera Group 3. Enter group name and interval. Interval: The time to dwell in each input channel before switching to next channel. 4. Tap OK. 5. Add input channel to camera group.

  • Page 35: User Management

    DS-1105KI Network Keyboard User Manual Note • Up to 16 camera groups can be added. • Each camera group can link up to 64 input channels. • Interval range: 10 to 65535 seconds. • The camera groups set by different users are independent. Namely, users can only view and edit their own camera groups.

  • Page 36: Video Recorder

    DS-1105KI Network Keyboard User Manual letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 37 DS-1105KI Network Keyboard User Manual Table 4-4 Button Description Button Description Disable PTZ Exit PTZ control mode. Numeric Key • In editing mode, tap it to enter number 1 to 16. • In live view or PTZ mode, tap it to switch channel.
  • Page 38 DS-1105KI Network Keyboard User Manual Button Description • Left (corresponds to in playback menu): Tap it to switch to previous file/event/tag/day. • Right (corresponds to in playback menu): Tap it to switch to next file/event/tag/day. Enter • Confirm an operation.

  • Page 39: Live View

    DS-1105KI Network Keyboard User Manual Button Description ZOOM- Zoom out. FOCUS- Decrease focus. IRIS- Decrease iris. Directional Button Control PTZ movement. Enter In auto-scan mode, tap it to stop/resume auto-scan. 4.8.2 Live View Video Recorder (Version before 4.0) Whatever interface the video recorder is in, tap ESC till you enter the live view mode.

  • Page 40: Connect The Device Through Serial Ports

    DS-1105KI Network Keyboard User Manual 4.9 Connect the Device Through Serial Ports The network keyboard can be connected to the device through RS-232 and RS-485 serial port. After the connection, the keyboard can be used to control the video recorder, analog dome and analog matrix.

  • Page 41: Connect Analog Matrix

    DS-1105KI Network Keyboard User Manual Figure 4-22 Connect Video Recorder (PTZ Disabled) Figure 4-23 Connect Video Recorder (PTZ Enabled) 4.9.2 Connect Analog Matrix The keyboard can be connected to the analog matrix through RS-232 serial port. Steps 1. Connect the analog matrix to the RS-232 interface on the keyboard.

  • Page 42: Connect Analog Dome

    DS-1105KI Network Keyboard User Manual Figure 4-24 Setting Parameters of RS232 Serial Port 5. Optional: Switch one input port of the analog matrix to the output port. 1) Part of the analog matrix needs to enter the device number in the keyboard.
  • Page 43 DS-1105KI Network Keyboard User Manual Figure 4-25 Setting Parameters of RS485 Serial Port 5. Press NUM+CAM and select analog dome. Note One RS-485 serial port can be connected to multiple analog domes. The longer the serial port cable is, the fewer analog dome can be connected at the same time.

  • Page 44: Chapter 5 Isecure Mode

    DS-1105KI Network Keyboard User Manual Chapter 5 iSecure Mode 5.1 Login Steps 1. Tap iSecure at home page. Figure 5-1 Log in to iSecure 2. Tap Server IP on the upper right corner. Figure 5-2 Server IP Configuration 3. Select Http or Https as the login mode.

  • Page 45: Resource List

    DS-1105KI Network Keyboard User Manual 5.2 Resource List Resource list interface appears after you log in to iSecure. Resource list contains control center, region, video wall, and camera. Tap a control center or region, you can view its subordinate control center, region, and camera.

  • Page 46: Ptz Operation

    DS-1105KI Network Keyboard User Manual 4-Window • Press 4+MULT to switch the current image into 4 windows, and tap Preview any window to preview more cameras. • Press 1+MULIT to return the previous image. Switch Channels Press PREV/NEXT to switch to the previous or next channel.

  • Page 47: Video Wall Control

    DS-1105KI Network Keyboard User Manual Figure 5-4 Add Region 3. Enter video wall ID, start and end coordinates. 4. Tap OK. Note • Up to 16 regions are supported. • The maximum region specification is 6 × 8. • After the region is configured, when pressing Num+REGION, it will firstly select the region.

  • Page 48: Ptz Operation

    DS-1105KI Network Keyboard User Manual 5.4.3 PTZ Operation You can control the added speed dome, like control PTZ movement, turn on/off light, turn on/off wiper, zoom in/out, increase/decrease iris, increase/decrease focus, set and call preset, call patrol/ pattern. For detailed steps, see PTZ Control .

  • Page 49: Chapter 6 Hikcentral Mode

    DS-1105KI Network Keyboard User Manual Chapter 6 HikCentral Mode The keyboard is accessible to HikCentral platform, and the images of the cameras accessible to HikCentral platform can be displayed on the video wall and previewed locally. 6.1 Login Steps 1. Tap HikCentral at home page.

  • Page 50: Resource List

    DS-1105KI Network Keyboard User Manual 6.2 Resource List Resource list interface appears after you log into HikCentral platform. Resource list contains control center, region, video wall, and camera. Tap a control center or region, and you can view its subordinate control center, region, and camera.

  • Page 51: Ptz Operation

    DS-1105KI Network Keyboard User Manual Figure 6-4 Local Live View 3. During preview, use the joystick to control the pattern of PTZ. 4. During preview, switch channels, capture images or clip videos. 4-Window • Press 4+MULT to switch the current image into 4 windows, and tap Preview any window to preview more cameras.

  • Page 52: Video Wall Operation

    DS-1105KI Network Keyboard User Manual 6.4 Video Wall Operation 6.4.1 Region Configuration The whole video wall can be divided into different regions for management. Steps 1. Tap on the upper-right corner. 2. Tap Figure 6-5 Add Region 3. Enter video wall ID, start and end coordinates.

  • Page 53: Video Wall Control

    DS-1105KI Network Keyboard User Manual 6.4.2 Video Wall Control • When you press Num+CAM to preview, the stream type adapts to the platform by default. But you can switch the stream type. • Select a coordinate grid that has been linked with an output interface, and perform operations such as opening a window, closing a window, resizing a window, and dividing a window.

  • Page 54: Chapter 7 System

    DS-1105KI Network Keyboard User Manual Chapter 7 System Tap System at home page to enter system interface. You can configure keyboard network, hardware, time, etc. Note Restoring default settings, importing/exporting configuration files, and remote upgrades require the administrator password to be verified.

  • Page 55: Storage

    DS-1105KI Network Keyboard User Manual When Sync Display is selected, the connected monitor displays the same image as the keyboard. When Async Display is selected, the connected monitor displays the local live view image. Alarm Keyboard alarms when network disconnected or IP conflicted.

  • Page 56: Usb Storage

    DS-1105KI Network Keyboard User Manual 7.3.2 USB Storage Save captured images and clipped videos in USB flash drive. Steps 1. Go to System → Storage → USB . 2. Tap Save. 7.4 Upgrade You are recommended to upgrade your keyboard under the help of professional technical support.

  • Page 57: Factory Default

    DS-1105KI Network Keyboard User Manual a. Tap Import. b. Enter admin password. c. Select the database file (DataConfiguration) to import. • Export Configuration File: a. Tap Export. b. Enter admin password. c. Select the folder to export configuration file (kbConfig).

  • Page 58: Chapter 8 Web Configuration

    DS-1105KI Network Keyboard User Manual Chapter 8 Web Configuration You can add devices, manage channels or configure basic parameters through the web interface of the network keyboard. It is convenient to remotely configure and maintain the network keyboard. 8.1 Login...
  • Page 59 DS-1105KI Network Keyboard User Manual Figure 8-2 Add Device by IP Address Figure 8-3 Add Device by IP Segment Note • It takes a long time to add devices by IP segment. Please wait patiently. • After adding devices in IP segment mode, you need to refresh manually to get the added devices.

  • Page 60: Import Input Channels In Batches

    DS-1105KI Network Keyboard User Manual 4. Check or uncheck Add Video Recorder Output as desired. Note Check Add Video Recorder Output, and the output port type, channel number and other information will be listed in the output port list. 5. Optional: In Device Management interface, click Add SADP, enter user name and password, check the device to be added, and click OK to add online devices on the same network segment.

  • Page 61: Channel Management

    DS-1105KI Network Keyboard User Manual Figure 8-5 Import Input Channel in Batches 3. Click Browse and select the imported template. 4. Enter password and click OK. The channels in the template will be added into network keyboards. 8.3 Channel Management 8.3.1 Edit Channel...

  • Page 62: Camera Group

    DS-1105KI Network Keyboard User Manual Code stream for local live view and video wall preview. Transmission Protocol Available for video wall preview. 4. Click OK. 8.3.2 Camera Group Camera group enables you to preview a group of cameras (input channels) in sequence.

  • Page 63: Serial Port Settings

    DS-1105KI Network Keyboard User Manual 5. Click Edit in Camera Group interface, uncheck input channels to be unlinked and click OK to unlink the input channel. 8.4 Serial Port Settings RS-485 and RS-232 serial port parameters can be set in the Serial Port Settings interface. You can set baud rate, data bit, protocol type, stop bit, parity and other parameters of RS232 and RS485, edit the address of RS485 serial port, and copy RS485 serial port settings to all.

  • Page 64: System Settings

    DS-1105KI Network Keyboard User Manual • Check DHCP to obtain IP address and related network parameters automatically. • Uncheck DHCP and enter IP address, gateway, subnet mask. 3. Click Save. Figure 8-10 Network Parameters 8.6 System Settings 8.6.1 Version Go to System Management → Version to view system version information, including device type, serial No., firmware version, decoding version, MCU version and web version.
  • Page 65 DS-1105KI Network Keyboard User Manual • Add, edit, and delete macro and group. • Add, edit, and delete region. • Deleting, editing, and adding devices are not allowed. Steps 1. Go to System Management → User Management . 2. Click Add.

  • Page 66: System Maintenance

    DS-1105KI Network Keyboard User Manual Caution We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 67: Log Management

    DS-1105KI Network Keyboard User Manual Note • Please set the key for the configuration file when exporting it. • The configuration file encrypted and exported is named as configurationdata. • If the configuration file is encrypted, you need to enter the key of the configuration file when importing it.
  • Page 68 DS-1105KI Network Keyboard User Manual • SSH is disabled by default after the network keyboard is restarted. • When you enable SADP, the keyboard can be searched. When you disable SADP, the keyboard cannot be searched.
