M-4132 Quick Start User Guide
1. Introduction
This manual introduces the M-4132's basic setting and operation. The user can refer
to the user manual in the ICP DAS companion CD-ROM (Path: "CD:\napdos\
multimedia\m-4132\manual\m-4132 user manual.pdf") for detail.
The manual is intended to help users quickly understanding and easily using of M-
4132. We use two M-4132s (one as Server, the other as Client), one Ethernet switch

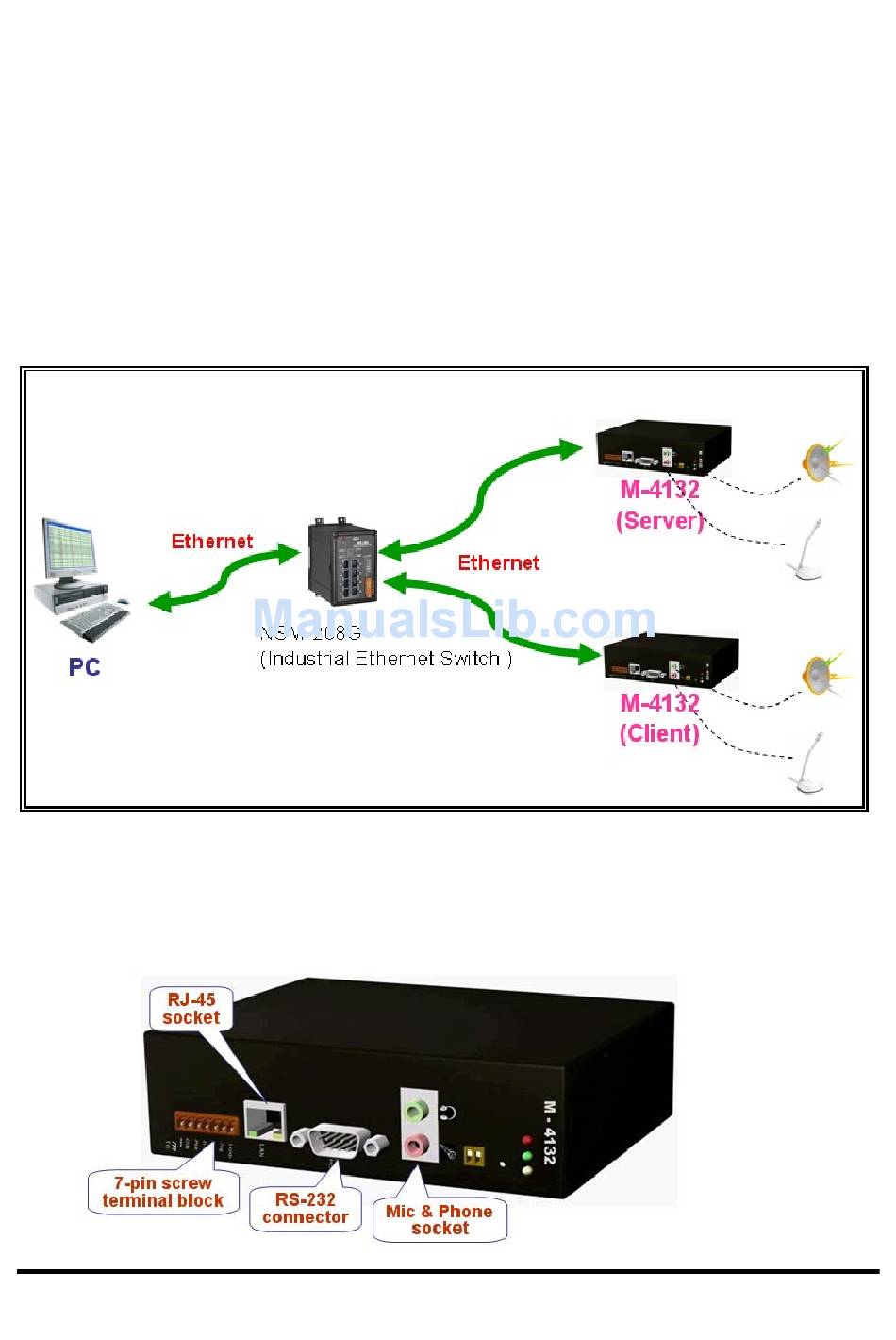

and one PC to make a simple application here, as shown in figure 1. The PC is
prepared for setting and operating the M-4132.
Figure 1: Pair connection
2. Hardware configuration
Pin Assignment
M-4132 Quick Start User Guide (Version 1.10 Oct/2009)
PAGE: 1

Advertisement

loading

Related Manuals for ICP DAS USA M-4132

Summary of Contents for ICP DAS USA M-4132

  • Page 1 M-4132 Quick Start User Guide 1. Introduction This manual introduces the M-4132’s basic setting and operation. The user can refer to the user manual in the ICP DAS companion CD-ROM (Path: “CD:\napdos\ multimedia\m-4132\manual\m-4132 user manual.pdf”) for detail. The manual is intended to help users quickly understanding and easily using of M- 4132.
  • Page 2 To press the TB about 40 flash. second after power on Display the current IP SW2=OFF After power on, it will display the and version SW1=OFF message about current IP and version M-4132 Quick Start User Guide (Version 1.10 Oct/2009) PAGE: 2...

  • Page 3: Led Status Indicator

    Ethernet. flash (SA1 & SA2 Server: Receive the request to connect from the client. alternate flash) Client: Request the server to connect. M-4132 Quick Start User Guide (Version 1.10 Oct/2009) PAGE: 3...

  • Page 4: System Setting

    3. System Setting The M-4132 module is built-in web server, the user can configure and operate the M- 4132 by web browser (ex: IE). Connection Setting The user needs to prepare a system as figure 1. The user can connect PC and a M- 4132 by Ethernet switch.
  • Page 5 Step 3: Click “Properties” button Step 4: Click “Properties” button Step 5: Set “Internet Protocol Properties” b. connection test： Step 1: Click “start->Run” Step 2: key in “cmd” and then click “OK” button M-4132 Quick Start User Guide (Version 1.10 Oct/2009) PAGE: 5...
  • Page 6 Step 3: Key in “ping 192.168.1.217” and click “Enter”. If the network settings are all correct in PC and M-4132, these messages are shown below. Response Message: Reply from 192.168.1.217: bytes=32 time<1ms TTL=64 Reply from 192.168.1.217: bytes=32 time<1ms TTL=64 Reply from 192.168.1.217: bytes=32 time<1ms TTL=64 Reply from 192.168.1.217: bytes=32 time<1ms TTL=64...

  • Page 7: Communication Test

    . After login the user can click “Default Setting” button in the “Standard Config” page and then set the client refer to the above. Note: It must reset the M-4132 by power reset or click “Reboot” button after the user changes the settings.
  • Page 8 Voice and serial data transferred from one side is forwarded to the other side at that time. If the user wants to end the connection, the user can click “Request Break” button. “Pair Connection” button “Request Break” button M-4132 Quick Start User Guide (Version 1.10 Oct/2009) PAGE: 8...
