50" TV Stand w/Storage Drawer (TGXLD-1)
This item is designed to be 3-in-1 configuration. Please choose which of the 3 options suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this
will give you the opportunity to use this TV Console for different configurations in case you decide
to upgrade your TV set in the future.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this item to
the Retailer Store. Please call our toll-free customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
www.whalenfurniture.com
ONLINE:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg. Inc.
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
TGXLD-1
LOT NUMBER:
DATE PURCHASED: /

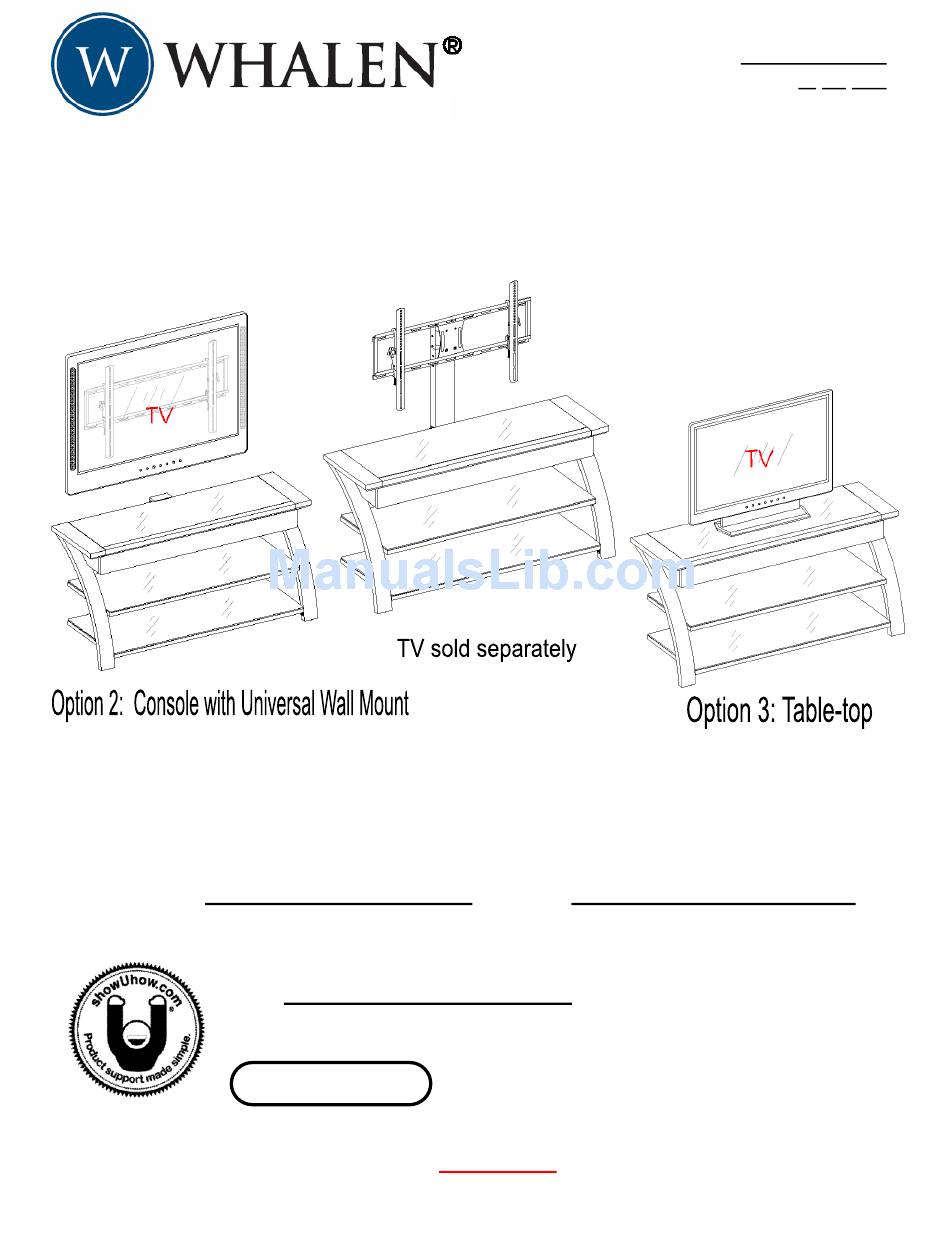

Option 1:
With Swinging Floater
parts@whalenfurniture.com
EMAIL:
Page 1
/
Factory No. 33-10944
Advertisement
Related Manuals for Whalen TGXLD-1
Summary of Contents for Whalen TGXLD-1
- Page 1 LOT NUMBER: DATE PURCHASED: / 50” TV Stand w/Storage Drawer (TGXLD-1) This item is designed to be 3-in-1 configuration. Please choose which of the 3 options suits your needs. DO NOT discard any of the hardware or parts that you will not use on your set option, this will give you the opportunity to use this TV Console for different configurations in case you decide to upgrade your TV set in the future.
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture CATALOG: 50” TV Stand w/Storage Drawer (TGXLD-1) DATE OF MANUFACTURE: January, 2011 MADE IN CHINA FITS UP TO MOST 56”...
- Page 3 Model # TGXLD-1 Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1) D- Long Spine (1)
- Page 4 Model # TGXLD-1 Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. M- Drawer Right Side (1) N- Drawer Bottom Panel (1) O- Drawer Bottom Support (2) P- Swiveling Bracket (1)
- Page 5 Model # TGXLD-1 3/16” Allen Wrench Tipping Restraint Hardware Kit (1) Open Wrench M4 Allen Wrench (Inside Plastic Bag) TV Mounting Kit M4 x 12 Bolt (4) M4 x 30 Bolt (4) M5 X 12 Bolt (4) M5 x 30 Bolt (4)
- Page 6 Model # TGXLD-1 Drawer Assembling 1. Unpack the unit and confirm that you have all the hardware and required parts listed. 2. Align and attach Drawer Left & Right Side (L & M) to the Drawer Front Panel (J) with the end wood dowels fully inserted and all slots facing inside and align with each other.
- Page 7 Model # TGXLD-1 Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 8. Choose the option suits your needs. Locate Long Spine (D) or Short Spine (D1) and set back face down on a scratch free surface as shown in detail #2.
- Page 8 Model # TGXLD-1 Assembly Instructions 10. Stand the unit upright. 11. Align and attach Left Leg (E) to Top Shelf Frame (A) by inserting two 1 1/2” Bolts (3) with Washers (7 & 8) from inside the shelf frame through the pre-drilled holes on side rail into the threaded inserts on Leg.
- Page 9 Model # TGXLD-1 Assembly Instructions 14. Go back and tighten all bolts with Allen Wrench provided. 15. In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (E & F). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in detail #4.
- Page 10 Model # TGXLD-1 Assembly Instructions for Table-top 16. Attach two Cable Controls (12) onto the backside of Spine (D1) with the 3/4” Bolts (2). Tighten the bolts with M4 Allen Wrench provided. See detail #5. 17. The Cable Controls (12) enable you to shorten, separate and route both single and bundled cables.
- Page 11 Model # TGXLD-1 Assembly Instructions for Table-top 18. Pull the sliding bearing on Left and Right Leg (E & F) all the way forward (including ball bearing cart). Then align the slider tracks on assembled Drawer with sliding bearings and push the drawer carefully inside until stop, as shown in detail #6.
- Page 12 Model # TGXLD-1 Assembly Instructions for Table-top 21. Position the assembled Table-top in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly. As shown in detail #8.
- Page 13 Model # TGXLD-1 A s s e m b l y I n s t r u c t i o n s f o r O p t i o n 1 : C o n s o l e w i t h S w i n g i n g F l o a t e r attach Swiveling Bracket (P) to the top of Long Spine (D) using six 3/4”...
- Page 14 Model # TGXLD-1 Assembly Instructions for Option 1: Console with Swinging Floater 24. Hold the flat side of XYZ Mounting Frame (Q) onto the Swiveling Bracket (P) ensuring the recessed 2 holes on the Mounting Frame bottom. Align and attach by threading four 3/4”...
- Page 15 Model # TGXLD-1 Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #28. 25. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 16 Model # TGXLD-1 Mounting Monitor Bracket to a television with a curved / recess back 28. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 17 Model # TGXLD-1 Assembly Instructions for Option 1: Console with Swinging Floater MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE AND USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO INSTALLATION OF TV.
- Page 18 Model # TGXLD-1 Assembly Instructions for Option 1: Console with Swinging Floater 33. The Monitor Brackets (RL/RR) can tilt up to 11˚ downward and 5˚ upward, depending on your optimum viewing position. Have your assistant hold the TV steady before you start to adjust the tilt.
- Page 19 Model # TGXLD-1 Assembly Instructions 34. Repeat steps 16 thru 20 to attach the Cable Controls (12) and install assembled drawer and Glass Shelves in place. 35. Carefully move the console and position in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly.
- Page 20 Model # TGXLD-1 The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the stand, disregard the following steps.
- Page 21 Model # TGXLD-1 Assembly Instruction for installing XYZ Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK 40. Use the XYZ Mounting Frame (Q) as a template, mark four holes location on the wall, two in the top row and two in the bottom row of slots. Make sure that the holes are level and there is at least 6”...
- Page 22 Model # TGXLD-1 Assembly Instructions 43. Once the Monitor Brackets (RL/RR) are attached onto the back of television, ask for assistance to lift the television up to attach the Monitor Brackets onto the XYZ Mounting Frame (Q). Place the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of Mounting Frame.
-
Page 23: Care And Maintenance
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
