Using the IR 102 with a Control System

IR 102 Remote Control IR Sensor

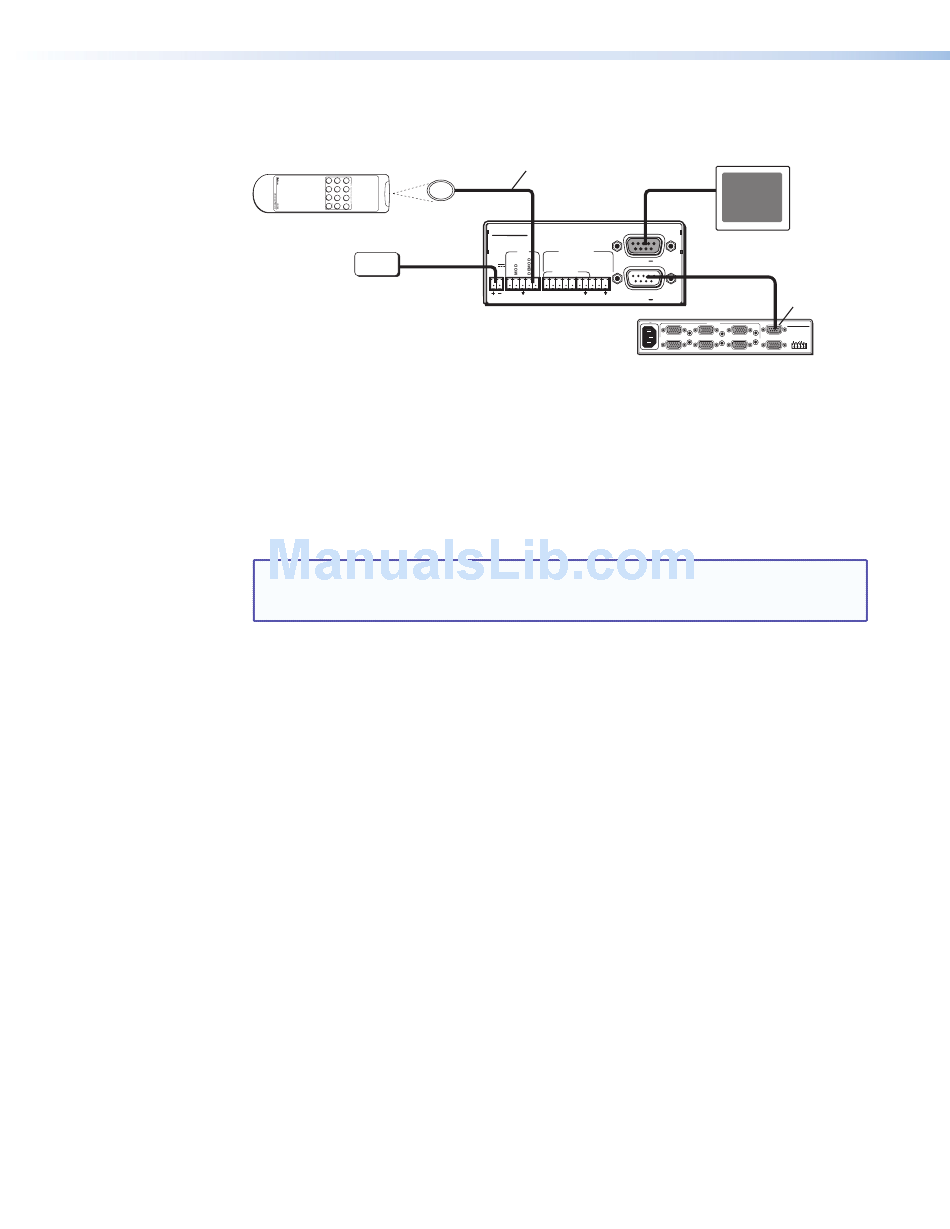

Figure 7.
To use the IR 102 with a control system to control a switcher, use an RS-232 cable to
connect the IR 102 Rx remote receiver to the RS-232 connector on the switcher rear
panel.
The receiver uses the RS-232 interface of the switcher for input selection. It also has
an RS-232 input port to permit the switcher to be controlled by a computer or control
system, regardless of whether the switcher RS-232 port is occupied by the IR 102
remote receiver.
NOTE: The remote control can operate a switcher only if the switcher is configured
IR 102 User Guide • Installation and Operation
6
Power Supply
A Typical IR 102 Switcher Application
as master with no switchers slaved to it. See the switcher user guide to configure
the switcher.
Up to 21' (6.4m) Cable
IR 102 Rx
UNIVERSAL IR REMOTE RECEIVER
IR IN CONTROL OUT
POWER
RS-232 IN
12V
.5A MAX CONTACT RS-232
+5 1 2 3 4 5 6 Tx Rx
+12V
RS-232/
OUT
CONTACT
IR 102 Rx Remote
Control Receiver
100-240V 0.2A
50-60Hz
SW6 VGA Ars Switcher
Control System/PC
6' (1.8m) Cable
REMOTE
INPUTS REMOTE
SW6 VGA Ars SW6 VGA Ars
3
1 5
OUTPUT
OUTPUT
4 6
2 L R
