AT&T SRQ-MF923 User Manual

Cornwall
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

User Guide

AT&T Cornwall™
Mobile Hotspot

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRQ-MF923 and is the answer not in the manual?

Questions and answers

Related Manuals for AT&T SRQ-MF923

Summary of Contents for AT&T SRQ-MF923

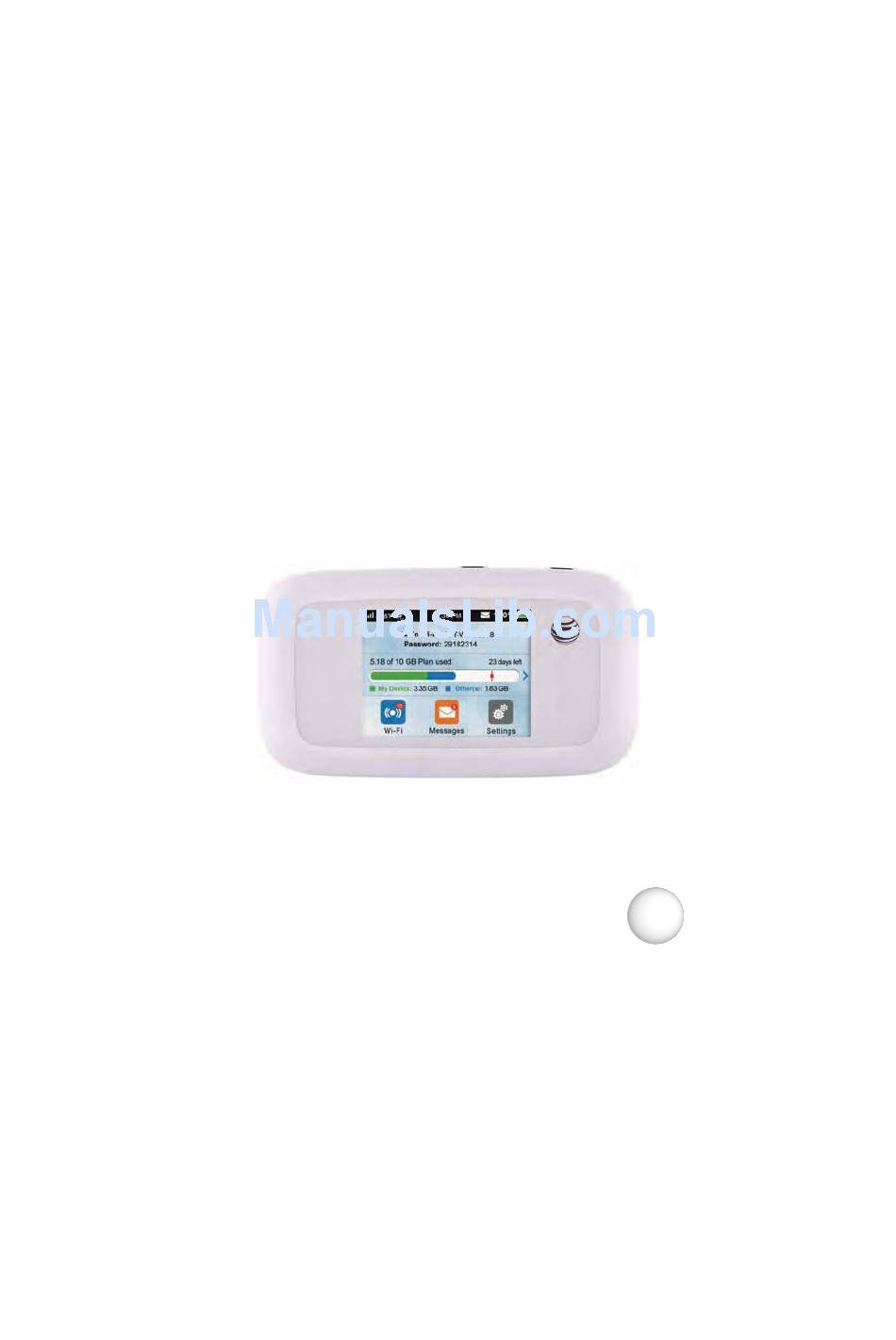

  • Page 1: User Guide

    User Guide AT&T Cornwall™ Mobile Hotspot...

  • Page 2: Table Of Contents

    Contents Get Started ............1 Know Your Device .

  • Page 3: Get Started

    Troubleshooting ..........48 Get Started Specifications .

  • Page 4: Manage Your Device And Settings

    Manage Your Device and Settings microSDHC ™ Power You can manage your device and change settings using: card cover button button The device’s LCD touch screen — Configure basic Wi-Fi and device settings, and view data usage, and messages. The AT&T Mobile Hotspot Manager homepage — Web user interface for configuring mobile broadband network settings and advanced Wi-Fi and device settings.
  • Page 5 LCD Touch Screen LCD Home Screen Elements Icons on the LCD screen’s top row indicate the status of the Icon Indication mobile hotspot, and several screen elements can be tapped or swiped to configure Wi-Fi and device settings, view data usage Network signal strength details, and view carrier messages.
  • Page 6 Charge Your Hotspot Accessories You can charge your device by using the USB cable or adapter. Micro USB cable — Used mainly for recharging the battery, although you can also use it to tether the mobile hotspot to Use the USB cable to connect your device and PC directly. your computer.

  • Page 7: Set Up And Connect To The Internet

    Set Up and Connect to the Internet Connect to the Internet Power on your device directly. Install the Battery Press and hold the Power button until the screen powers on. Once powered up, the mobile hotspot automatically searches for and connects to your network provider’s mobile Remove the back cover.
  • Page 8 c) Input the Wi-Fi network password, as it displays on the Connect a WPS-Enabled Wireless Device mobile hotspot screen. If your client device supports WPS, you don’t have to input the password manually after WPS has been available. Please do the following: On the screen: On the home screen, tap WiFi >...
  • Page 9 On the AT&T Mobile Hotspot Manager homepage: On your laptop (or other Wi-Fi device), log in to the AT&T Mobile Hotspot Manager homepage by visiting http://att.hotspot or http://192.168.0.1. The default login is attadmin. Click Settings on the navigation menu on the left side. Click Wi-Fi >...

  • Page 10: Use Your Mobile Hotspot

    Use Your Mobile Hotspot Security Credentials The mobile hotspot uses three passwords: This chapter describes the main features of the touch screen and web interfaces for managing your mobile hotspot. Wi-Fi password — Used to authenticate wireless devices (notebook, etc.) to your mobile hotspot network. It is: AT&T Mobile Hotspot Manager Homepage You must be logged in as Administrator to change settings and view detailed information.

  • Page 11: View Your Data Usage

    View Your Data Usage Current Connection: Amount of data used in current broadband session You can view estimates of your data usage (not accurate for Time the connection started billing purposes) on the mobile hotspot and the AT&T Mobile Amount of time connection has been active Hotspot Manager homepage.
  • Page 12 Select Connected Devices on the navigation menu on the to adjust the number of connections available left side. A list of devices connected to the Main Wi-Fi and for the Main or Guest Wi-Fi networks. Guest Wi-Fi networks appears on the screen. You can view the IP and Mac addresses of the devices.
  • Page 13 Block/Unblock Devices Note: Whenever you block or unblock devices, the Wi-Fi radio resets to activate the new settings. Any devices connected to the mobile hotspot will be disconnected when the Wi-Fi radio resets. You can block a device that is currently connected to your mobile hotspot, and it will not be able to connect to your Wi-Fi unless you choose to unblock it.

  • Page 14: Message

    To unblock one of these devices so it can connect to your In the Blocked Wi-Fi device(s) section, the Black List shows all mobile hotspot, tap the device you want to unblock. blocked devices. Tap OK. On the AT&T Mobile Hotspot Manager Homepage: To block a connected device: Log in as Administrator.

  • Page 15: File Sharing

    On the AT&T Mobile Hotspot Manager homepage: On the AT&T Mobile Hotspot Manager homepage: To view or delete messages: Sharing microSDHC card via USB cable: Log in as Administrator. Click Messages on the navigation menu on the left side. A list of messages appears.

  • Page 16: Battery

    Sharing microSDHC Card via Web Browser Click Access the files on the SD Card on the login window to access the files on the microSDHC card. Select File Sharing > Settings and then the microSDHC card page is shown as the following figure. Battery Battery Life The mobile hotspot is configured (by default) to optimize...
  • Page 17 There are several methods you can use to extend the On the touch screen: battery life: On the home screen, tap WiFi. Adjust these settings: Shorten the Wi-Fi range — If the devices you are connecting Wi-Fi sleep mode — Tap Sleep Mode, and then select a to your Wi-Fi network are always near the mobile hotspot shorter time period.

  • Page 18: Security

    On the AT&T Mobile Hotspot Manager homepage: Log in as Administrator. Click Settings on the navigation menu on the left side. Click Wi-Fi > Advanced Settings tab. Adjust these settings in the Security Settings section: Wi-Fi Coverage — From the drop-down box, select Short. Sleep mode —...
  • Page 19 Guest Wi-Fi network — Mobile hotspot or AT&T Mobile Change Guest Wi-Fi name and password Hotspot Manager homepage If you are using the Guest Wi-Fi profile, you can change the Guest Wi-Fi name or password from the AT&T Mobile Hotspot Change Main Wi-Fi Name and Password Manager homepage.
  • Page 20 Change AT&T Mobile Hotspot Manager Homepage Change Wi-Fi Security Types Access Settings You can set the mobile hotspot’s Wi-Fi security types in the AT&T Mobile Hotspot Manager homepage. You can customize the Admin Login used to access the AT&T Mobile Hotspot Manager homepage. On the AT&T Mobile Hotspot Manager homepage: On the AT&T Mobile Hotspot Manager homepage: Log in as Administrator.

  • Page 21: Configure Data Network Options

    Touch a network in the network list to register manually. You can also tap the On/Off button beside Select automatically to select preferred network automatically. View Details You can view details about your device such as the wireless number, hardware version, and IMEI on the mobile hotspot or the AT&T Mobile Hotspot Manager homepage.

  • Page 22: Replace The Sim Card

    Software Update Replace the SIM card Software or firmware updates for the mobile hotspot may Your mobile hotspot comes with the SIM card inserted. become available periodically. You will receive an alert when If you need to replace the SIM card: an update becomes available, and you can check for updates manually from the mobile hotspot or from the AT&T Mobile Remove the back cover.

  • Page 23: Reset The Mobile Hotspot

    Insert the SIM card. Reset the Mobile Hotspot You can reset the mobile hotspot to the factory setting on the mobile hotspot or the AT&T Mobile Hotspot Manager homepage. (This is useful if you have lost your Admin Login for the AT&T Mobile Hotspot Manager homepage.) Notes: If you reset the modem to factory settings, all of your...

  • Page 24: Advanced Settings

    Advanced Settings Change Advanced Settings This chapter provides information on how to configure View WAN Information advanced settings for various aspects of the device such as View detailed network information, such as the active network, Wi-Fi settings, WAN settings, router settings, etc. connection status, signal strength, etc.
  • Page 25 Enable MAC/IP/Port Filtering Enable VPN Passthrough You can Enable or Disable the Mac/IP/Port Filtering feature as If you want to connect to a corporate network using VPN, you needed to block certain Internet traffic. If this setting is enabled, first need to enable VPN connections (passthrough). you can then choose whether traffic is Accepted or Dropped To enable VPN passthrough: by default by selecting the appropriate option from the Default...
  • Page 26 Select the network Authentication mode. The options are: Click Firewall > DMZ tab. None (default) Select Enable beside DMZ. CHAP In the DMZ IP Address field, enter the IP address of the computer you want to have in the DMZ. Click Apply.

  • Page 27: Troubleshooting

    Troubleshooting Problem Suggested Solution Problem Suggested Solution Cannot Refresh network list and select the About the Select Wi-Fi on the home screen to establish the correct SSID. password check the Main/Guest Wi-Fi Network Wi-Fi connection password or check the label on the Check the IP address to make sure between your device to get them.

  • Page 28: Specifications

    Specifications Regulatory and Safety Information Mechanical Specifications To the Owner Weight 130 g interference sent by your device if inadequately shielded, Dimensions 114 x 63 x 17 mm such as the electronic system of vehicles. Please consult the Display 2.4" QVGA TFT LCD manufacturer of your device before using if necessary.

  • Page 29: Regulatory And Safety Information

    Using Your Device your device and store it in a cool dry place. authorized. Using any unauthorized accessories may affect your device’s performance, and violate related national regulations about telecom terminals. appointed recycle place. Do not dispose of the battery in the trash.

  • Page 30: Fcc Compliance

    FCC ID: SRQ-MF923 ・ t or relocate the receiving antenna. SAR compliance for body operation is based on a separation distance of 10 mm between the unit and the human body.

  • Page 31: Limited Warranty

    b) Do not modify or remanufacture, attempt to insert foreign adapters, products that bear the USB-IF logo or products that objects into the battery, immerse or expose to water or other have completed the USB-IF compliance program. liquids, expose to fire, explosion or other hazard. Limited Warranty c) Only use the battery for the system for which it is specified d) Only use the battery with a charging system that has...
  • Page 32 Notes for defective or nonconforming items, and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the implied warranties of merchantability and fitness for a particular purpose, unless otherwise required under the mandatory provisions of the law. Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising...
