SD Data Card to PC Data Transfer
1.
Complete a datalogging session as covered above. For the first test, simply record a small
amount of test data.
2.
With the meter switched OFF, remove the SD Card.
3.
Plug the SD Card directly into a PC SD card reader. If the PC does not have an SD card slot,
use an SD card adaptor (available at most outlets where computer accessories are sold).
4.
Power the PC and run a spreadsheet software program. Open the saved documents in the
spreadsheet software program (see examples of spreadsheet displays below).
RS-232/USB PC Interface
The optional 407001A software kit (software and cable) allows streaming of data to a PC via
the RS232 Output jack.

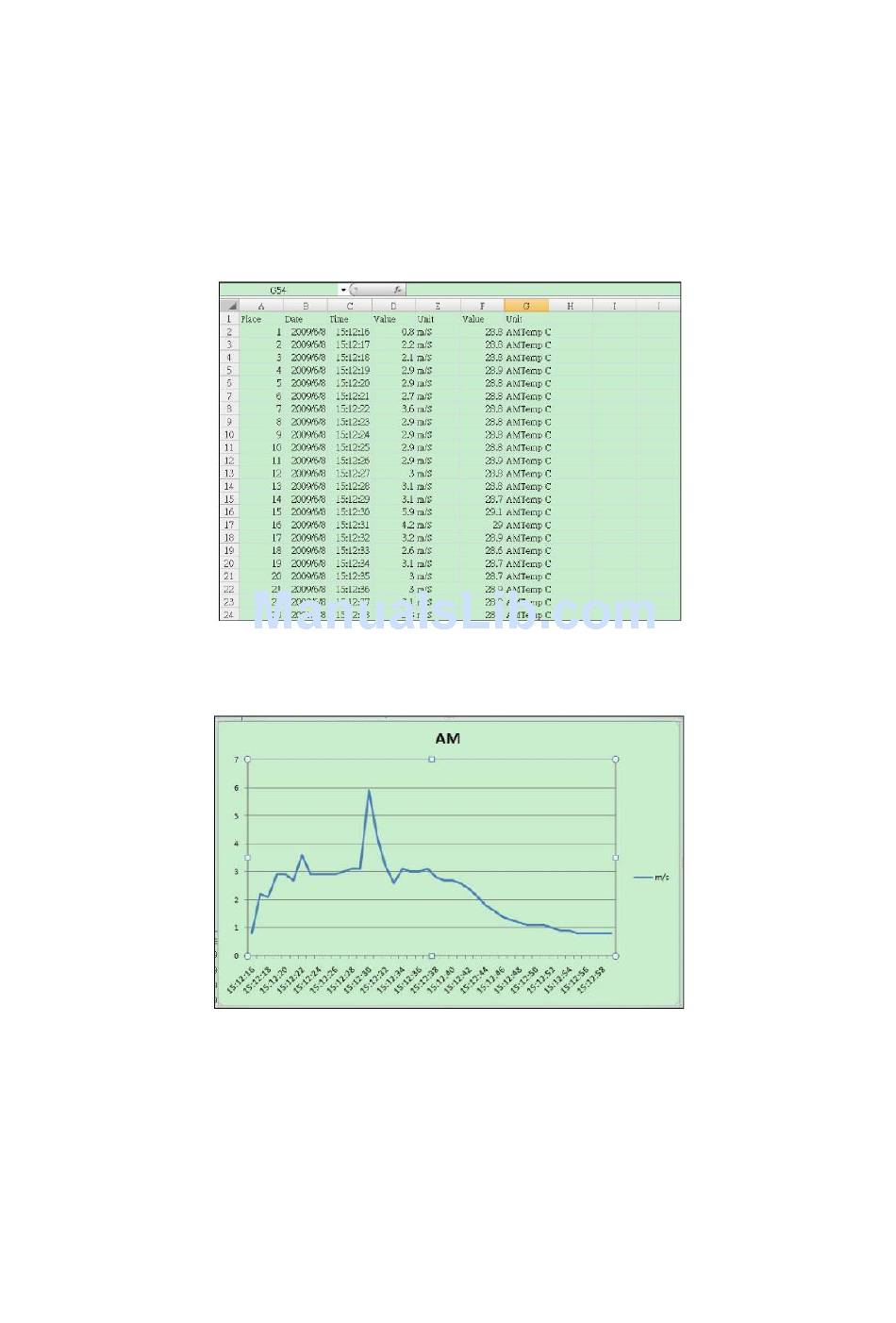

Spreadsheet data example
Spreadsheet example (Plotting the data)
6
SDL300-EN-V1.3 -10/11
