NOW YOU ARE READY TO FLY!
If you have successfully synced your BATWING™ to your controller as explained
on page 4 you are now ready to fly. Before beginning to fly your drone you
should familiarize yourself with how the controls work so please carefully read
and familiarize yourself with various control features explainED in the next two
pages. Once again as a beginner pilot you should learn how to control your
drone in a large open field or park on a day with zero or very light wind. Do not
try to fly your BATWING™ too high until you become a more experienced pilot.
RECOGNIZING THE FRONT AND BACK OF THE BATWING™
Even though the BATWING has four rotors there is still a front or "forward"
facing direction and "back" or backwards facing direction. The forward Front
and forward facing direction of the BATWING™ is the side
with two ears. The rear and back of the BATWING™ is
where the battery compartment is. The BATWING™ when in
flight will also help you keep aware of the orientation
with lighted LED lights on the bottom of the BATWING™.
NOTE: The front of the copter displays WHITE LED lights
and the back of the copter displays RED LED lights.
HOW TO TAKE OFF / LAND
• To start the batwing ™ for the first time , make sure the propeller guard is
installed, and the speed is set to mode 1 (slow).
• Make sure you have properly synced the batwing ™ As shown on page 4.
Starting with the left control stick at the bottom, slowly push up on the
control stick to take off and the rotors should begin to spin and take off.
• To stop or land the batwing ™ ,slowly lower the left control stick, the rotors
will slow down and the the batwing ™ will descend. when the batwing ™ lands On
the ground the rotors will turn off automatically
SPEED SETTING BUTTON
The BATWING™ has 3 speed settings; 1 (SLOW) , 2 (MEDIUM) and 3(HIGH). The
Default setting when you first turn on your BATWING™ is mode 1 (SLOW). To
increase the speed simply press the speed setting button (see remote diagram on
page 3) You will hear a beep and the speed indicator will display the current
speed setting with the Number. Number 1 indicates slow speed, 2 indicates medium
speed and 3 indicateS high speed.
3/4 CHANNEL SELECT
BATWING™ allows you to control your Quadrocopter in 3 channel mode
(beginner) or 4 channel mode (advanced flying). The BATWING™ default setting
is 4 Channel mode. To change to 3 Channel mode: PRESS the 3CH button (see
remote diagram on pg 3), you will hear 3 short beeps and the "3" will light up
on the controller indicating the BATWING™ is now set to 3CH mode.
To change back to 4 Channel mode: PRESS the 4CH button (see remote diagram
on pg 3), you will hear 4 short beeps and the "4" will light up on the
controller indicating the BATWING™ is now set to 4CH mode.
5

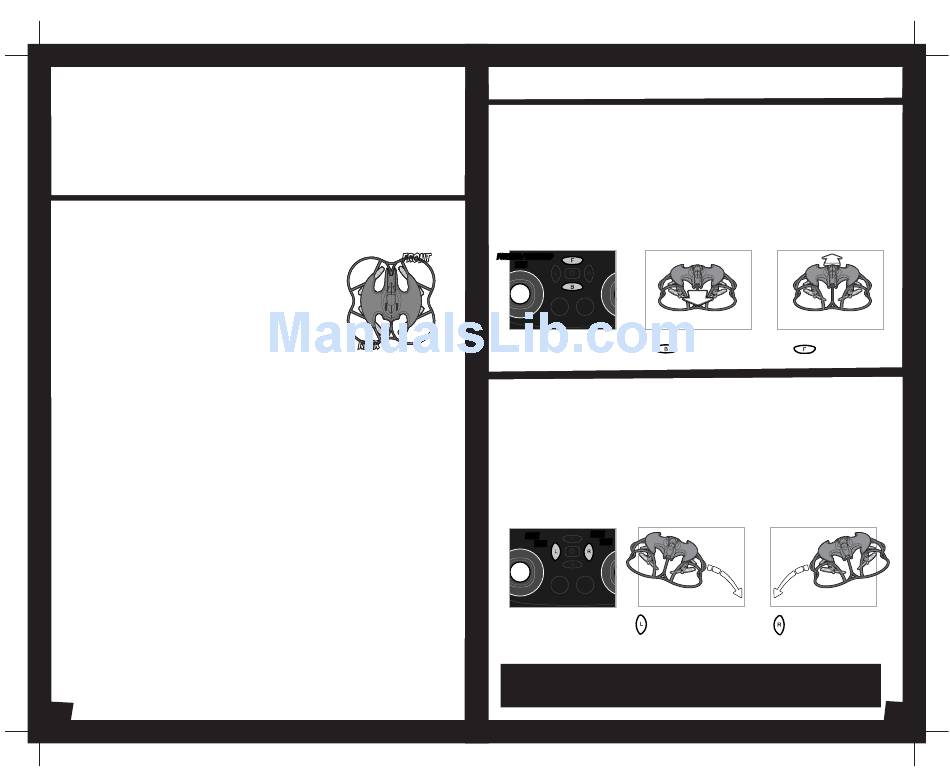

UNDERSTANDING TRIM ADJUSTMENTS
FORWARD/BACKWARD TRIM
• If your BATWING™ is moving forwards or backwards automatically, you may
need to adjust the FORWARD/BACKWARD TRIM buttons.
•If your BATWING™ flies forward, push and release the B TRIM button
repeatedly until the moving stops and proper flight is maintained.
•If your BATWING™ flies backwards, push and release the F TRIM button in
the same manner until the problem is resolved.
• From time to time you may have to adjust the FORWARD/BACKWARD TRIM to
ensure the BATWING™ will hover in mid-air and respond accurately to your
commands.
FRONT
FRONT
Forward/Backward
Forward/Backward
Trim
Trim
REAR
REAR
Forward/Backward
Trim Controls
BANKING LEFT/RIGHT TRIM
• If your BATWING™ is not steadily hovering and is banking to the left or right
automatically, you may need to adjust the BANKING TRIM buttons.
• If your BATWING™ banks to the left, push and release the R TRIM button
repeatedly until the banking Stops and proper flight is maintained.
• If your BATWING™ banks to the right, push and release the L TRIM button in
the same manner until the problem is resolved.
• From time to time you may have to adjust the BANKING TRIM to ensure the
BATWING™ will steadily hover in mid-air and respond accurately to your
commands.
Bank
Bank
Trim
Trim
4 CH Left/Right Banking
Controls
NOTE: The use of the Trim buttons are accompanied with a Beep tone. A single
long Beep indicates the product is center trimmed. Continuous long Beeps
indicate the product is trimmed to the maximum on a particular side.
If flying forward...
Push backward
trim button
Bank
Bank
Trim
Trim
Push the "L" trim button to
increase left banking
sensitivity
If flying backward...
Push forward
trim button
Push "R" trim button to
increase right banking
sensitivity
6
