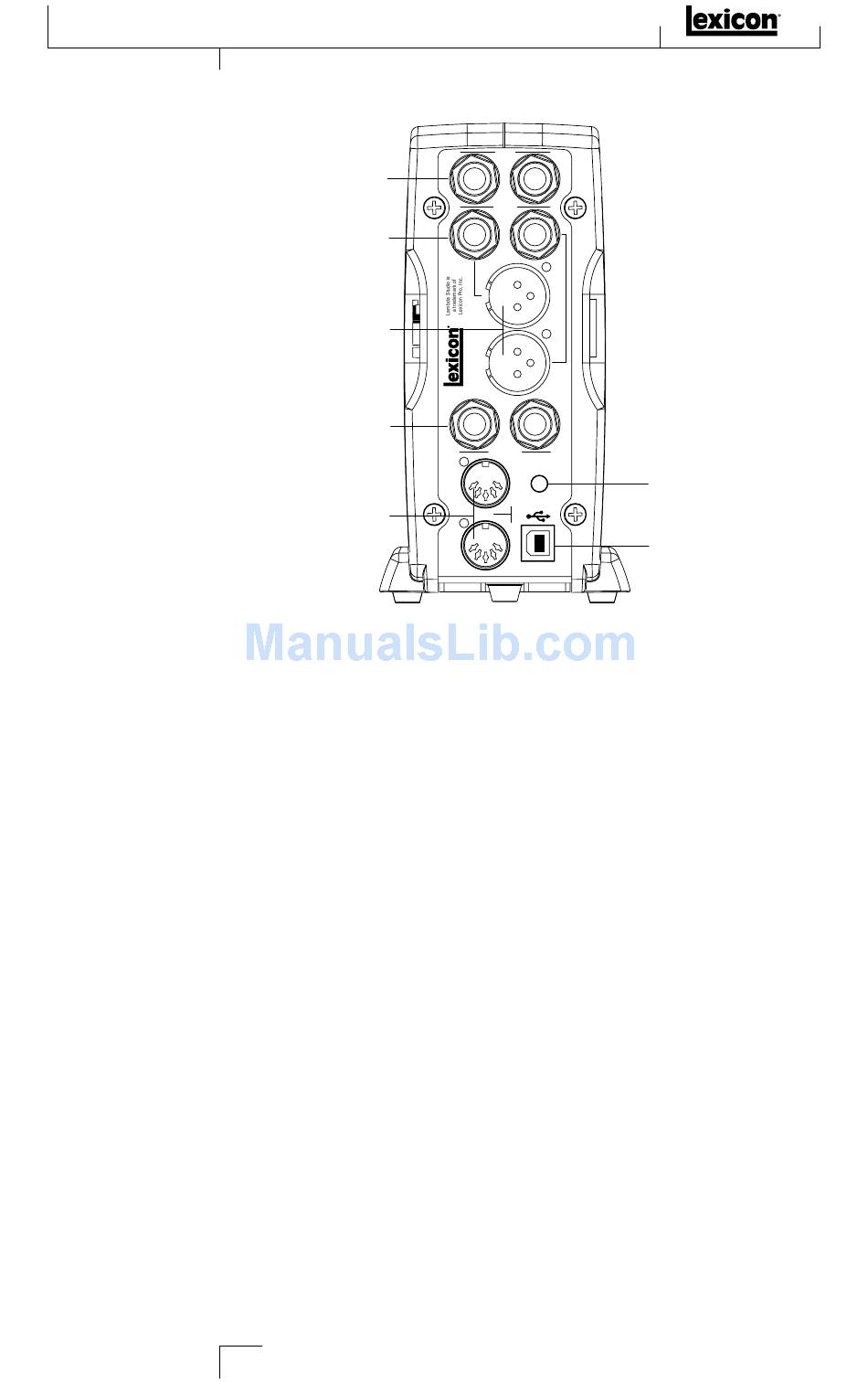

THE REAR PANEL

LINE IN 1-2

These ¼" inputs can accept both balanced (3-conductor TRS) and unbalanced
(2-conductor TS or instrument) audio sources. Each input gain is adjusted
individually using the

INSERT 1-2

Each mic input is equipped with a TRS insert point. Inserts provide a send and
return of the input channel's signal directly after the mic preamp and before the A/D
converter. You can insert any line-level signal processor (such as a compressor or
equalizer) to pre-process the mic signal before it is recorded, using a standard insert
cable (single TRS plug to two TS plugs). The tip is send and the ring is return.

MIC 1-2 INPUTS

These balanced XLR inputs feature high-quality mic preamps designed specifically for
low-impedance professional microphones. The input gain is adjusted using the
1-2
setting.

LEFT/RIGHT LINE OUTPUTS

These outputs support balanced TRS or unbalanced TS ¼" connections. These outputs
can be connected to a mixing board, power amplifier, powered studio monitors,
recorder, or another line-level input.

MIDI IN AND OUT

The MIDI jacks provide MIDI input and MIDI output to and from your computer.
Connect your MIDI keyboards, sound modules, and external controllers here.
Line In 1-2
Insert 1-2
Mic 1-2 Inputs
Left/Right Line Outputs
MIDI In and Out
Line 1-2
gain knobs on the front panel respectively, with 44 dB of gain at the maximum
5
1 Line 2
In
Insert
1 2
Mic 1
Mic 2
L R
Line Out
+48 V
In
MIDI
Out
gain knobs on the front panel.
+48V Phantom Power Switch
USB Port
Mic
