Meter Description

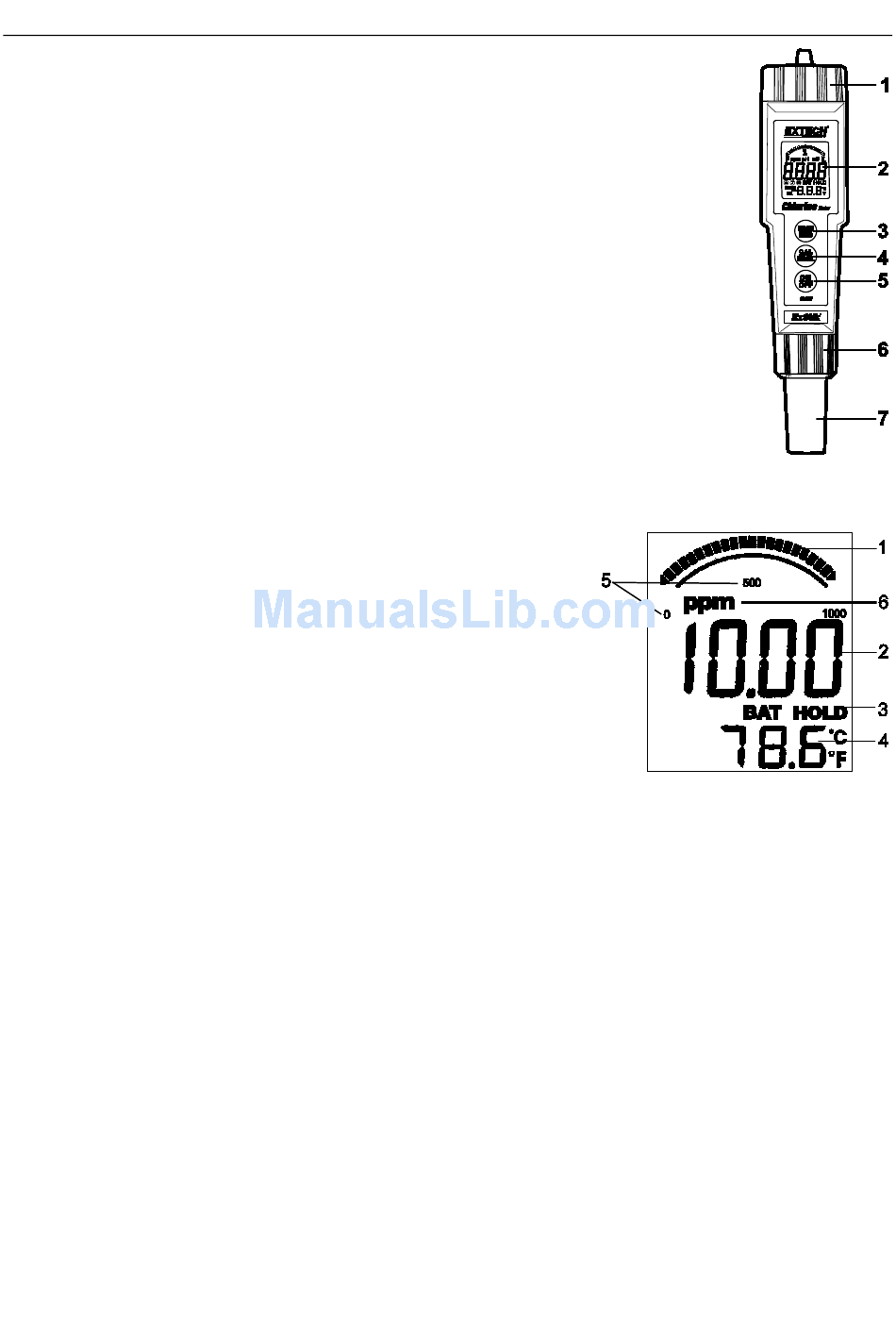

CL200 Front Panel Description
®
The ExStik's keys have functions which change depending on the electrode
attached (pH, ORP or Chlorine). Key descriptions here apply for the ExStik
chlorine electrode attached.
1. Battery compartment
2. LCD Display
3. MODE/HOLD button (store data)
4. CAL/RECALL button change temperature units and recall data.
(Calibration is required for chlorine)
5. ON/OFF button
6. Electrode Collar
7. Electrode
(Note: The Electrode cap is not shown)
®
ExStik CL200 Display
1. Bargraph display
2. Measurement display
3. BAT (low battery) and
HOLD (data hold) indicators
4. Temperature display
5. Bargraph scale designations
6. Unit of measure
3
®
with a
CL200A-en-GB_V9.0 5/17
