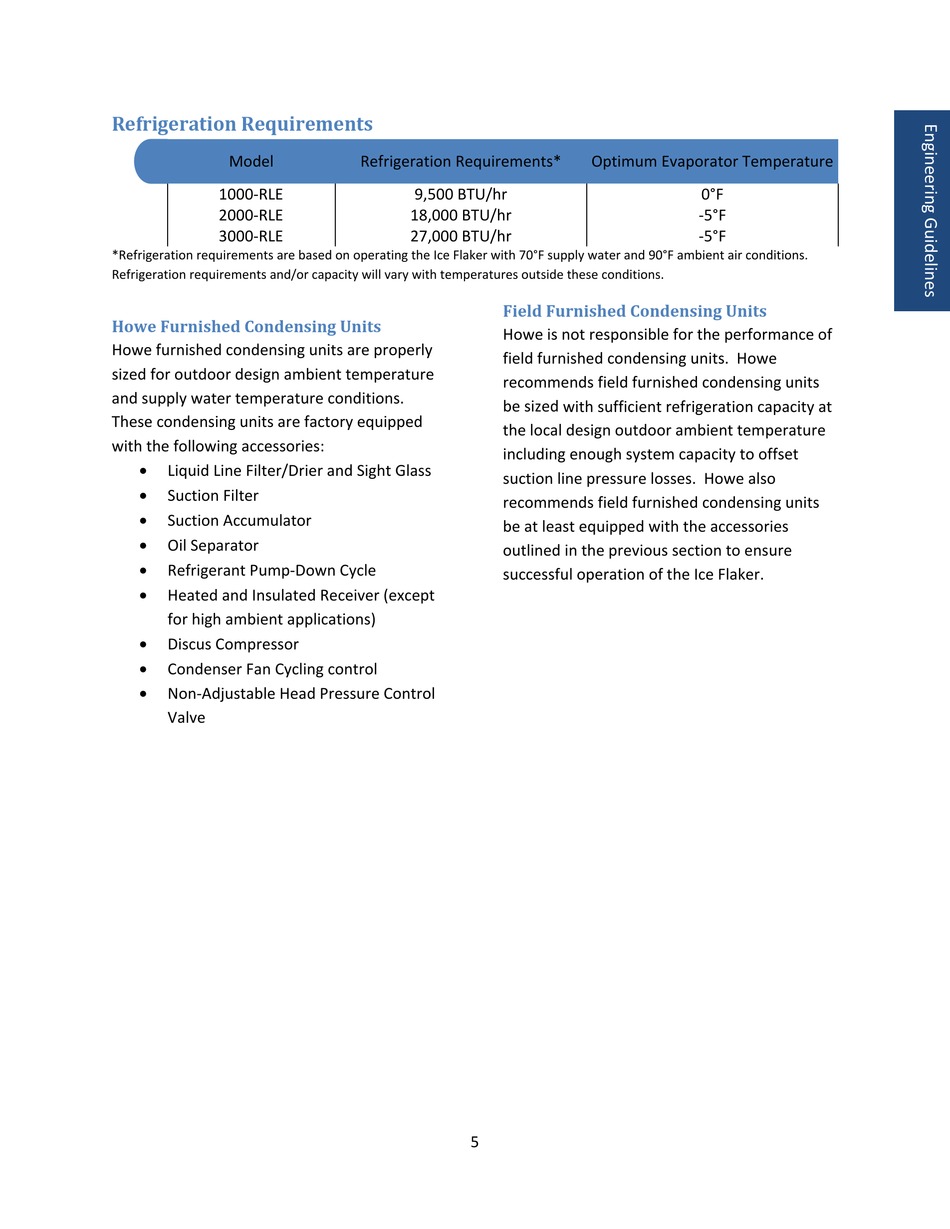

Refrigeration Requirements
Model
1000‐RLE
2000‐RLE
3000‐RLE
*Refrigeration requirements are based on operating the Ice Flaker with 70°F supply water and 90°F ambient air conditions.
Refrigeration requirements and/or capacity will vary with temperatures outside these conditions.
Howe Furnished Condensing Units
Howe furnished condensing units are properly
sized for outdoor design ambient temperature
and supply water temperature conditions.
These condensing units are factory equipped
with the following accessories:

Liquid Line Filter/Drier and Sight Glass

Suction Filter

Suction Accumulator

Oil Separator

Refrigerant Pump‐Down Cycle

Heated and Insulated Receiver (except
for high ambient applications)

Discus Compressor

Condenser Fan Cycling control

Non‐Adjustable Head Pressure Control
Valve
Refrigeration Requirements*
9,500 BTU/hr
18,000 BTU/hr
27,000 BTU/hr
Field Furnished Condensing Units
Howe is not responsible for the performance of
field furnished condensing units. Howe
recommends field furnished condensing units
be sized with sufficient refrigeration capacity at
the local design outdoor ambient temperature
including enough system capacity to offset
suction line pressure losses. Howe also
recommends field furnished condensing units
be at least equipped with the accessories
outlined in the previous section to ensure
successful operation of the Ice Flaker.
5
Optimum Evaporator Temperature
0°F
‐5°F
‐5°F
