Electrical Operation

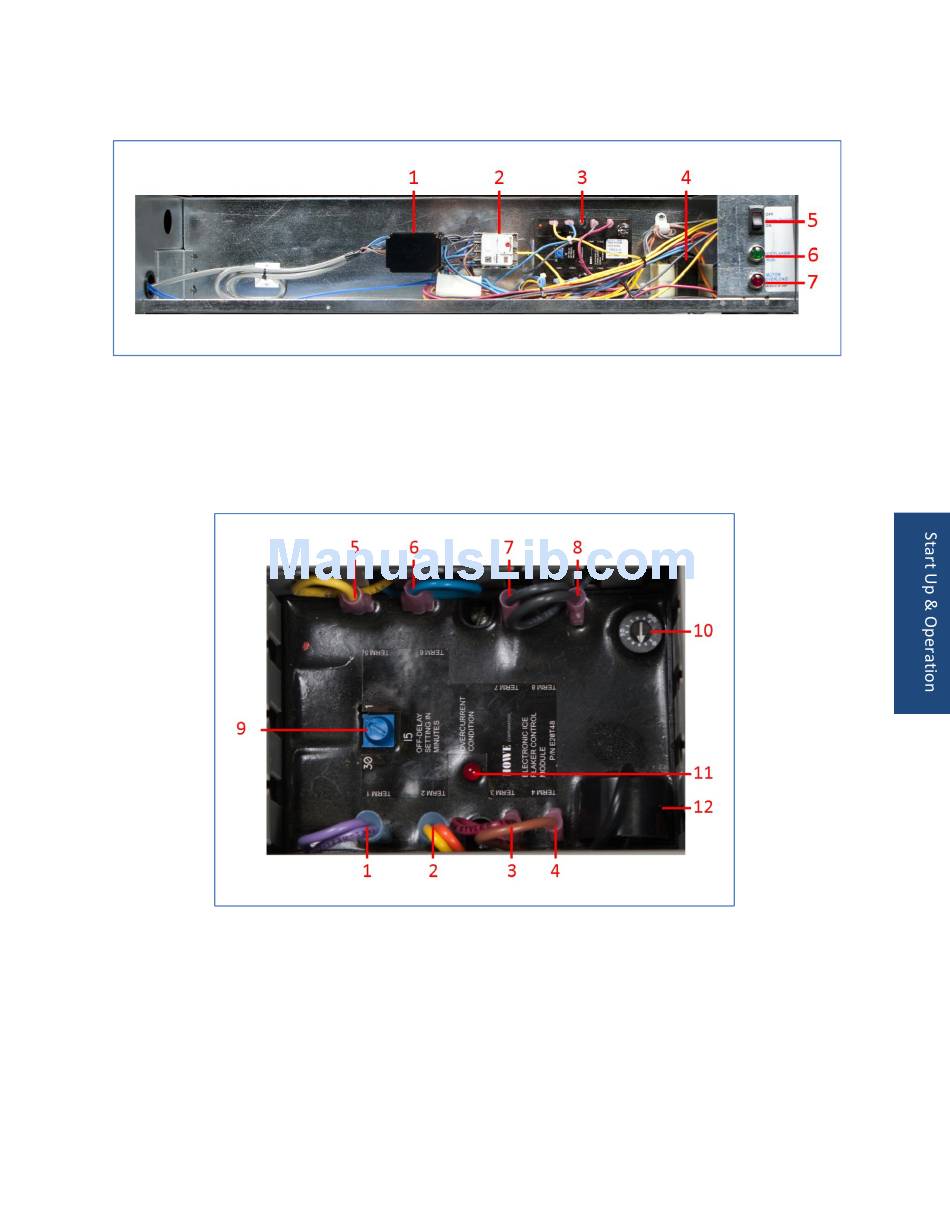

1. Level Control Relay (LC1)
2. Motor Relay (R1)
3. Control Module (CM)
4. Transformer (T1)
1. Term 1: 24V Input Power
2. Term 2: 24V Input Power
3. Term 3: Control Signal
4. Term 4: Motor Overload Reset
5. Term 5: Motor Overload Switch Leg
6. Term 6: Ice Flaker Run Switch Leg
5. Power Switch
6. Ice Flaker Run Indicator Light
7. Motor Overload Indicator Light
7. Term 7: Solenoid Valve Contact
8. Term 8: Solenoid Valve Contact
9. Off‐Delay Setting
10. Motor Overload Setting
11. Overcurrent Condition Indicator Light
12. Overload Sensing Coil
