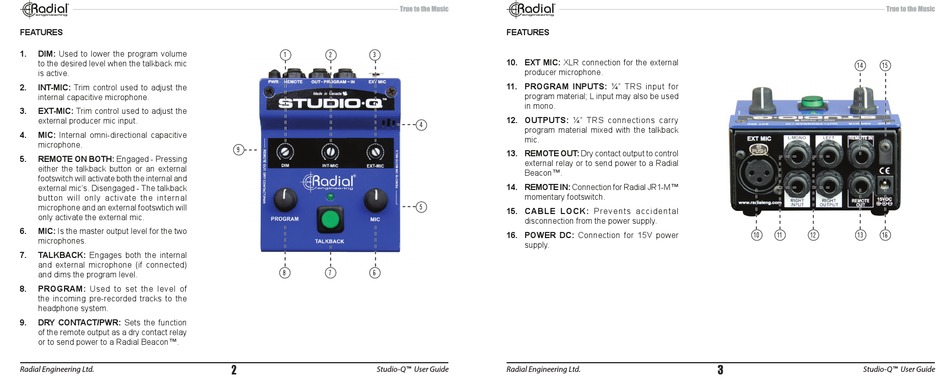

FEATURES
1. DIM: Used to lower the program volume
to the desired level when the talkback mic
is active�
2. INT-MIC: Trim control used to adjust the
internal capacitive microphone�
3. EXT-MIC: Trim control used to adjust the
external producer mic input�
4. MIC: Internal omni-directional capacitive
microphone�
5. REMOTE ON BOTH: Engaged - Pressing
either the talkback button or an external
footswitch will activate both the internal and
external mic's� Disengaged - The talkback
button will only activate the internal
microphone and an external footswtich will
only activate the external mic�
6. MIC: Is the master output level for the two
microphones�
7. TALKBACK: Engages both the internal
and external microphone (if connected)
and dims the program level�
8. PROGRAM: Used to set the level of
the incoming pre-recorded tracks to the
headphone system�
9. DRY CONTACT/PWR: Sets the function
of the remote output as a dry contact relay
or to send power to a Radial Beacon™�
Radial Engineering Ltd.
1 2 3
9
8 7 6
2
Studio-Q™ User Guide
FEATURES
10. EXT MIC: XLR connection for the external
producer microphone�
11. PROGRAM INPUTS: ¼" TRS input for
program material; L input may also be used
in mono�
12. OUTPUTS: ¼" TRS connections carry
4
program material mixed with the talkback
mic�
13. REMOTE OUT: Dry contact output to control
external relay or to send power to a Radial
Beacon™�
14. REMOTE IN: Connection for Radial JR1-M™
momentary footswitch�
5
15. CABLE LOCK: Prevents accidental
disconnection from the power supply�
16. POWER DC: Connection for 15V power
supply�
Radial Engineering Ltd.
14 15
10 11 12 13 16
3
