Summary of Contents for Idis DC-S1163F

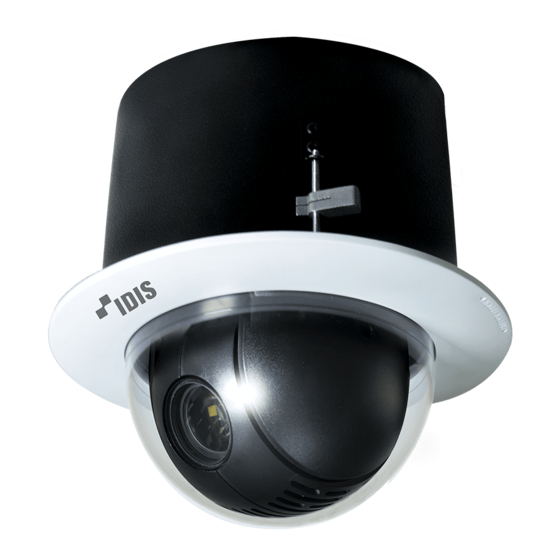

- Page 1 Network Camera Quick Guide DC-S1163F / DC-S1263F DC-S1163W / DC-S1263W DC-S1163WH / DC-S1263WH Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions (Uninterruptible Power Supply) system for by a qualified technician to restore the safe operation in order to prevent damage equipment to its normal operation. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Indoor And Outdoor
Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Some parts may differ depending on the situation. Network Camera Open Source Guide Quick Guide Screws (4ea.) Overview • Product color and design may vary depending on the model. • For more details on each part name, refer to the manual. - Page 5 Flushed Indoor Bracket Housing Outdoor Bracket Wall/Ceiling Mounting Hole Install Screw Hole Safety Wire Cable Guard M4 Screw Hole Mounting Clamp M5 Screw Hole Pipe Hole Cable Outdoor Sun Shield Network Port Power M5 Screw Hole Alarm In/Out M3 Screw Hole Audio In/Out, Video Out Network Camera...
-
Page 6: Camera Installation
Camera Installation Indoor In case that a universal nut is attached to a pipe Connect the sun shield and outdoor bracket first, then connect it to the pipe as follows: Screw the indoor bracket to the wall or ceiling by using the wall/ceiling mounting screws provided with the camera. - Page 7 Screw the sun shield to the outdoor bracket by In case that a universal nut is not attached to a pipe using the M5 screws provided with the camera. Connect the sun shield to the outdoor bracket as Connect external devices, the network cable, and follows: the power adapter.
-
Page 8: Specifications
7.87" x 7.87" (200mm x 200mm) Weight (Main Unit) 5.40 lbs. (2.45kg) Working Temperature DC-S1163F / DC-S1263F / DC-S1163W / DC-S1263W models 14°F ~ 122°F (-10°C ~ 50°C) (Starting Temperature: 32°F ~ 122°F (0°C ~ 50°C)) DC-S1163WH / DC-S1263WH models -40°F ~ 122°F (-40°C to 50°C) - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
