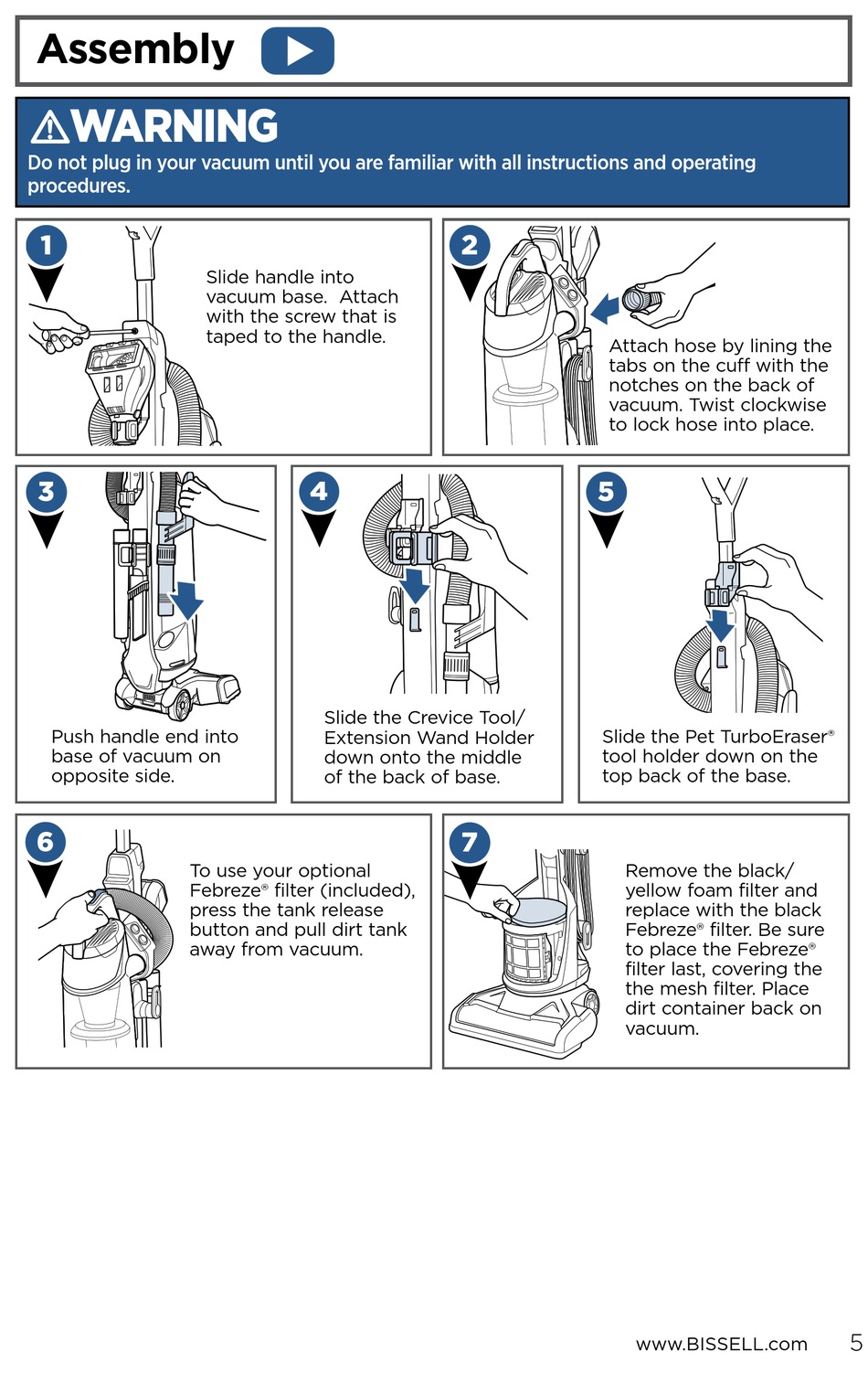

Assembly - Bissell POWERGLIDE LIFT-OFF PET PLUS 2043 SERIES User Manual

Assembly

WARNING
Do not plug in your vacuum until you are familiar with all instructions and operating
procedures.
1
3
Push handle end into
base of vacuum on
opposite side.
6
To use your optional
Febreze® filter (included),
press the tank release
button and pull dirt tank
away from vacuum.
Slide handle into
vacuum base. Attach
with the screw that is
taped to the handle.
4
Slide the Crevice Tool/
Extension Wand Holder
down onto the middle
of the back of base.
2
Attach hose by lining the
tabs on the cuff with the
notches on the back of
vacuum. Twist clockwise
to lock hose into place.
5
Slide the Pet TurboEraser®
tool holder down on the
top back of the base.
7
Remove the black/
yellow foam filter and
replace with the black
Febreze® filter. Be sure
to place the Febreze®
filter last, covering the
the mesh filter. Place
dirt container back on
vacuum.
www.BISSELL.com
5
