2001 FORESTER SERVICE MANUAL

BODY SECTION

This service manual has been prepared
to provide SUBARU service personnel
with the necessary information and data
for the correct maintenance and repair of
SUBARU vehicles.
This manual includes the procedures for
maintenance, disassembling, reassem-
bling, inspection and adjustment of com-
ponents and diagnostics for guidance of
experienced mechanics.
Please peruse and utilize this manual
fully to ensure complete repair work for
satisfying our customers by keeping their
vehicle in optimum condition. When
replacement of parts during repair work is
needed, be sure to use SUBARU genu-
ine parts.
All information, illustration and specifica-
tions contained in this manual are based
on the latest product information avail-
able at the time of publication approval.
FUJI HEAVY INDUSTRIES LTD.

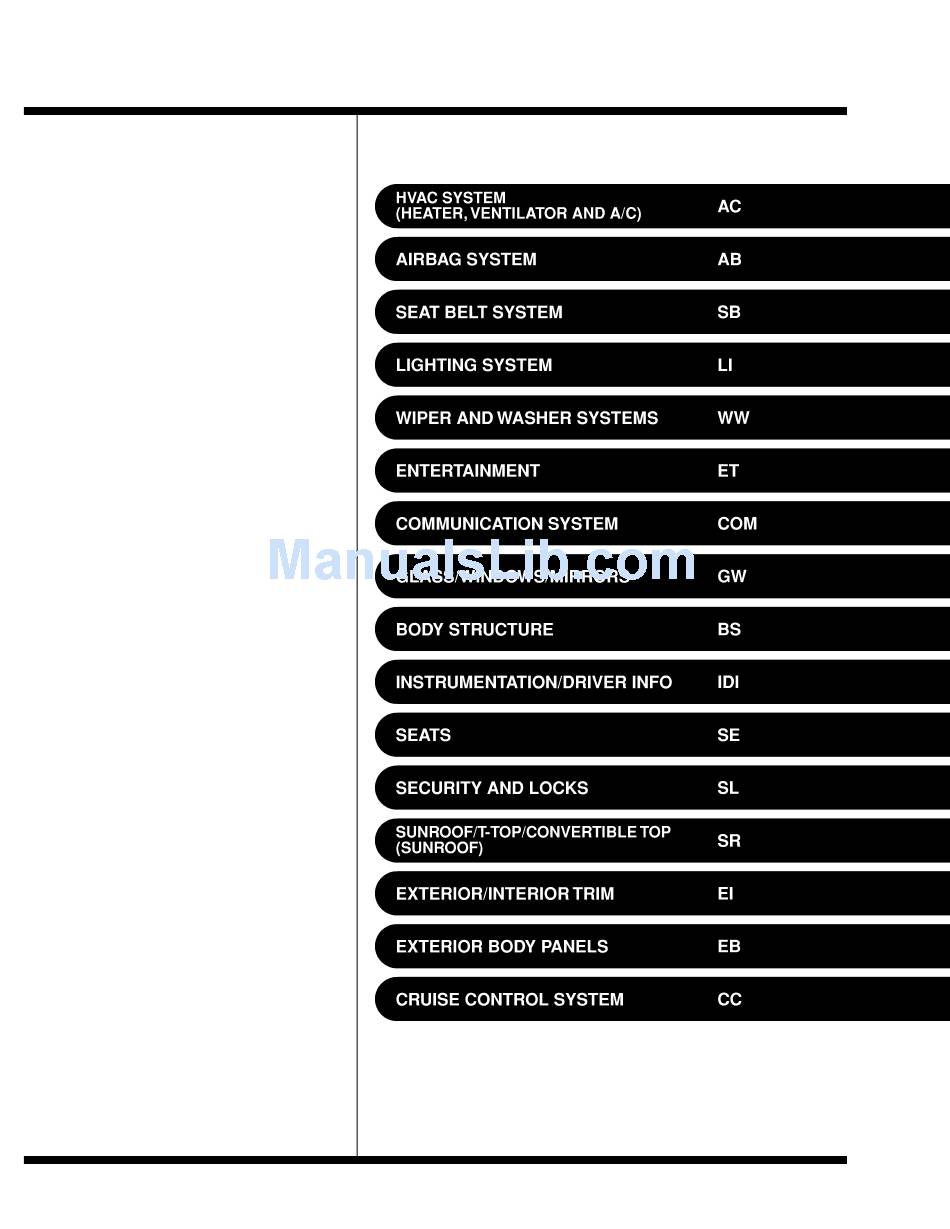

QUICK REFERENCE INDEX
G8050GE6

Advertisement

loading

Related Manuals for Subaru FORESTER2001

Summary of Contents for Subaru FORESTER2001

  • Page 1: Body Section

    When replacement of parts during repair work is needed, be sure to use SUBARU genu- ine parts. All information, illustration and specifica- tions contained in this manual are based on the latest product information avail- able at the time of publication approval.
  • Page 2 SEATS Page General Description..................2 Front Seat....................5 Rear Seat ....................6...

  • Page 3: General Description

    GENERAL DESCRIPTION Seats 1. General Description S908001 A: COMPONENT S908001A05 1. FRONT SEAT S908001A0501 S5M0440A (1) Lumbar lever (8) Lifter dial (15) Slide rail ASSY OUT (2) Lumbar cover (9) Hinge cover OUT (16) Bracket (3) Lumbar unit (10) Reclining lever (4) Headrest (11) Hinge ASSY Tightening torque: N·m (kgf-m, ft-lb)
  • Page 4 GENERAL DESCRIPTION Seats 2. REAR SEAT S908001A0505 S5M0508A (1) Backrest RH (7) Hinge LH Tightening torque: N·m (kgf-m, ft-lb) (2) Backrest LH (8) Cushion 10 (1.0, 7.2) (3) Headrest OUTSIDE (9) Striker 25 (2.5, 18.1) (4) Headrest CENTER (10) Cap (5) Hinge RH (11) Webbing guide (6) Hinge CENTER...
  • Page 5 GENERAL DESCRIPTION Seats B: CAUTION S908001A03 ¼ Take care not to contaminate or damage seat surface. ¼ While loading to or unloading to vehicle, take care not to contact body. ¼ When removing front seat from a side airbag loaded vehicle, follow cautions given in the airbag section.

  • Page 6: Front Seat

    FRONT SEAT Seats 2. Front Seat CAUTION: S908343 ¼ When removing seat from vehicle, take care A: REMOVAL not to damage body, seat, or trim. S908343A18 ¼ After the front seat has been removed from 1) While operating button (located on top of side airbag equipped vehicle, store it as backrest), lift headrest out with hand placed instructed in AIRBAG REPAIR SECTION.

  • Page 7: Rear Seat

    REAR SEAT Seats 3. Rear Seat S908350 A: REMOVAL S908350A18 1) Remove bolts securing hinges (located at front of cushion) to body. 2) Slightly raise front of cushion while pushing down on cushion in the direction of “A”. With cush- ion held in that position, move it forward until it is unhooked.
