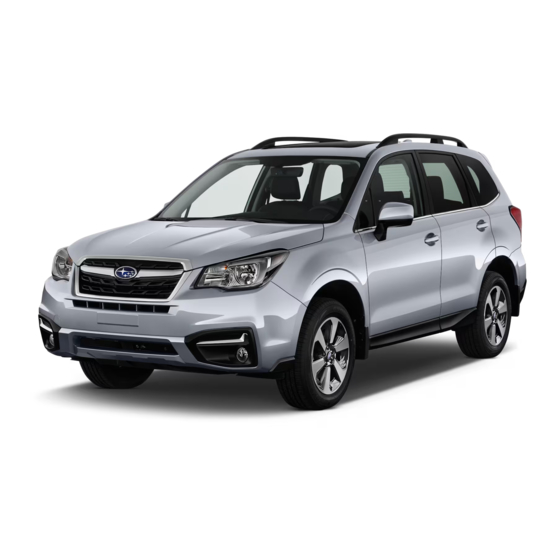

Subaru Forester 2018 Quick Manual

Subaru Forester 2018 Quick Manual

Hide thumbs Also See for Forester 2018:

Advertisement

Quick Links

Forester
2018
Quick Guide
Love. It's what makes a Subaru, a Subaru.

Advertisement

loading

Related Manuals for Subaru Forester 2018

Summary of Contents for Subaru Forester 2018

  • Page 1 Forester 2018 Quick Guide Love. It’s what makes a Subaru, a Subaru.
  • Page 2 Guide is optional at extra cost. Specific options may be available only in combination with other options. Specific combinations of equipment or features may vary from time to time, and by geographic area. Subaru of America, Inc. reserves the right to change or discontinue at any time, without notice: Prices,...

  • Page 3: Table Of Contents

    Table of Contents Getting Started Instrument Panel Gauges 8-11 12-13 Personalize Controls 14-21 22-23 While Operating Safety/In Case of Emergency 24-25 26-28 Additional Information...
  • Page 4 Remote Keyless Entry 1. Lock/Arm 3. Unlocking the Rear Gate • Press to lock all doors and the rear gate. • Press to unlock the rear gate. • If any of the doors or the rear gate are 4. Panic Alarm not fully closed, an electronic chirp •...
  • Page 5 Seating 10-Way Power Driver’s Seat (if equipped) 2. Seatback 1. Forward/Backward, Angle and Height Move the switch in the Move the switch toward the front corresponding direction to adjust or rear to move the seat forward the angle of the seatback. or backward.
  • Page 6 Seating Seat Controls 1. Forward/Backward Pull up on the lever below the front of the driver’s seat to move the seat forward or backward. 2. Raise/Lower Seat Cushion To adjust the height of the driver’s seat, pull up or push down the seat height adjustment lever, located on the lower left side front of the seat.
  • Page 7 Folding the Rear Seat Lower the headrests. Pull up on the release knob on the seat side that you want to fold down. To return the seatback to its original position, raise the seatback until it locks into place, making sure that it is securely locked.

  • Page 8: Instrument Panel

    Instrument Panel PAGE 14, 22 8-11 NUMBER...
  • Page 9 16-19 Clock Press the “+” button to advance the time or the “–” button to reverse the time. For vehicles with a navigation system, please refer to the separate “Operating Instructions for Navigation System.”...

  • Page 10: Gauges

    Gauges Tachometer Trip meter and odometer Forester 2.5i Forester 2.5i Premium Immediate Attention Caution Informational Trip meter A/B selection and trip meter reset knob Seatbelt warning Brake system Front passenger Hot coolant temperature/ seatbelt warning Cold coolant temperature SRS airbag system High beam indicator light AT OIL TEMP Security indicator light...
  • Page 11 Speedometer Information display selection knob Fuel gauge Vehicle Dynamics Control / Vehicle Dynamics Incline start assist Control operation Vehicle Dynamics Control OFF Turn signals CHECK ENGINE/ Front fog light indicator Malfunction indicator light (if equipped) Tire pressure warning light Headlight indicator light Front passenger airbag ON Cruise control (Located on overhead console)
  • Page 12 Gauges Tachometer Forester 2.5i Limited Forester 2.5i Touring Forester 2.0i XT Premium Forester 2.0i XT Touring Immediate Attention Caution Informational Trip meter and odometer Seatbelt warning Brake system Front passenger Hot coolant temperature/ seatbelt warning Cold coolant temperature SRS airbag system High beam indicator light AT OIL TEMP Security indicator light...
  • Page 13 Fuel gauge Speedometer Trip meter A/B selection and trip meter reset knob Vehicle Dynamics Keyless Access with Control / Vehicle Dynamics Push Button Start Control operation System (if equipped) Vehicle Dynamics Control OFF Incline start assist CHECK ENGINE/ Turn signals Malfunction indicator Front fog light indicator Tire pressure warning light...

  • Page 14: Personalize

    Personalize Tilt and Telescopic Steering Column Push the lever down firmly to adjust the height and lengthwise position of the column; firmly push the lever back up to lock the column in place. Do not adjust while driving. Combination Meter Display Controls (if equipped) Use the controls to display and switch selected items in the combination meter display.
  • Page 15 Please see your Owner’s Manual for programming instructions or visit www.subaru.com/homelink to view a how-to video.

  • Page 16: Controls

    Controls Light Controls Push forward to change from low Turns on headlights, instrument beam to high beam. Pull the lever panel illumination, parking lights, back to center to return to low beam. tail lights and license plate lights. Push up for right turn signal.
  • Page 17 INT. HIGH Windshield Wipers To turn on the wipers, press the wiper control lever down one level for intermittent, two levels for low, or three levels for high speed. Return the lever to the “OFF” position to stop the wipers. For a single wipe, move the lever up. To spray washer fluid, pull and hold the lever toward you.
  • Page 18 Controls Manual HVAC System (if equipped) 1. Temperature Control Dial 5. Rear Window Defogger Button Rotate the temperature control dial from Press the rear window defogger button blue for cool, to red for warm. to turn on the defogger. The defogger will automatically shut off after about 2.
  • Page 19 Located in the multi-function Automatic Climate display; top Control System center of dash (if equipped) 1. Automatic On and Off This system automatically controls 4. Fan Speed Control Knob outlet air temperature, fan speed, Rotate the fan speed control air flow distribution, air inlet control, knob to select one of seven and air conditioner compressor different fan speed positions.
  • Page 20 Controls Dual Zone Automatic Climate Control System (if equipped) Operation in Manual Mode 1. Automatic On and Off This system automatically controls 3. Recirculated/Outside Air Button outlet air temperature, fan speed, Press the air inlet selection button to air flow distribution, air inlet control, prevent outside air from being drawn and air conditioner compressor into the passenger compartment.
  • Page 21 Located in the multi-function display; top center of dash 6. Dual Button Press the “DUAL” button to activate or deactivate the dual mode. Dual mode makes it possible to have separate temperature settings for the driver’s side and passenger’s side. 7.
  • Page 22 Controls Steering Wheel Audio Controls Push the top (+) of the switch to With any of the radio modes increase volume or the bottom (–) selected, push the switch left or of the switch to decrease volume. right to skip through your presets. In CD mode, push the switch left or right to skip forward or back a track.
  • Page 23 Cruise Control To activate the cruise control, press To resume your speed after canceling, push the the “ ” button. The indicator light switch to the “RES” side. on the instrument panel will turn on. To deactivate cruise control, press the “ ”...

  • Page 24: While Operating

    While Operating Instrument Panel Switches (lower left) Please refer to your Owner’s Manual for details on these switches. 1. Steering Responsive Headlights OFF switch (if equipped) 2. Traction Mode / Vehicle Dynamics Control OFF switch 3. Blind Spot Detection / Rear Cross Traffic Alert OFF switch (if equipped) 4.
  • Page 25 Automatic Transmission Shift Mode The automatic transmission gives you ultimate control with two different driving modes: Normal Mode and Low Mode. Normal Mode When the selector lever is in the “D” (Drive) position, the transmission is in Normal shift mode. The shift position indicator on the instrument panel shows “D”, and the transmission automatically shifts into a suitable forward gear.

  • Page 26: Safety/In Case Of Emergency

    Safety/In Case of Emergency Child Restraint System For maximum safety, first carefully read the LATCH system instructions from the device manufacturer, as well as the installation instructions in your Owner’s Manual, to properly install the LATCH compatible restraint system. Use the appropriate seatbelts or anchorages provided in your vehicle.
  • Page 27 A jack and other maintenance tools Subaru Roadside Assistance is free are stored in the tool bucket in the and standard on every 2018 Subaru center of the spare tire, located in vehicle. Coverage is automatic; there the trunk or cargo area. Raise the are no forms to complete.

  • Page 28: Additional Information

    Additional Information Fuel • 2.5 liter DOHC Non-turbo models use regular unleaded gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s Manual for more detailed information. • 2.0 liter DOHC Turbo model’s engine is designed to operate at maximum performance using unleaded gasoline with an octane rating of 93 AKI or higher.
  • Page 29 Engine Oil Use only the following oils: • ILSAC GF-5, which can be identified with the ILSAC certification mark (Starburst mark). • Or API classification SN with the words “RESOURCE CONSERVING”. - 2.5 liter DOHC Non-turbo models use 0W-20 synthetic, replacement interval 6,000 miles under normal driving conditions.
  • Page 30 Engine Compartment Please refer to your Owner’s Manual for more information. 2.5i Engine Note: Callouts apply to both engines. 1. Air Cleaner Element 6. Engine Coolant Reservoir 2. Engine Oil Dipstick 7. Windshield Washer Tank 3. Radiator Cap 8. Battery 4.
  • Page 31 Manuals & Warranties Review vehicle manuals & maintenance schedule Review warranty information (Basic, Powertrain, Tire, Wear Items & Adjustments) Review Subaru Roadside Assistance 1 (800) 261-2155 Retailer Orientation Parts & Service departments locations & hours Service Advisor introduction and/or business card Service appointment &...
  • Page 32 Parking Brake operation STARLINK Audio System, Bluetooth & Safety/Security Bluetooth — Pair owner’s phone(s) & show operation (Download SUBARU STARLINK and MySubaru Apps*) STARLINK Audio and Navigation* system controls Safety, Comfort & Convenience All Wheel Drive System, Emergency towing of AWD, VDC, X-MODE ®...
  • Page 33 Subaru of America, Inc., Subaru Plaza, P.O. Box 6000, Cherry Hill, NJ 08034-6000 MSA5B1802A Issued July 2017 Printed in USA 07/17...
