EasyLog EL-USB-1 PRO Quick Start Manual page 3

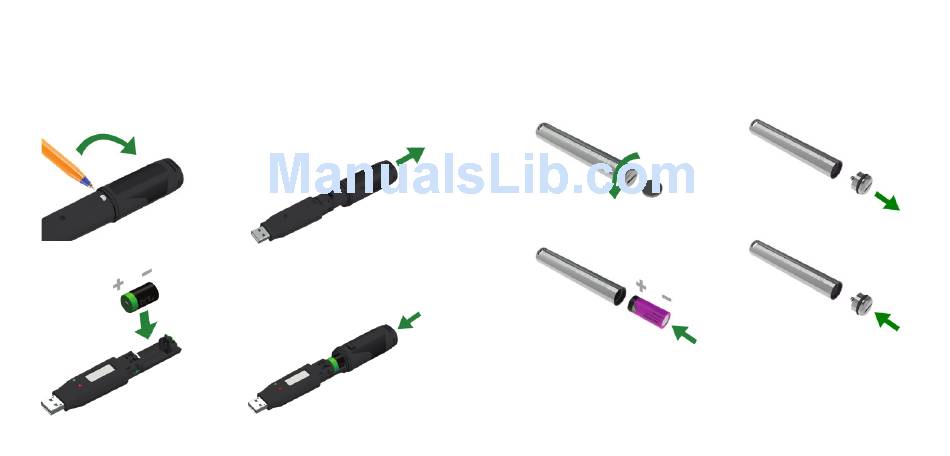

REPLACING YOUR DATA LOGGER'S BATTERY
Your data logger is provided with a 3.6V 1/2AA battery already installed. You
can change the battery by following the instructions below.
Replacement batteries are available from www.lascarelectronics.com.
1
3
EL-USB-1 PRO
Before using the data logger you will need to insert the 3.6V 2/3AA
High Temperature battery provided, following the instructions below.
Replacement batteries are available from www.lascarelectronics.com, part
number: BAT 3V6 2/3AA H TEMP.
2
EL-USB-1-RCG
The EL-USB-1-RCG's battery is preinstalled. To charge the battery, connect
to a USB port until the green LED shows. The rechargeable battery should
4
only be replaced by an authorized supplier.
1
3
2
4
