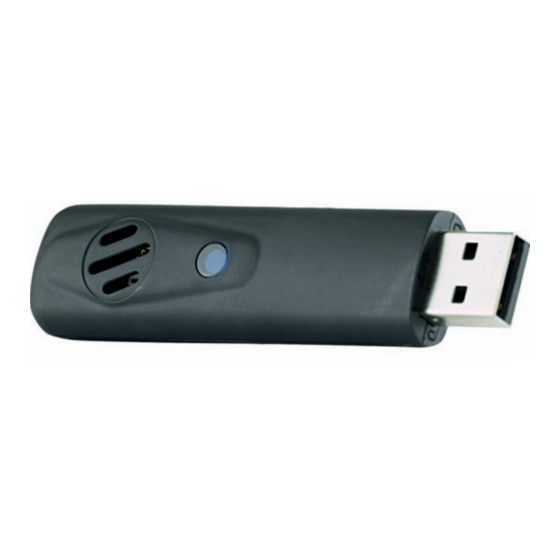

EasyLog EL-USB-RT Quick Start Manual

DOWNLOAD AND INSTALL SOFTWARE

Windows™ 7/8/10 (32-bit & 64-bit)
1. Visit www.lascarelectronics.com/software/easylog-rt
and download the software version for your computer.
• Download the EasyLog RT version for 32-bit
versions of Windows XP, Vista and 7.
• Download EasyLog RT 64-bit Compatible for
64-bit versions of Windows 7, 8 and 10.
1. Insert the USB data logger into a USB port on the
computer. The following screens should automatically
appear as the EL-USB-RT uses a standard built in
Windows driver.
You have successfully installed the necessary
software and driver for your EL-USB-RT data
logger.

USING THE SOFTWARE

Insert the data logger into an available USB port on your PC.
You can access the software in two ways: An icon will
be displayed in the "Notification Area" of your screen.
double click the EL-USB-RT
You can also
icon on the desktop.
The main screen will show you 'Simple View' - the current temperature,
humidity and dew point along with a rolling graph of the readings taken in
the last minute.
To view a detailed graph, click on "Detailed View". This will display
all the data recorded for the current session. This graph does not
automatically update.
To include the latest data readings select "Update".
To view an area of this graph in more detail,
use the left mouse button to drag a rectangle
around the region to be magnified. The
previous view can be restored by clicking on
"Zoom Out".
Quick Start Guide
2. Installation is now complete
To access the software
features, right click
on the icon within the
"Notification Area".
You will see the
following menu:
EL-USB-RT
