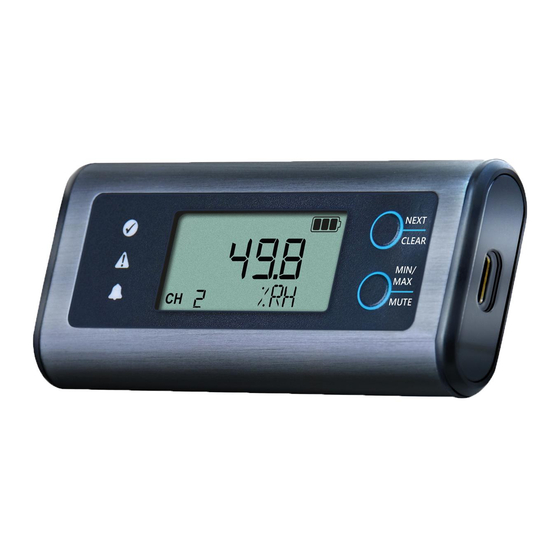

Getting to Know Your EL-SIE Logger

Access Screws

nd Quality Products Online at:

Quick Start Guide

Display

GlobalTestSupply

www.

Function

Buttons

USB Port

Install the Batteries

The unit is powered by two user replaceable

non-rechargeable AM alkaline batteries.

Other battery types are not recommended.

Loosen the screws and remove the end

cap, then fit the batteries in the orientation

shown on the label. Replace the end cap

and tighten the screws carefully until

secure.

.com

sales@GlobalTestSupply.co

EL-SIE

Need help?

Do you have a question about the EL-SIE and is the answer not in the manual?

Page 1 EL-SIE Easylog Quick Start Guide Getting to Know Your EL-SIE Logger Function Buttons Display Access Screws USB Port Install the Batteries The unit is powered by two user replaceable non-rechargeable AM alkaline batteries. Other battery types are not recommended. Loosen the screws and remove the end cap, then fit the batteries in the orientation shown on the label.
Page 2 Connect to your PC or Mac No software is needed! To configure, view and analyse the data from your EL-SIE, simply follow these steps: 1. Connect the logger to your computer using the USB cable supplied 2. Open your web browser and into the address bar type http://EasyLog.local 3.
Page 3 Display Logger Status Explanation USB Connected The logger is connected via the USB cable Push to Start The logger is set up for Push to Start logging, a Display Logger Status Explanation long press of either Logger Running The logger is still logging button will start logging but can be stopped by a Delayed Start...
Page 4 Screen Button Press Function Event Recorded Push to Start Long Start logging Triggered Start Delayed Start Channel – Short Move to next channel or STOP LOG Current reading Long Clear alarm hold for all channels Clear Held Alarms Bottom Short Show Min reading for this channel Long Mute alarm sounder...
