- Page 1 EL-DataPad Quick Start Guide DataLoggerStore 1.888.610.766 www. .com Shop for Data Logging products online at:...

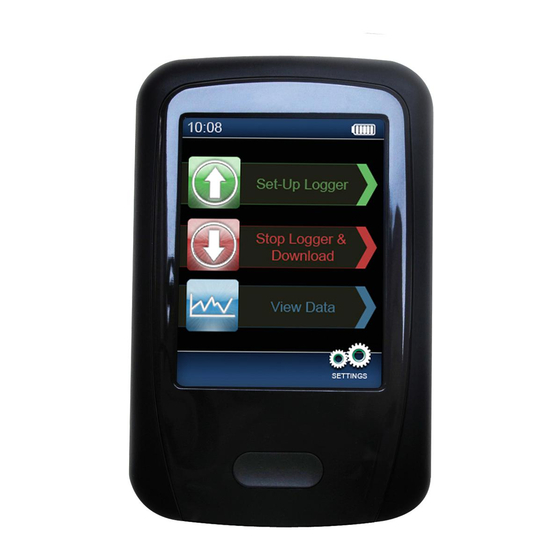

- Page 2 EasyLog USB data loggers. This quick start guide provides basic information to help you set up your new product for the first time and begin using the EL-DataPad with your chosen data logger. Using Your EL-DataPad for the First Time 1.
- Page 3 Connecting an EL-USB Data Logger Insert your EL-USB Data Logger into the USB port on the top of the EL-DataPad. Once connected, you can download existing data from that unit, or set-up your logger for use. Set-Up Logger Note: If you are setting up a data logger that is already logging data follow ‘Stop Logger &...
-
Page 4: View Data
Stop Logger & Download Connect the data logger to the EL-DataPad, press the red arrow and follow the on-screen instructions. View Data The EL-DataPad enables you to view graphical data that is stored in memory. To view data, press the blue graph icon and select the file you wish to view by following the on-screen instructions. - Page 5 Graphical data is displayed in the following formats: Trend This graph is based on data from an EL-USB-2 logger. Legend & Summary DataLoggerStore 1.888.610.766 www. .com Shop for Data Logging products online at:...
- Page 6 Excel for further ® analysis. Recharging The cable provided with the EL-DataPad is used for data transfer and recharging. The EL-DataPad will automatically start recharging once it is connected to a PC. To use less power decrease the backlight time setting.
