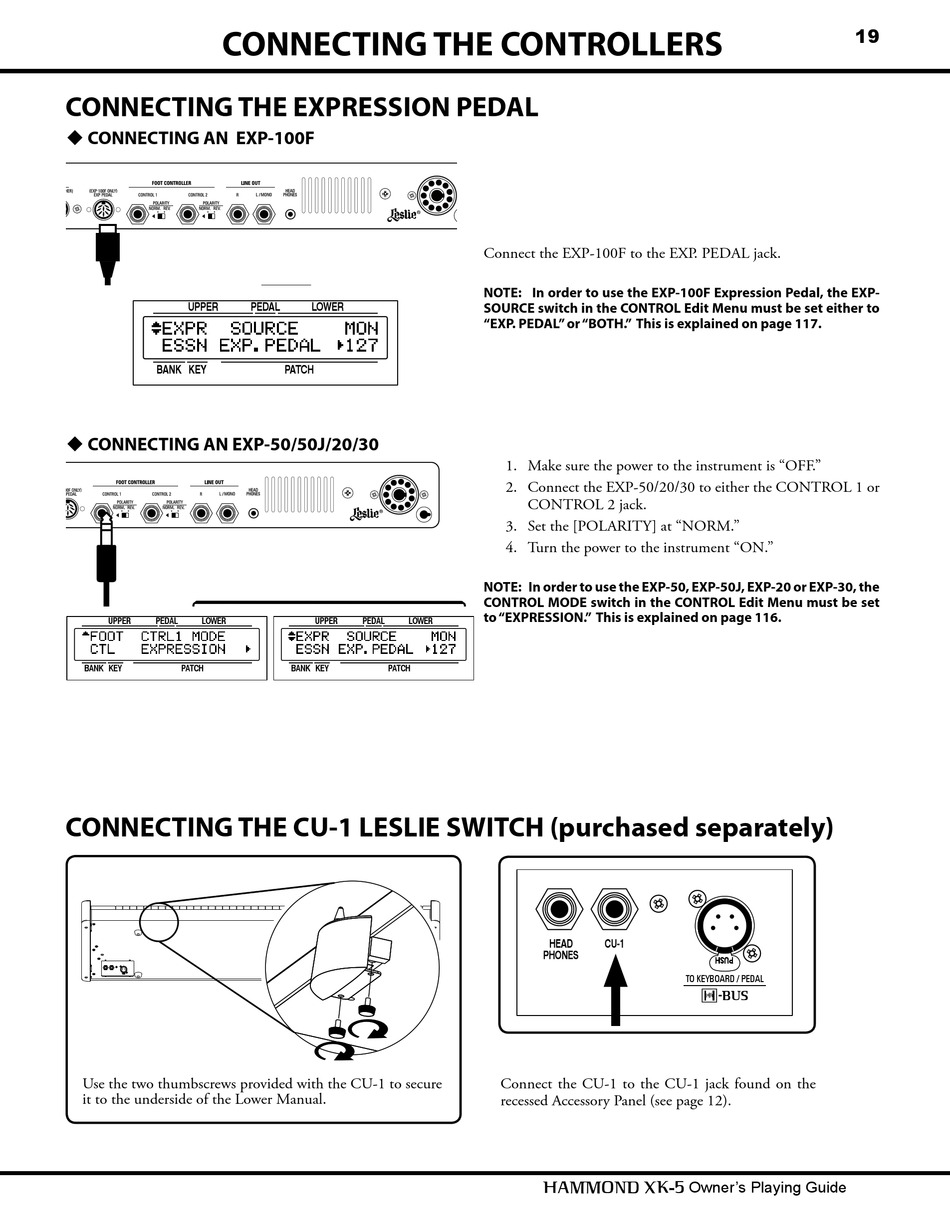

CONNECTING THE CONTROLLERS

CONNECTING THE EXPRESSION PEDAL

u CONNECTING AN EXP-100F
UPPER
BANK KEY
u CONNECTING AN EXP-50/50J/20/30
UPPER
PEDAL
LOWER
BANK KEY
PATCH

CONNECTING THE CU-1 LESLIE SWITCH (purchased separately)

Use the two thumbscrews provided with the CU-1 to secure
it to the underside of the Lower Manual.
PEDAL
LOWER
PATCH
UPPER
PEDAL
LOWER
BANK KEY
PATCH
Connect the EXP-100F to the EXP. PEDAL jack.
NOTE: In order to use the EXP-100F Expression Pedal, the EXP-
SOURCE switch in the CONTROL Edit Menu must be set either to
"EXP. PEDAL" or "BOTH." This is explained on page 117.
1. Make sure the power to the instrument is "OFF."
2. Connect the EXP-50/20/30 to either the CONTROL 1 or
CONTROL 2 jack.
3. Set the [POLARITY] at "NORM."
4. Turn the power to the instrument "ON."
NOTE: In order to use the EXP-50, EXP-50J, EXP-20 or EXP-30, the
CONTROL MODE switch in the CONTROL Edit Menu must be set
to "EXPRESSION." This is explained on page 116.
HEAD
CU-1
PHONES
Connect the CU-1 to the CU-1 jack found on the
recessed Accessory Panel (see page 12).
HA<O> XK-5 Owner's Playing Guide
19
TO KEYBOARD PEDAL
