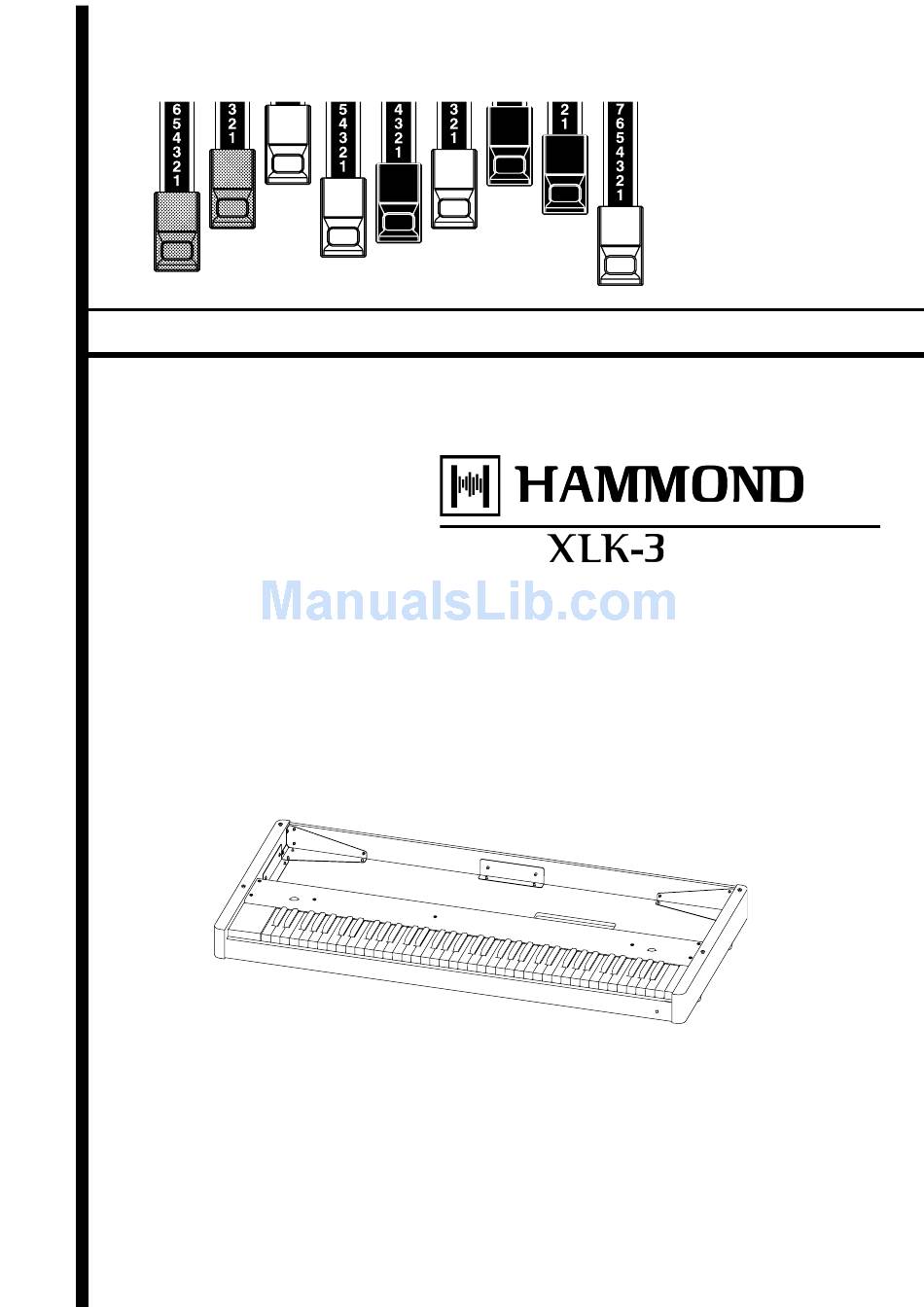

Hammond XLK-3 Owner's Manual

Lower keyboard unit
Hide thumbs Also See for XLK-3:

Advertisement

Model
Thank you, and congratulations on your choice of a
Hammond XLK-3.
The XLK-3 is the lower keyboard unit for Hammond
XK-3.
In order to get the most out of this instrument for many
years to come, first take the time to read this manual in
full.
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLK-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hammond XLK-3

  • Page 1 Model Thank you, and congratulations on your choice of a Hammond XLK-3. The XLK-3 is the lower keyboard unit for Hammond XK-3. In order to get the most out of this instrument for many years to come, first take the time to read this manual in full.
  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE DETAILED SAFETY INSTRUCTIONS: All the safety and operation instructions should be read before the appliance is operated. Retain Instructions: The safety and operation instructions should be retained for future reference. Heed Warnings: All warnings on the appliance and in the operation instructions should be adhered to. This symbol indicates information that, if ignored or applied incorrectly, CAUTION creates the possibility of death or serious personal injury.
  • Page 3 This symbol indicates information that, if ignored or applied incorrectly, ATTENTION creates the possibility of personal injury or property damage. Heat: Do Not Pull the Cord: The appliance should be situated away from Be sure to grasp the AC adaptor when unplugging heat sources such as rediators, heat registers, it from a wall outlet.
  • Page 4: How To Assemble

    HOW TO ASSEMBLE Operate carefully to avoid pinching your fingers or dropping anything on your feet. Use a Hammond ST-XLK3 or any other stable stand with 4 legs. Do not use any singe-column type or X-frame type stand. SIDE VIEW Mount the XLK-3 on the keyboard stand.
  • Page 5 HOW TO HOOK-UP Fix the cables by using cable clamps as the need arises. Place the cable labels as the need arises. Owner’s Manual...
  • Page 6: How To Set Up

    Transmitting Velocity: The XLK-3 senses no velocity Always the maximum value is transmitted in default. For sensing and sending the velocity, turn on the power while pressing one of the Preset Keys on the left hand side of the XLK-3. Owner’s Manual...
  • Page 7 Light Light Light The Preset Keys on the XLK-3 are used to recall the LOWER (and the PEDAL) Preset independently. For example, when you touch the Preset Key [E] of XLK-3 during the Combination Preset of the XK-3 is in “F-D”, it recalls the LOWER and the PEDAL Parts “F-E”, while the UPPER remains in “F-D”.
  • Page 8 But do not use the spacer attached to CU-1. XLK-3 can be at- tached the CU-1 directly. The XLK-3 has 3 holes to attach the CU-1, you can choose the mounting on 2 positions. Use the two thumb screws to mount the CU-1 in the desired position.
  • Page 9: Troubleshooting

    TROUBLE SHOOTING In such cases as follows: The XLK-3 does not turn on when the XK-3 is switched on. The 8-pin cable used is not right. >> Use only a 8-pin cable supplied with the XLK-3. XLK-3 is powered through the 8-pin cable.
  • Page 10: Midi Implementation

    MIDI IMPLEMENTATION [Hammond MIDI Keyboard] Date: 16-Apr-2004 MIDI Implementation Chart Model: XLK-3 Version: 1.0 Function Transmitted Recognized Remarks Default Basic Channel Changed Default Mode Messages Altered ***** Note 36 - 96 Number : True Voice ***** Note ON O *1...
  • Page 11: Specifications

    Although every attempt has been made to insure the accuracy of the descriptive contents of this Manual, total accuracy cannot be guaranteed. Should the owner require further assistance, inquiries should first be made to your Authorized Hammond Dealer. If you still need further assistance, contact Hammond at the following addresses:...
  • Page 12 Printed in Japan 00457-40102 V1.00-050623...
