Summary of Contents for Philips BRILLIANCE 221C5

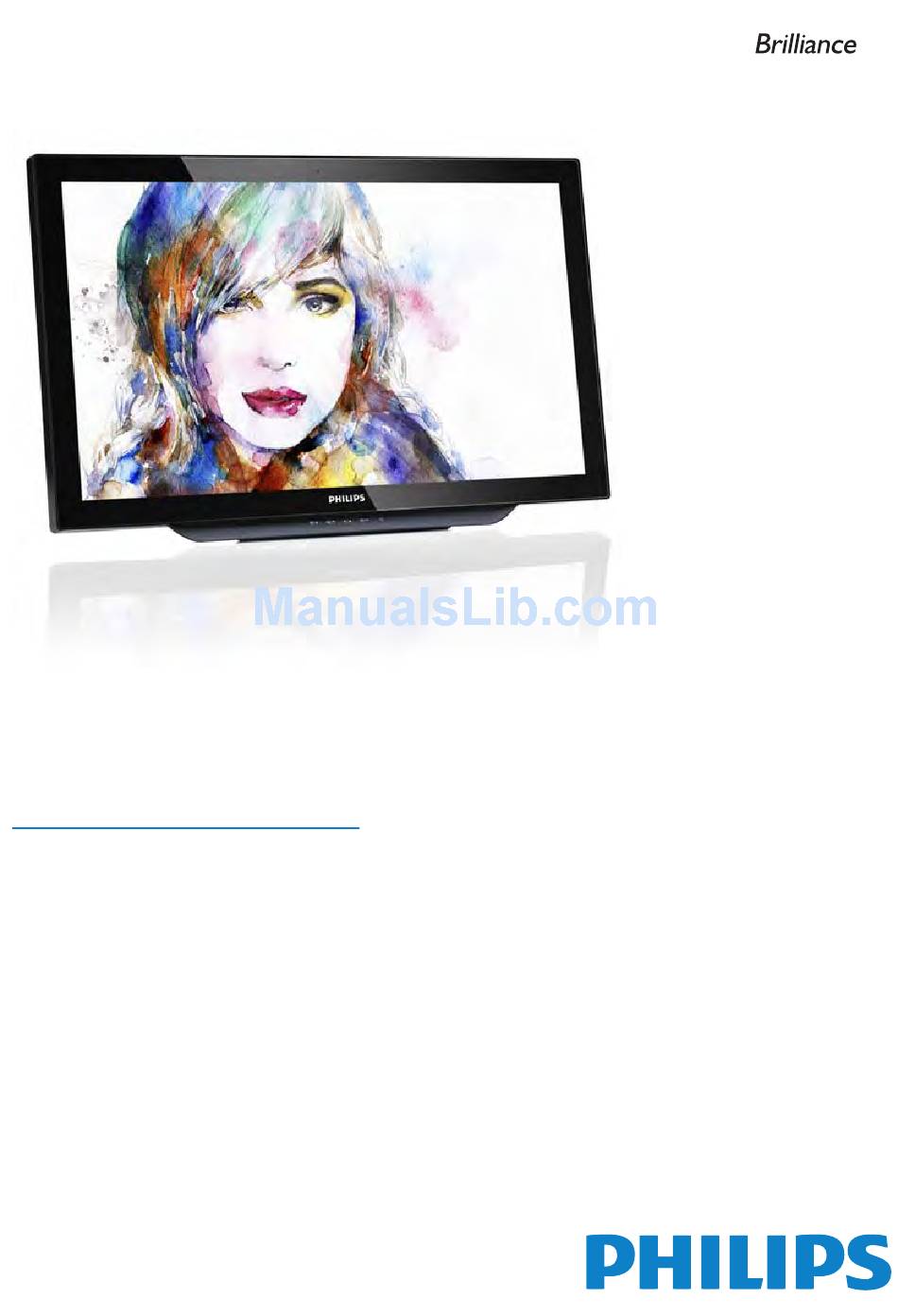

- Page 1 221C5 www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...
-
Page 2: Table Of Contents
7.1 Resolution & Preset Modes....22 8. Power Management ......23 9. Regulatory Information ......24 10. Customer care and warranty ...29 10.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..........29 10.2 Customer Care & Warranty ....31 11. Troubleshooting & FAQs ....34 11.1 Troubleshooting ...........34... -
Page 3: Important
• Please use approved power cord provided This electronic user’s guide is intended for by Philips all the time. If your power cord anyone who uses the Philips monitor. Take time is missing, please contact with your local to read this user manual before you use your service center. -
Page 4: Notational Descriptions
1. Important lifetime, please use the monitor in a Note location that falls within the following Consult a service technician if the monitor temperature and humidity ranges. does not operate normally, or you are not sure what procedure to take when the operating •... -
Page 5: Disposal Of Product And Packing
WEEE performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible,... -
Page 6: Setting Up The Monitor
前请阅读使用说明 User’s Manual 保留备用 Monitor drivers SmartControl software DC power input Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke * HDMI Cable VGA Cable Philips N.V. VGA input... -
Page 7: Operating The Monitor
What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below: ... -
Page 8: The Osd Menu
2. Setting up the monitor The OSD Menu Resolution notification Below is an overall view of the structure of This monitor is designed for optimal the On-Screen Display. You can use this as a performance at its native resolution, 1920 × reference when you want to work your way 1080 @ 60 Hz. -
Page 9: Detach The Hinge For Vesa Mounting
2. Setting up the monitor Note 2.3 Detach the hinge for VESA This monitor accepts a 75mm x 75mm VESA- mounting Compliant mounting interface. Before you start detaching the hinge, please follow the instructions below to avoid any possible damage or injury. 1. -
Page 10: Image Optimization
H ow does it work? brightness, contrast and color temperature of the monitor. SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed • Office: Enhances text and dampens on your screen. Based on a scenario you select,... -
Page 11: Smartcontrast
3. Image Optimization moving objects on screen, enhance contrast 3.3 Philips SmartControl Premium ratio for bright and dark scheme, this The new SmartControl Premium software profile delivers the best gaming experience by Phillips allows you to control your monitor for gamers. - Page 12 3. Image Optimization • You can adjust more options without wizard by Standard pane. Start with Standard pane Adjust menu • Adjust Menu allows you to adjust Brightness, Contrast, Focus, Position and Resolution. • You can follow the instruction and do the adjustment.
- Page 13 3. Image Optimization Color menu • Color Menu allows you to adjust RGB, Black Level, White Point, Display Gamma, Color Calibration, and SmartImage (Please refer to SmartImage section). • You can follow the instruction and do the adjustment. • Refer to below table for sub-menu item base on your input.
- Page 14 3. Image Optimization SmartImage 1. "Show Me" starts color calibration tutorial. 2. Start - starts the 6-step color calibration Allow users to change setting for better display sequence. setting based on content. 3. Quick View loads the before/after images. When Entertainment is set, SmartContrast and 4.
- Page 15 3. Image Optimization Options menu set to run at startup will not load when this box is unchecked (Disabled). Options>Preferences - Will only be active when selecting Preferences from the drop- • Enable transparency mode (Windows 7, down Options menu. On a non-supported Vista, XP).
- Page 16 3. Image Optimization Options>Input - Will only be active when To enable Theft Deterrence, clicking Enable selecting Input from the drop-down Options Theft Deterrence Mode button brings up the menu. On a non-supported display capable of following screen: DDC/CI, only the Help and Options tabs are •...
- Page 17 3. Image Optimization Help>Version - Will only be active when • SmartImage - Check current settings, selecting Version from the drop- down Help Office, Photo, Movie, Game, Economy, Off. menu. On a non-supported display capable of Task Tray Menu Enabled DDC/CI, only the Help and Options tabs are The task tray menu can be displayed by available.
- Page 18 3. Image Optimization Task Tray Menu Disabled When the Task Tray is disabled in the preference folder, only the EXIT selection is available. To completely remove SmartControl Premium from the task tray, disable Run at Startup in Options>Preferences. Note All the illustrations in this section are for reference only.
-
Page 19: Built-In Webcam With Microphone
4. Built-in Webcam with Microphone 4.2 Using the device 4. Built-in Webcam with Microphone Philips monitor with webcam device transmits video and sound data through USB port. It can be enabled by simply connecting your USB cable from Note your PC to the USB upstream of USB hub on the USB connection between the monitor and PC is bottom IO of monitor. -
Page 20: Mhl (Mobile High-Definition Link)
An optional MHL cable allows you to simply connect your MHL capable mobile device to Note this large Philips MHL display, and watch your HD videos come to life with full digital sound. • The port marked [MHL-HDMI] is the... -
Page 21: Smoothtouch
6. SmoothTouch 6. SmoothTouch W hat is it? This is a display which uses “Projected capacitive” 10 point touch panel technology. Used with latest OS like Windows 8, it offers you groovy touch gestures like tap, grab, pinch, rotate, zoom, swipe, etc. Your older applications come to life, and now you can fully utilize the new capabilities of touch based applications. -
Page 22: Technical Specifications
7. Technical Specifications 7. Technical Specifications Picture/Display Monitor Panel Type LCD with 10 point Touch Backlight W-LED Panel Size 21.5" (54.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.248 x 0.248 mm Brightness 250 cd/m² SmartContrast 20,000,000:1 Contrast Ratio (typ.) 1000:1 Response Time (typ.) 5 ms SmartResponse... - Page 23 Color Cool grey Finish Glossy Note 1. Smart response time is the optimum value from either GtG or GtG (BW) tests. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 24: Resolution & Preset Modes
7. Technical Specifications 7.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60Hz (analog input) 1920 x 1080 @ 60Hz (digital input) Recommended Resolution 1920 x 1080 @ 60Hz (digital input) H. freq. (kHz) Resolution V. freq. (Hz) 31.47 640 x 480 59.94 37.88 800 x 600... -
Page 25: Power Management
8. Power Management 8. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 26: Regulatory Information
Information Technology Equipment). electronic equipment have been adhered to • EN61000-3-2:2006 +A1:2009+A2:2009 in order to make Philips monitors safe to use (Limits for Harmonic Current Emission). throughout its life cycle. • EN61000-3-3:2008 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable. - Page 27 9. Regulatory Infomation Federal Communications Commission (FCC) Changes or modifications not expressly Notice (U.S. Only) approved by the party responsible for compliance could void the user's authority This equipment has been tested and found to operate the equipment. to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Use only RF shielded cable that was supplied Rules.
- Page 28 9. Regulatory Infomation EN 55022 Compliance (Czech Republic Only) Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de Polish Center for Testing and Certification...
- Page 29 9. Regulatory Infomation North Europe (Nordic Countries) Information Ergonomie Hinweis (nur Deutschland) Der von uns gelieferte Farbmonitor entspricht Placering/Ventilation den in der "Verordnung über den Schutz vor VARNING: Schäden durch Röntgenstrahlen" festgelegten FÖRSÄKRA DIG OM ATT HUVUDBRYTARE Vorschriften. OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der Placering/Ventilation...
- Page 30 9. Regulatory Infomation EU Energy Label China RoHS The People's Republic of China released a regulation called "Management Methods for Controlling Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products produced and sold for China market have to meet China RoHS request.
-
Page 31: Customer Care And Warranty
No manufacturer can guarantee the types of bright dot defects. that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type. - Page 32 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
-
Page 33: Customer Care & Warranty
10.2 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region:... - Page 34 +372 6519972 (workshop) Georgia Esabi +995 322 91 34 71 Hungary Profi Service +36 1 814 8080 (General) +36 1814 8565 (For AOC & Philips only) Kazakhstan Classic Service I.I.c. +7 727 3097515 Latvia ServiceNet LV +371 67460399 +371 27260399...
- Page 35 R-Logic Sdn Bhd +603 5102 3336 Mon.~Fri. 8:15am-5:00pm Sat. 8:30am-12:30am Pakistan TVONICS Pakistan +92-213-6030100 Sun.~Thu. 10:00am-6:00pm Singapore Philips Singapore Pte Ltd (Philips (65) 6882 3966 Mon.~Fri. 9:00am-6:00pm Consumer Care Center) Sat. 9:00am-1:00pm Taiwan FETEC.CO 0800-231-099 Mon.~Fri. 09:00 - 18:00 Thailand Axis Computer System Co., Ltd.
-
Page 36: Troubleshooting & Faqs
• Disconnect the monitor from mains power after you have tried these solutions, contact source immediately for safety Philips customer service representative. • Contact with Philips customer service representative immediately. Common Problems Imaging Problems No Picture (Power LED not lit) Image is not centered •... -
Page 37: General Faqs
11. Troubleshooting & FAQs Image appears blurred, indistinct or too dark For further assistance, refer to the Consumer Information Centers list and contact Philips • Adjust the contrast and brightness on customer service representative. On-Screen Display. An "after-image", "burn-in" or "ghost image" 11.2 General FAQs remains after the power has been turned off. - Page 38 PC, workstation or Mac? the monitor, make sure that there is no pressure or force applied to the Ans.: Yes. All Philips LCD monitors are fully panel surface side. This may affect your compatible with standard PCs, Macs warranty conditions. and workstations. You may need a cable...
- Page 39 11. Troubleshooting & FAQs Ans.: Uninterrupted display of still or static 11.3 SmoothTouch images over an extended period may cause "burn in", also known as Why is the touch function not available "after-imaging" or "ghost imaging", on when I touch the display? your screen. "Burn-in", "after-imaging", Ans.: Please ensure the supplied USB cable is or "ghost imaging"...
- Page 40 © 2014 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M5221C1T...
