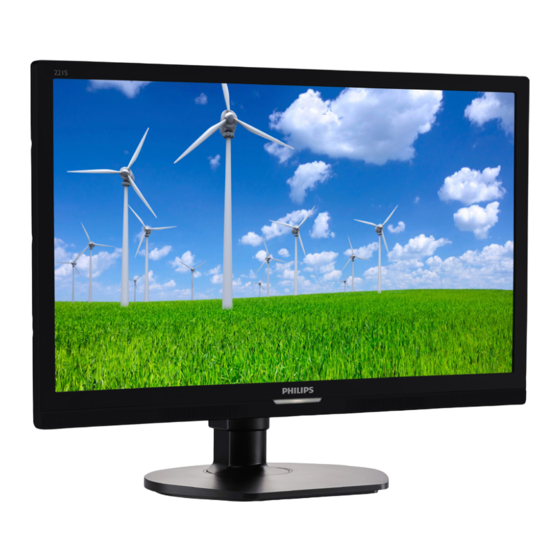

Philips 221S6 User Manual

Philips 221S6 User Manual

Hide thumbs Also See for 221S6:
Table of Contents

Advertisement

Quick Links

www.philips.com/welcome
EN User manual
Customer care and warranty
Troubleshooting & FAQs
1
24
29
221S6

Advertisement

Table of Contents
loading

Related Manuals for Philips 221S6

Summary of Contents for Philips 221S6

  • Page 1 221S6 www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    4.1 Resolution & Preset Modes ....16 5. Power Management ......17 6. Regulatory Information .....18 7. Customer care and warranty ..24 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..........24 7.2 Customer Care & Warranty ....26 8. Troubleshooting & FAQs ....29...

  • Page 3: Important

    1. Important • Please use approved power cord provided 1. Important by Philips at all times. If your power cord is missing, please contact your local service This electronic user’s guide is intended for center. (Please refer to Customer Care anyone who uses the Philips monitor.

  • Page 4: Notational Descriptions

    1. Important • Temperature: 0-40°C 32-95°F 1.2 Notational Descriptions • Humidity: 20-80% RH The following subsections describe notational Important information for Burn-in/Ghost conventions used in this document. image Notes, Cautions and Warnings • Always activate a moving screen saver Throughout this guide, blocks of text may be program when you leave your monitor accompanied by an icon and printed in bold or unattended.

  • Page 5: Disposal Of Product And Packing

    Taking back/Recycling Information for Customers Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of...

  • Page 6: Setting Up The Monitor

    保留备用 Monitor drivers stand. SmartControl software Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. (2) Gently attach the base to the stand. (3) Use your fingers to tighten the screw located at the bottom of the base, and secure the base to the stand tightly.
  • Page 7 2. Setting up the monitor Connecting to your PC 3 4 5 Kensington anti-theft lock Ethernet Audio output AC power input Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable.

  • Page 8: Operating The Monitor

    2. Setting up the monitor Pivot 2.2 Operating the monitor Physical Function Tilt Swivel Height adjustment 110mm...

  • Page 9: Remove The Base Assembly For Vesa Mounting

    2. Setting up the monitor Note 2.3 Remove the Base Assembly for This monitor accepts a 100mm x 100mm VESA Mounting VESA-Compliant mounting interface. Before you start disassembling the monitor VESA Mounting Screw M4. Always contact base, please follow the instructions below to manufacturer for wall-mount installation.

  • Page 10: Usb Docking Display Introduction

    3. USB docking display Introduction 3. USB docking display Introduction If you are among the majority of the Notebook users who do not have the convenience of a docking station, then this USB docking display is Note your best choice. The screen may flash or go black during the This USB docking display combines the power installation.
  • Page 11 3. USB docking display Introduction 2. Click the DisplayLink icon . A menu appears with several options. These are shown and described below.
  • Page 12 Windows screen resolution. DisplayLink devices Options to In this section of the menu, a list of connected configure Philips DisplayLink devices will appear. Each of these devices 221S6QU device has its own sub-configuration menu. These Submenu options are covered in the table below.
  • Page 13 3. USB docking display Introduction Menu Option Sub-menu Option Description Mirror Copies what is on the main display and reproduces it on this display. Note: The resolution of this display and the primary must be the same in mirror mode. This may be lower than the preferred resolution of the display.
  • Page 14 3. USB docking display Introduction Setting USB docking Ethernet 3. Right click on the Realtek USB GBE Family Controller icon and click 1. Open “Network Connections” window “Enable”, now you can surf the internet. On Windows 8 or Windows 7, type “ncpa.cpl” into the Start menu search box: 2.
  • Page 15 3. USB docking display Introduction 2. Right click on 2 - USB Audio Device, then single USB cable to connect USB 2.0 upstream/ click Enable downstream ports between display and laptop. Note Please visit DisplayLink website http://www. displaylink.com/support/downloads/.php for more detailed DisplayLink software updated information.

  • Page 16: Technical Specifications

    4. Technical Specifications 4. Technical Specifications Picture/Display Monitor Panel Type AH-IPS Backlight W-LED system Panel Size 21.5" W (54.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.248(H) mm x 0.248(V) mm Brightness 250 cd/m² SmartContrast 20,000,000:1 Contrast Ratio (typ.) 1000:1 Response Time (typ.) 14 ms Optimum Resolution 1920 x 1080 @ 60 Hz...
  • Page 17 CE Mark, FCC Class B, SEMKO, cETLus, CU-EAC, TUV-GS,TUV-ERGO, EPA, PSB, WEEE, C-TICK, UKRAINIAN, Regulatory Approvals CCC, CECP, ICES-003 Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 18: Resolution & Preset Modes

    4. Technical Specifications 4.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution 1920 x 1080 @ 60 Hz (digital input)

  • Page 19: Power Management

    5. Power Management 5. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically.

  • Page 20: Regulatory Information

    EN55022:2010(Radio Disturbance on hazardous substances in electrical and requirement of Information Technology electronic equipment have been adhered to in Equipment). order to make Philips monitors safe to use throughout its life cycle. • EN55024:2010 (Immunity requirement of Information Technology Equipment).
  • Page 21 6. Regulatory Infomation Energy Star Declaration Changes or modifications not expressly approved by the party responsible for (www.energystar.gov) compliance could void the user's authority ® As an ENERGY STAR Partner, we to operate the equipment. have determined that this product Use only RF shielded cable that was supplied ®...
  • Page 22 6. Regulatory Infomation EN 55022 Compliance (Czech Republic Only) nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé...
  • Page 23 6. Regulatory Infomation North Europe (Nordic Countries) Information Ergonomie Hinweis (nur Deutschland) Der von uns gelieferte Farbmonitor entspricht Placering/Ventilation den in der "Verordnung über den Schutz vor VARNING: Schäden durch Röntgenstrahlen" festgelegten FÖRSÄKRA DIG OM ATT HUVUDBRYTARE Vorschriften. OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.
  • Page 24 For more 外壳 information about where you can drop off your 液晶显示屏/灯管 waste equipment for recycling in India please 电路板组件 visit the below web link. 电源适配线 电源线/连接线 http://www.india.philips.com/about/sustainability/ 遥控器 recycling/index.page 本表格根据SJ/T 11364 的规定编制。 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电 环保使用期限 路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的...
  • Page 25 6. Regulatory Infomation BLUE -“NEUTRAL”(“N”) 为了更好地关爱及保护地球，当用户不再 需要此产品或产品寿命终止时，请遵守国 BROWN -“LIVE”(“L”) 家废弃电器电子产品回收处理相关法律法 GREEN&YELLOW -“EARTH”(“E”) 规，将其交给当地具有国家认可的回收处 理资质的厂商进行回收处理。 1. The GREEN&YELLOW wire must be Information for U.K. only connected to the terminal in the plug which is marked with the letter "E" or by WARNING - THIS APPLIANCE MUST BE the Earth symbol or coloured GREEN or EARTHED.

  • Page 26: Customer Care And Warranty

    No manufacturer can guarantee the types of bright dot defects. that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 27 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.

  • Page 28: Customer Care & Warranty

    7.2 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region:...
  • Page 29 Estonia FUJITSU +372 6519972(workshop) Georgia Esabi +995 322 91 34 71 +36 1 814 8080(General) Hungary Profi Service +36 1814 8565(For AOC&Philips only) Kazakhstan Classic Service I.I.c. +7 727 3097515 +371 67460399 Latvia ServiceNet LV +371 27260399 +370 37 400160(general)
  • Page 30 +603 5102 3336 Sat. 8:30am-12:30am Pakistan TVONICS Pakistan +92-213-6030100 Sun.~Thu. 10:00am-6:00pm Philips Electronics Singapore Mon.~Fri. 9:00am-6:00pm Singapore Pte Ltd (Philips Consumer Care (65) 6882 3966 Sat. 9:00am-1:00pm Center) Taiwan FETEC.CO 0800-231-099 Mon.~Fri. 09:00 - 18:00 Axis Computer System Co., Thailand (662) 934-5498 Mon.~Fri.

  • Page 31: Troubleshooting & Faqs

    Oth- erwise, you may need to update your USB Ethernet driver, which can be done through our user manual or www. philips.com/support. Why am I unable to turn off the audio after turning it off using DisplayLink software? Ans.:...
  • Page 32 © 2015 Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice. Version: M6221SQUE1L...
