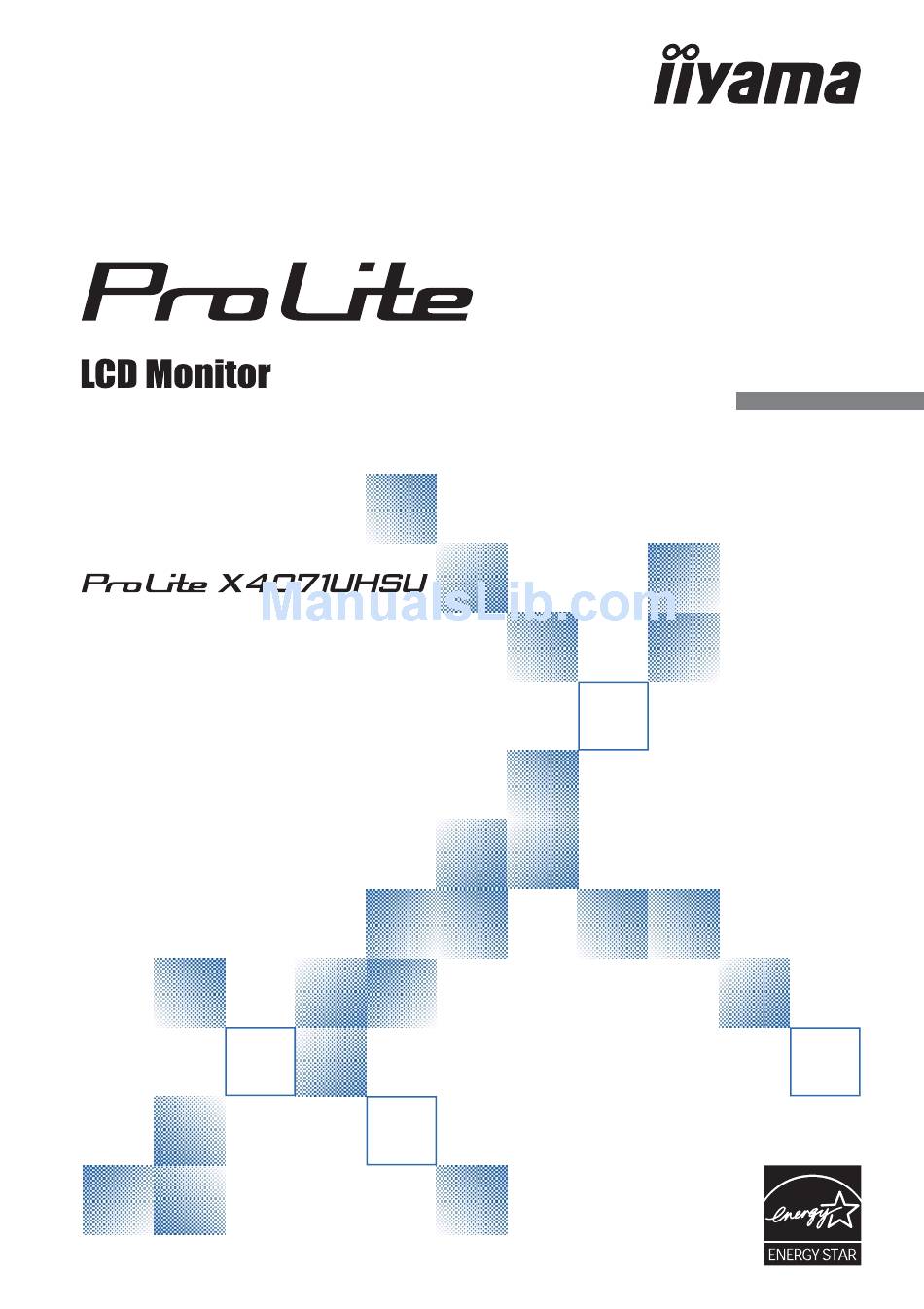

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 2: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL4071UH We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff... -
Page 3: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 BEFORE YOU OPERATE THE MONITOR ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 UNPACKING ..................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS : MONITOR ......7 INSTALLATION ................9 CONTROLS AND CONNECTORS : REMOTE CONTROL ..10... -
Page 4: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. When you fi rst turn on the LCD monitor, the picture may not fi t in the display area NOTE because of the type of computer that is used. -
Page 7: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 10: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Front> Blue Normal Operation Power Indicator Orange Power Management Remote Sensor Remote Sensor Power Button Input / Select Button Up Button Down Button Menu Button BEFORE YOU OPERATE THE MONITOR 7... - Page 11 <Back> SPEAKERS Speakers HEADPHONE Headphone hook HOOK EARPHONE Mini Jack Headphone connector AUDIO IN Mini Jack Audio Connector (PC Audio In) USB Downstream Connector Downstream USB Downstream Connector Downstream RS232C Mini Jack RS232C Connector PC USB USB Upstream Connector Upstream D-SUB mini VGA(D-sub) mini 15pin Connector 15pin...
-
Page 12: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. -
Page 13: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL Turns the monitor ON and OFF. Display the ECO mode menu. Display the OSD menu. FREEZE Freeze the picture. i-STYLE Display the i-Style Color menu. Opens the monitor’s on-screen menu systems. When the menu MENU system is already open, pressing this button will select the previous... -
Page 14: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"... -
Page 15: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is on and the Power Indicator turns Blue when you press the Power Button on the monitor or the Remote Control. The monitor is off and the Power Indicator turns Orange when you press the Power Button on the monitor or the Remote Control. - Page 16 Move the cursor vertically Select adjustment by pressing the Button on the monitor or the Remote Control while the menu page is displayed on the screen. [Remote Control] [Monitor] Move the Adjustment bar Perform the adjustment by pressing the Button on the Remote Control while the Adjustment bar of menu page is displayed on the screen.
- Page 17 Adjust the volume of sound Press the VOL Button on the Remote Control to adjust the volume of sound when the menu page is not displayed on the screen. [Remote Control] Switch the input signal This is activated when you successively press the Button on the monitor or INPUT Button on the Remote Control.
-
Page 18: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 19: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 35: COMPLIANT TIMING. Procedure for turning ON the Power Switch Turn ON the monitor fi rst, and then the computer. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. -
Page 20: Operating The Monitor
If you prefer to use the monitor over 3 hours continuously, please disable The Auto Pow. Off function. To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 35. You are also able to adjust the picture by following the button operation shown below. - Page 21 NOTE When button operations are aborted during adjustment, On-Screen Display disappears when the time set for the OSD Time Out has passed. Also, the Button on the Monitor or the EXIT Button on the Remote Control can be used to return previous menu and turn off...
-
Page 22: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Input Select Direct Adjustment Item Problem / Option Button to Press Select the VGA input. HDMI1 Select the HDMI1 input. HDMI2-MHL Select the HDMI2-MHL input. Input Select HDMI3 Select the HDMI3 input. DisplayPort Select the DisplayPort input. Search for an available input source and select AUTO automatically. - Page 23 Picture Adjustment Item Problem / Option Button to Press Full Screen Full screen display Expansion display of Aspect Picture Format * Aspect Ratio * Display the picture dot by dot. Dot By Dot Too dark Brightness * Too bright Too dull Contrast * Too intense You can change the picture quality from 0 to 100...
- Page 24 PiP/PbP Adjustment Item Problem / Option Button to Press Off PiP/PbP Mode is turned off . Display the sub screen in the main screen. PiP/PbP Mode * Divide display images in two Select the VGA input. HDMI1 Select the HDMI1 input. Sub Win Input HDMI2-MHL Select the HDMI2-MHL input.
- Page 25 Audio Direct Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Turn off the sound temporarily. Mute Direct Return the sound volume to the previous level. Off Line-In Select the Line-In input. HDMI1 Select the HDMI1 input. Audio Input * HDMI2-MHL Select the HDMI2 input.
- Page 26 Color * Adjustment Item Problem / Option Button to Press Reddish white Warm Greenish white Normal Cool Bluish white Too weak User Color Green Too strong Blue For general windows environment and monitor Standard default setting. Scenery For displaying outdoor scenery images Cinema For movie and video environment.
- Page 27 Language Adjustment Item Problem / Option Button to Press English English Italiano Italian French Russian Français Русский Deutsch German Japanese Language Nederlands Dutch Simplifi ed Chinese Traditional Chinese Polski Polish Česky Czech OSD Settings Adjustment Item Problem / Option Button to Press OSD is too left OSD H.
-
Page 28: Setup Menu
To be used when displaying 3840x2160 60Hz. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned Off The Power Indicator is turned On. The Power Indicator is turned Off . - Page 29 Only Analog Input. For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 27 for SCREEN ADJUSTMENTS. See page 27 for SCREEN ADJUSTMENTS. To display 3840 x 2160 at 60Hz, the DisplayPort setting must be enabled as 1.2, and the source graphic card must be capable of supporting 3840 x 2160 resolution at 60Hz.
-
Page 30: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 31 Adjust the Auto Adjustment. Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 32 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 33: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 34: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 35: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 32 RECYCLING INFORMATION... -
Page 36: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 40" Panel technology Size Diagonal: 39.5" (100.3cm) Pixel pitch 0.229mm H × 0.225mm V Brightness 350cd/m (Typical) Panel Contrast ratio 5000 : 1 (Typical) Viewable angle Right/Left/Up/Down: 89 degrees each (Typical) Response time 3ms (Gray to Gray) -
Page 37: Dimensions
Operating: Temperature 5 to 35°C / 41 to 95°F Humidity 10 to 80% (No condensation) Environmental Considerations Storage: Temperature -20 to 60°C / -4 to 140°F Humidity 5 to 85% (No condensation) ® Approvals CE, TÜV-Bauart, CU, VCCI-B, PSE, ENERGY STAR NOTE Only HDMI2 input. -
Page 38: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
