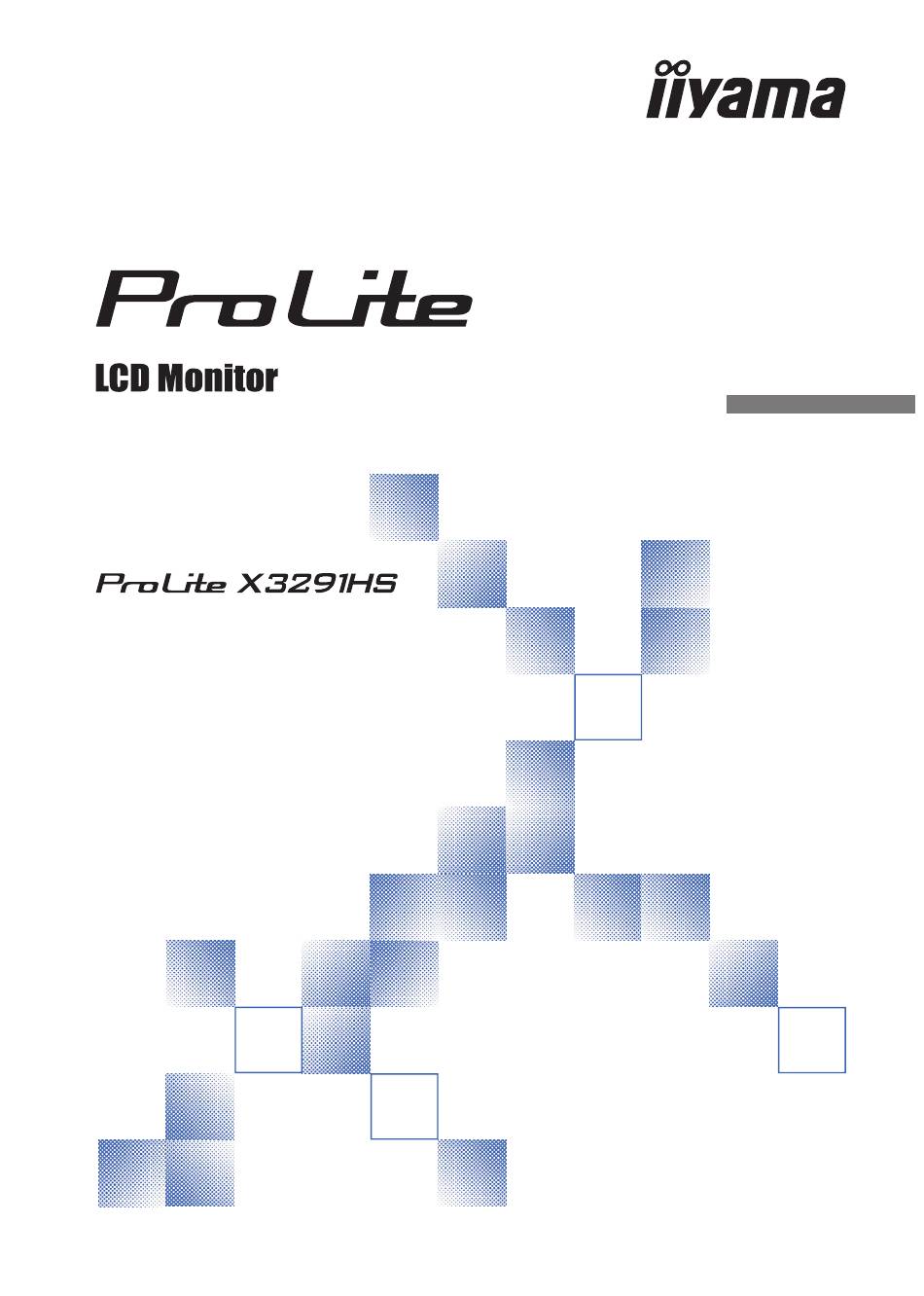

USER MANUAL
ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through
this brief but comprehensive manual
before installing and switching on the
monitor. Please keep this manual in a
safe place for your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProLite X3291HS and is the answer not in the manual?

Questions and answers

Related Manuals for Iiyama ProLite X3291HS

Summary of Contents for Iiyama ProLite X3291HS

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
  • Page 3 For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing refl ections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ...........8 COMPUTER SETTING ..............9...

  • Page 5: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

     If you have to return your unit for service and the original packaging has been discarded, NOTE please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING  If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 9: Installation

    INSTALLATION WARNING  Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the monitor and the mount. < WALL MOUNTING > WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L”...

  • Page 10: Fitting And Removal Of Base

    FITTING AND REMOVAL OF BASE CAUTION  Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.  Do not give a strong impact to the monitor. It may cause damage. ...

  • Page 11: Controls And Connectors

    CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu Button (MENU) + / Volume / Blue Light Reducer Button ( + ) - / ECO Button ( - ) Auto Button (AUTO) Speakers Keyhole for Security Lock NOTE...

  • Page 12: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 13: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 25: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle.

  • Page 14: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS.

  • Page 15: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Picture Adjust Picture Adjust Contrast Brightness i-Style Color Standard Over Drive Adv. Contrast AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Too dull Contrast* Too intense Too dark Brightness* Too bright Standard For general windows environment and monitor default setting.
  • Page 16 Color Adjust* Color Adjust Color Temp. Warm User-Red User-Green User-Blue :Exit :Move AUTO MENU :Select Adjustment Item Problem / Option Button to Press Warm Warm color Normal Normal color Cool Cool color sRGB sRGB Color Temp. User-Red Too weak User User-Green Too strong User-Blue...
  • Page 17 Manual Image Adjust Manual Image Adjust Clock Phase H.Position V.Position Black Tuner Video Mode Adjust Full AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H.
  • Page 18 OSD Setup OSD Setup H.Position V.Position OSD Timeout Language English AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time OSD Timeout between 5 and 100 seconds.
  • Page 19 If multiple inputs are connected, the monitor may not recover the last one used after turning it off and on again. It is only possible when you set a specifi c source. iiyama Logo does not display when the monitor is Off turned on.
  • Page 20 You can skip the Menu items and directly display an option setting screen or an Direct adjustment scale by using the following button operations.  Input Select: Press the AUTO button when the Menu is not displayed, it shows following Menu. D-SUB You can then select input source press the AUTO button HDMI...
  • Page 21  Lock Mode: <OSD> Hold the MENU button and turn on the monitor when the monitor is power-off , it will lock/unlock the OSD Key Lock function. <Power/OSD> Pressing and holding the MENU button for 10 seconds when Menu is not displayed, will lock/unlock the Power/OSD Key Lock function.

  • Page 22: Screen Adjustments

    If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
  • Page 23 Pressing and holding the AUTO Button for about 3-4 seconds. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 24 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE  In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. ...

  • Page 25: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.

  • Page 26: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 27: Recycling Information

    A strange noise  The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 23...

  • Page 28: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 31.5" Panel technology Size Diagonal: 31.5" (80.1cm) Pixel pitch 0.363mm H × 0.363mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left / Up / Down: 89°...

  • Page 29: Dimensions

    DIMENSIONS 737.5mm/29.0” 47.5mm/1.9” 700.5mm/27.6” 249.5mm/9.8” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
