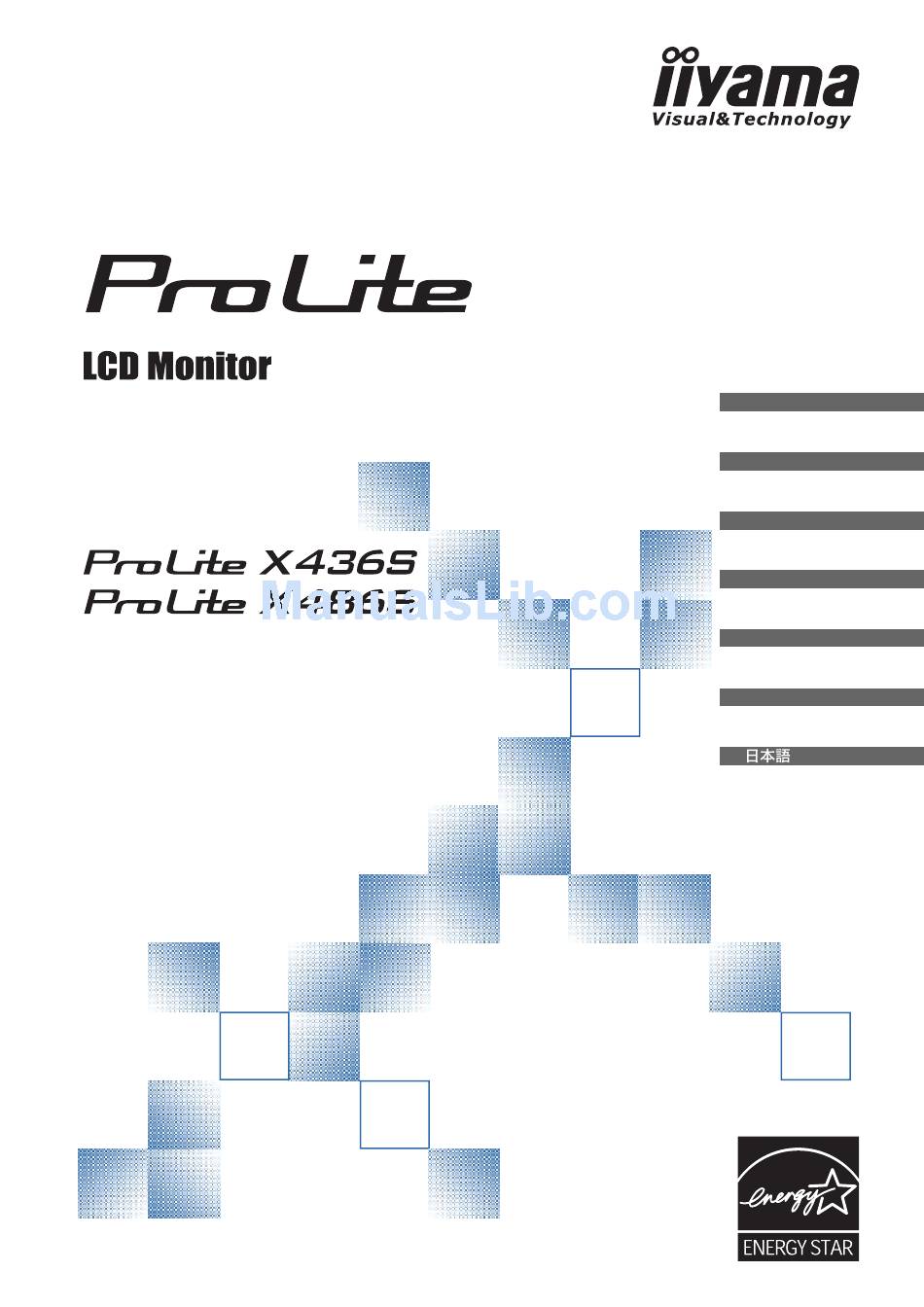

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
ITALIANO
ESPAÑOL
Advertisement
Table of Contents
Related Manuals for Iiyama PROLITE X436S
Summary of Contents for Iiyama PROLITE X436S
-
Page 1: User Manual
ENGLISH ENGLISH DEUTSCH FRANCAIS NEDERLANDS ITALIANO Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to ESPAÑOL read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference. - Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 3: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by IIYAMA could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 4: Table Of Contents
SCREEN ADJUSTMENTS ..............19 POWER MANAGEMENT FEATURE ..........22 TROUBLE SHOOTING ................23 APPENDIX ....................25 SPECIFICATIONS: ProLite X436S ............ 25 SPECIFICATIONS: ProLite X486S ............ 26 SPECIFICATIONS: ProLite X486S-1 ..........27 DIMENSIONS: ProLite X436S ............28 DIMENSIONS: ProLite X486S ............28 COMPLIANT TIMING ................. -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
ProLite X486S: 48cm (19.0") TFT Color LCD Monitor Supports Resolutions up to 1280 × 1024 ProLite X436S / ProLite X486S : High Contrast 700:1 / High Brightness 300cd/m ProLite X486S-1 : High Contrast 700:1 / High Brightness 400cd/m / Quick Response... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS USB IN AUDIO IN DVI-D D-SUB AC IN <Front> <Back> A Light Sensor B Power-Saving Sensor C Speakers D Power Indicator Blue: Normal operation NOTE Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 11: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 12: Computer Setting
Change to the desired signal timing listed on page 28: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Analog Input Menu : 1 (Analog) M e n u : 1 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press Too dark Direct... - Page 15 Menu : 2 M e n u : 2 (Analog) 1280 × 1024 H : 8 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * Adjust Clock, Phase, V-Position and H-Position automatically.
- Page 16 Menu : 2 (Analog) Adjustment Item Problem / Option Normal Gamma Mode1 High contrast Dark Mode2 Normal Economy Mode Mode1 Brightness of back-light is reduced. Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Exit Close OSD Window.
- Page 17 Menu : 3 Menu:3 (Analog) 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions within the overall display:...
- Page 18 Menu : 4 M e n u : 4 (Analog) 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud...
- Page 19 Digital Input Menu : 1 Menu:1 (Digital) 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press Too dark Direct Brightness * Too bright Too dull Direct...
- Page 20 Menu : 1 (Digital) Adjustment Item Problem / Option Normal Economy Mode Mode1 Brightness of back-light is reduced. Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Exit Close OSD Window. OPERATING THE MONITOR...
- Page 21 Menu : 2 M e n u : 2 (Digital) 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions...
- Page 22 Menu : 3 M e n u : 3 (Digital) 1280 × 1024 H : 8 0 . 0 K H z V : 7 5 . 0 H z Adjustment Item Problem / Option Button to Press Too soft Direct Volume Too loud...
-
Page 23: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 24 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
- Page 25 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. – In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE NOTE G because the Clock may not be adjusted correctly.
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with every power saving requirement of ® and VESA DPMS. When activated, it automatically reduces unnecessary power NERGY consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 27: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... - Page 28 Problem Check No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of the monitor.
-
Page 29: Appendix
APPENDIX SPECIFICATIONS: ProLite X436S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 43cm / 17.0" Pixel pitch 0.264mm H × 0.264mm V Brightness 300cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left: 75 degrees each, Up: 75 degrees, Down: 60 degrees... -
Page 30: Specifications: Prolite X486S
SPECIFICATIONS: ProLite X486S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 48cm / 19.0" Pixel pitch 0.294mm H × 0.294mm V Brightness 300cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left: 75 degrees each, Up: 75 degrees, Down: 60 degrees Response time 8ms (Black, white, black) Display Colors... -
Page 31: Specifications: Prolite X486S-1
SPECIFICATIONS: ProLite X486S-1 LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 48cm / 19.0" Pixel pitch 0.294mm H × 0.294mm V Brightness 400cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left: 75 degrees each, Up: 75 degrees, Down: 65 degrees Response time 5ms (Black, white, black), 2ms (Gray to Gray) Display Colors... -
Page 32: Dimensions: Prolite X436S
DIMENSIONS: ProLite X436S 381mm/15" 62mm/2.5" 338mm/13.3" 180mm/7.1" DIMENSIONS: ProLite X486S 421mm/16.6" 62mm/2.5" 378.5mm/14.9" 180mm/7.1" COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 37.500kHz 75.000Hz 640 × 480 31.500MHz 37.861kHz 72.809Hz 36.000MHz 35.156kHz 56.250Hz 40.000MHz 37.879kHz... -
Page 33: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Input Signal Input Signal Connector Red video Reserved port Green video / Sync on green Blue video Reserved port Reserved port Data line (SDA)* Ground H-Sync/HV-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC.
