Removing the Interface Cable

Different cables are required for different hosts. To remove the
interface cable:
1. Unplug the cable's modular connector by depressing the
connector clip through the access hole on the bottom of the
scanner with a screwdriver or paper clip.
2. Carefully slide out the cable.

Wall Mounting the Scanner

An optional wall-mount bracket is available for using the M2000 in
"scanning from above" applications. To wall-mount the M2000:
1. Place the bracket in its desired location on the wall, and
place a pencil mark on the wall through each keyhole in the
bracket.
2. Remove the bracket, and insert three #6 screws into the pen-
cil marks on the wall. Do not tighten them all the way; leave
enough space for the bracket's keyholes to slide onto.
R e f e r e n c e
3

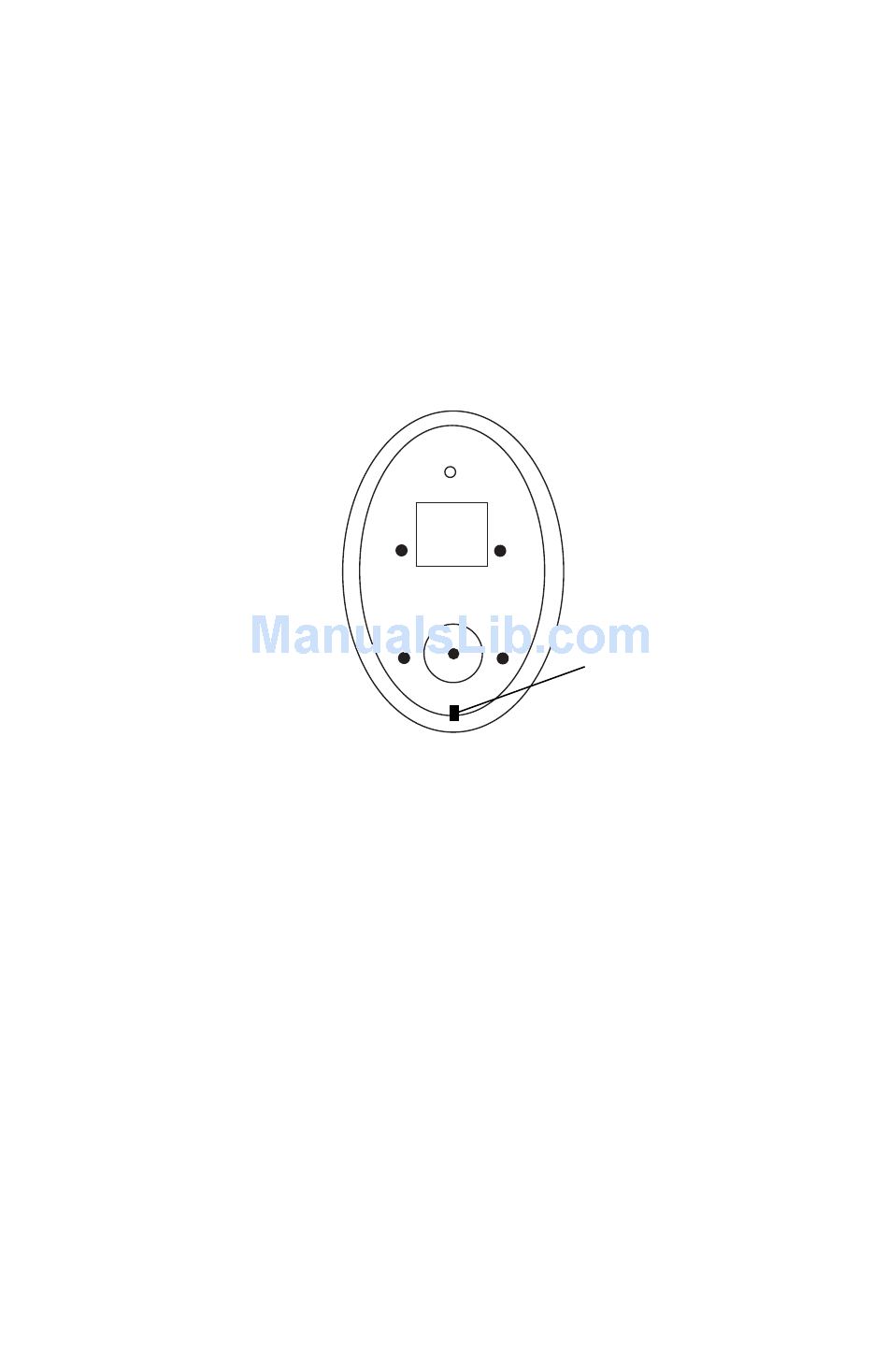

Access Hole
