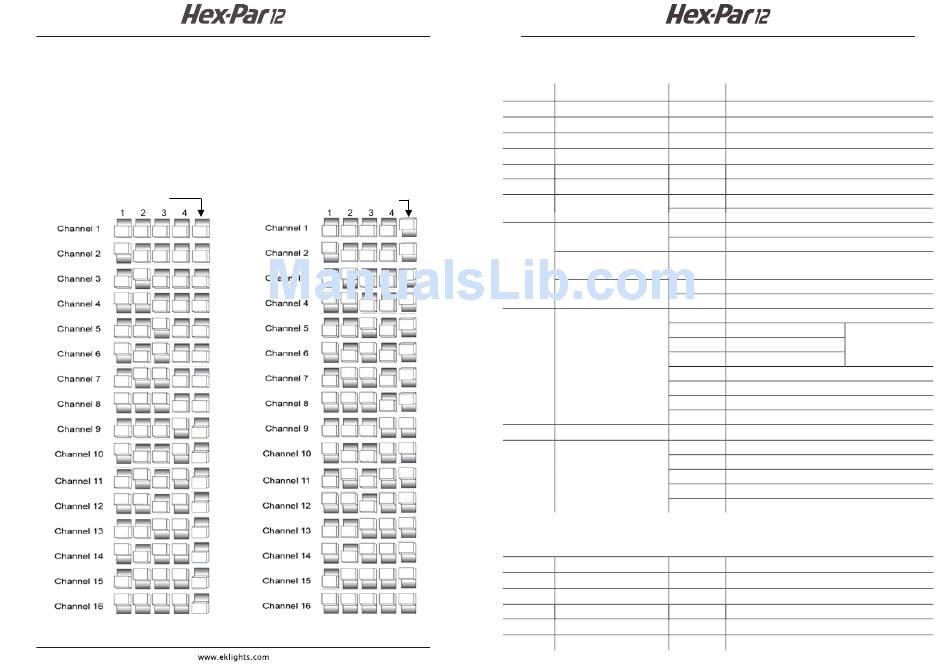

UFI OPERATION

To enable wireless DMX operation via the optional UFI wi-fi transceiver:
1) Set the HEX-PAR 12 starting DMX address
2) Set the UFI sending/receiving channel
3) Attach the UFI to the HEX-PAR 12 USB port
4) Use Dipswitch 5 to select UFI send or receive mode.
RECEIVING TRANSMITTING

DMX FUNCTION CHART

11-Channel Mode
Channel Function
Red
1 000 --- 255 0–100%
Green
2 000 --- 255 0–100%
Blue
3 000 --- 255 0–100%
Amber
4 000 --- 255 0–100%
White
5 000 --- 255 0–100%
UV
6
000 --- 255 0–100%
Color Macros 000 --- 015 No function
7
(Overrides Ch . 1 –6)
016 --- 255 Color macros
Strobe 000 --- 015 No function
(when CH 9 is 000 –031 )
016 --- 255 Slow to fast
Speed
8 000 --- 255 Slow to fast
(when CH 9 is 032 –223)
000 --- 010 Off
Sound Sensitivity
(when CH 9 is 224 –255)
011 --- 255 Controls the sound sensitivity level
000 --- 031 No function
032 --- 063 Pulse effect 0 –100%
064 --- 095 Pulse effect 100% –0%
096 --- 127 Pulse effect 100% –0–100%
Mode
9
128 --- 159 Auto fade transition
160 --- 191 Auto snap transition ( 6 colors)
192 --- 223 Auto snap transition ( 63 colors)
224 --- 255 Sound -active mode
Dimmer
10 000 --- 255 0–100%
000 --- 051 Default dimmer speed set from menu
052 --- 101 Dimmer speed mode off
Dimmer Speed
11 102 --- 152 Dimmer speed mode 1 (fast speed)
153 --- 203 Dimmer speed mode 2 (medium speed)
204 --- 255 Dimmer speed mode 3 (slow speed)

6-Channel Mode

Red
1 000 --- 255 0–100%
Green
2 000 --- 255 0–100%
Blue
3 000 --- 255 0–100%
Amber
4 000 --- 255 0–100%
White
5 000 --- 255 0–100%
UV
6
000 --- 255 0–100%
Value Percent/Setting
CH1~ 6 must be
active
