OVERVIEW

MASTER/SLAVE OPERATION (via DMX cable)
When multiple HEX-PAR 12 units are used together, Master/Slave mode enables the

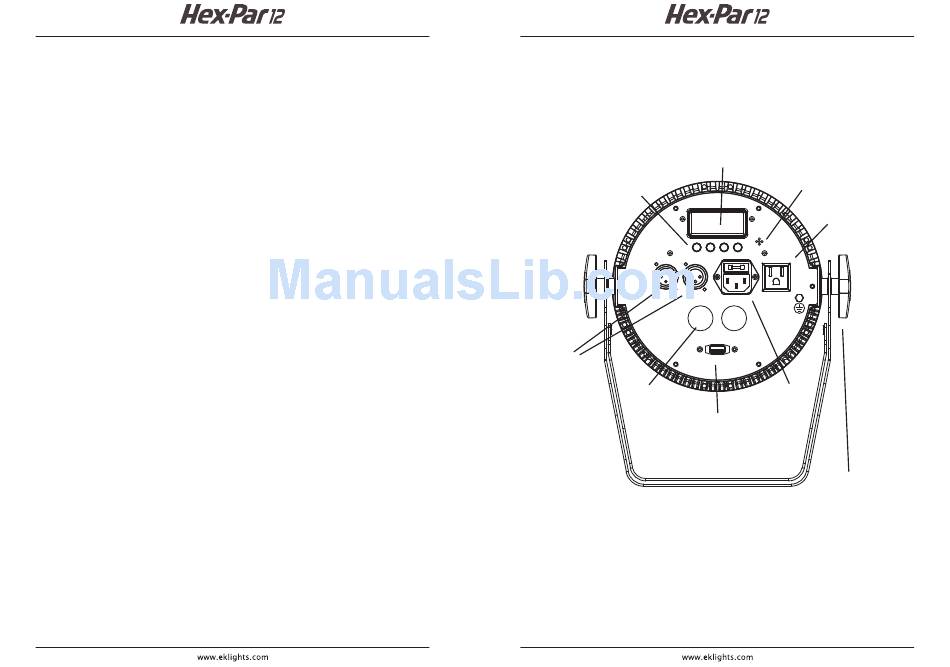

Rear View

assignment of one master unit and multiple slave units. The master unit can be operated
in stand-alone mode (i.e., auto program or sound-active mode -- not DMX mode). The
slave units should all be set to slave mode as described below.
Note: Slave units should be configured and connected before linking to master unit
Display
Menu
Setup as below:
Microphone
Buttons
SLAVE UNITS:
Power Out
Press MENU button until 6-CH or 11-CH is displayed
Press ENTER
Set DMX address to d 1
Connect DMX cable from master unit to DMX In connector
Link following slave units in similar cable configuration
MASTER UNIT:
Set to Auto or Sound-Active mode
Link to slave units, beginning from the master DMX Out connector
DMX
In/Out
Power In
Safety
Cable
anchor
UFI Port
Adjustment
knob
