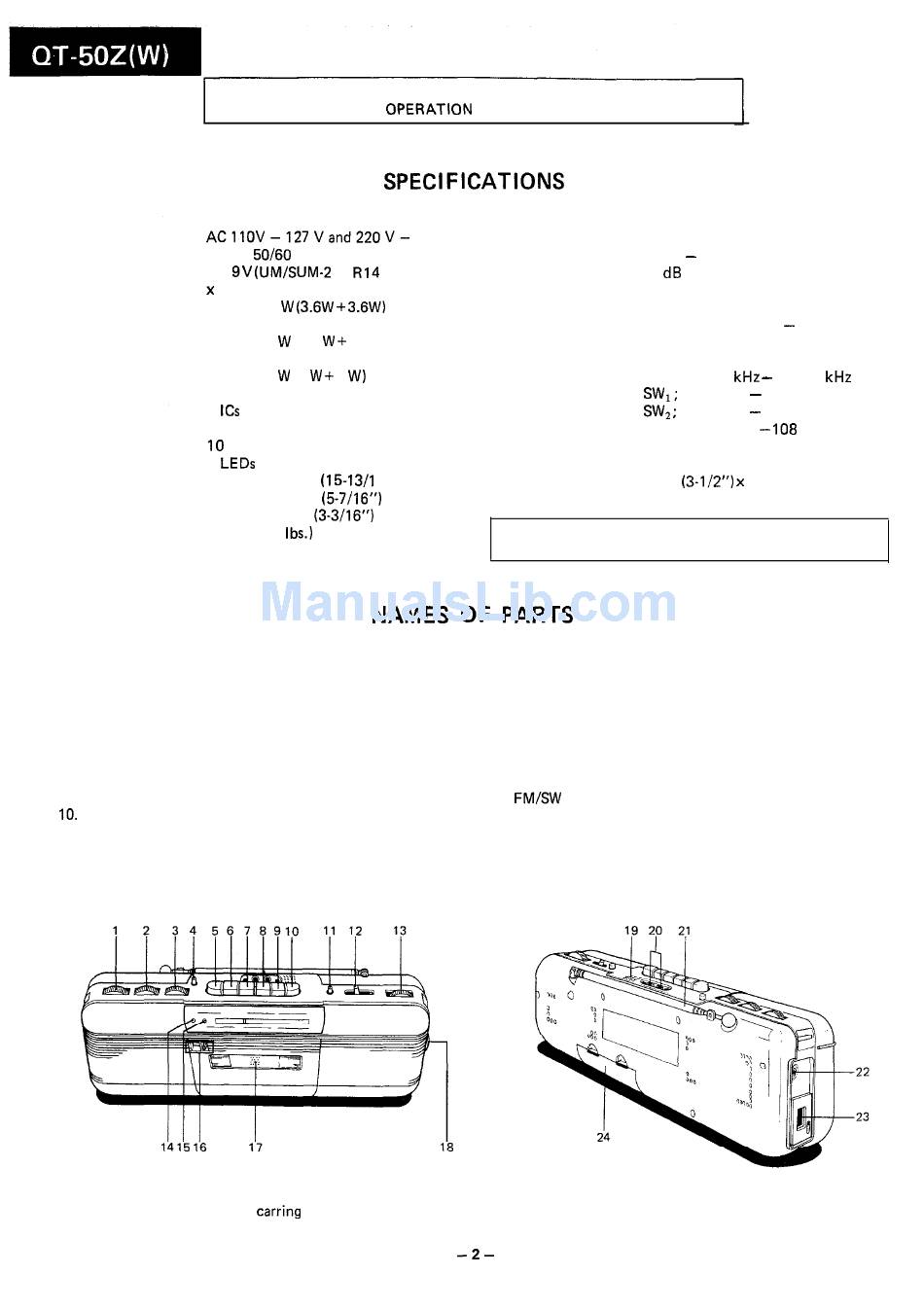

Specifications; Names Of Parts - Sharp QT-50Z Service Manual

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATlON MANUAL.
GENERAL
Power source:
240 V, 50160 Hz
DC 9V (UM/SUM-2 or RI4 type
Output power:
M P O ; 7 . 2 W (3.6W + 3.6W)
RMS;
PMPO; 14 W (7 W + 7 W)
Semiconductors: 5
1 Transistors
2 LEDs
Dimensions: Width;
Height; 137 mm (5-7/16")
Depth; 81 mm (3-31' 16")
Weight: 1.7 kg (3.75 Ibs.) without batteries
1. Volume Control
2. Balance Control
3. Tone Control
4. Function Selector Switch
5. Pause Button
6. Stop/Eject Button
7. Fast Forward Button
8. Rewind Button
9. Play Button
11. FM Mode Selector
12. Band Selector
Figure 2-l FRONT PANEL
This unit is provided with a carring belt, but it is not depicted in the following Figures.
l
(AC operation)
4.6 W (2.3 W + 2.3 W)
(DC operation, 10% distortion)
(AC operation)
402 mm (15-I 3/l 6")
TAPE RECORDER
Tape:
Compact cassette tape
Frequency range:
50 Hz - 10,000 Hz
Signal/noise ratio:
36 dB
Input impedance:
External mic; 600 ohms
Output level and
loaded impedance: Headphones; 8 ohms - 32 ohms
RADIO
Frequency range:
AM;
FM;
SPEAKERS
Speakers:
9 cm (3-l/2") x 2
Specifications for this model are subject to change without
prior notice.
13. Tuning Control
14. Power Indicator
15. FM Stereo Indicator
16. Digital Tape Counter and Counter Reset Button
17. Cassette Compartment
18. Fine Tuning
19. Built-in Microphone
20. External Microphone Jacks
21. FM/SW Telescopic Rod Antenna
22. Headphones Jack
23. AC Power Supply Socket
24. Battery Compartment Lid
Figure 2-2 REAR PANEL
526.5 kHz - 1606.5 kHz
2.3 MHz - 7.3 MHz
7.3 MHz - 22 MHz
87.6 MHz - 108 MHz
