FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

IMPORTANT SERVICE NOTES (111H FOR UK ONLY)

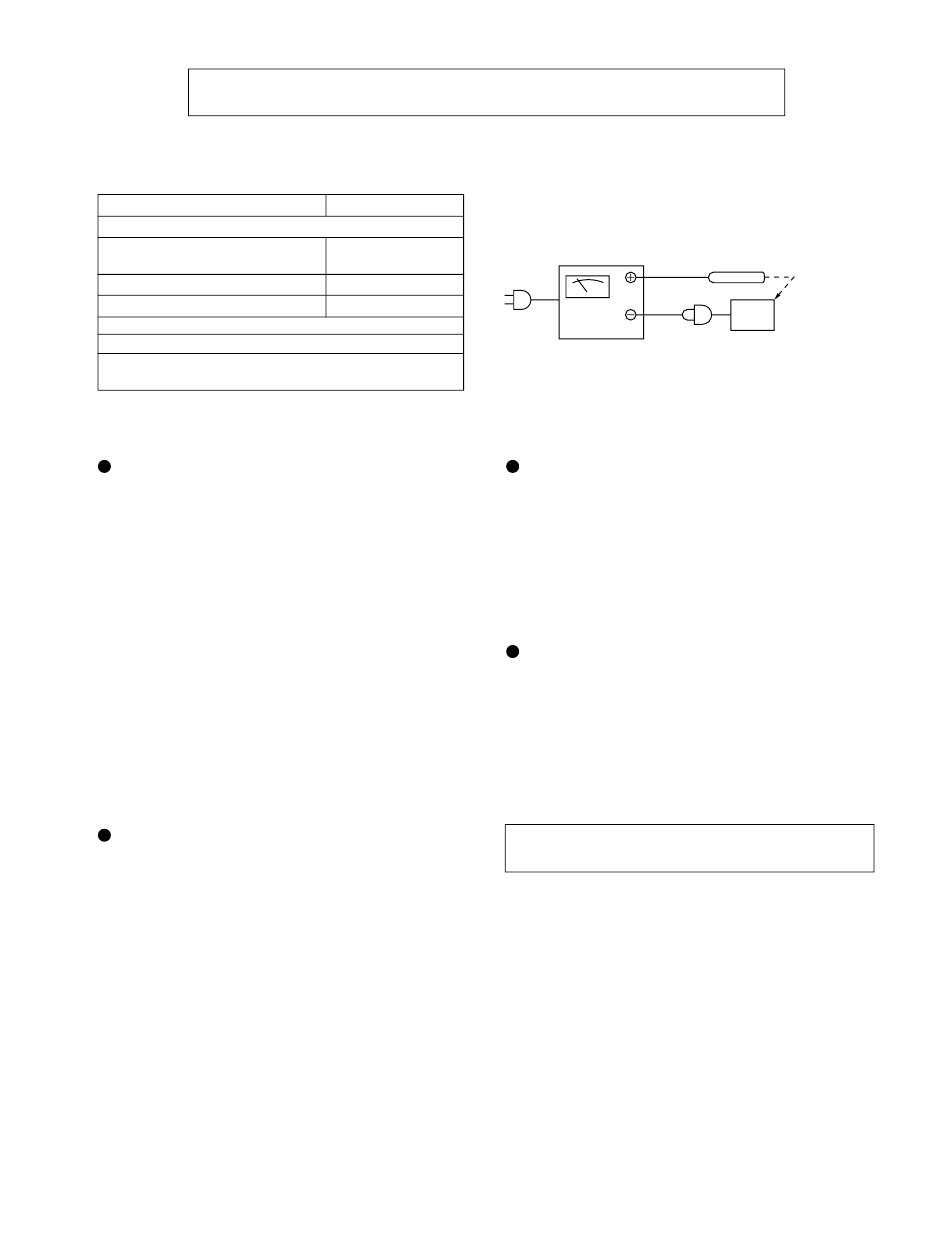

Before returning the unit to the customer after completion of a repair or adjustment it is necessary for the following withstand voltage
test to be applied to ensure the unit is safe for the customer to use.
Setting of Withstanding Voltage Tester and set.
Set name
Withstanding Voltage Tester
Test voltage
Set time
Set current (Cutoff current)
Unit
Judgment
OK: The "GOOD" lamp lights.
NG: The "NG" lamp lights and the buzzor sounds.
General
Power source: AC 230 - 240V, 50 Hz
DC 12 V [ "D" size (UM/SUM-1,
R20 or HP-2) battery x 8]
Power consumption: 11 W
Output power: PMPO; 28 W
(111H Except for UK/ MPO; 8.4 W (4.2 W + 4.2 W)
110H) (AC operation, DIN 45 324)
RMS; 4.6 W (2.3 W + 2.3 W)
(DC operation, DIN 45 324)
Output power: MPO (Max.); 8.4 W (4.2 W + 4.2 W)
(111H For UK) (AC operation)
RMS; 4.6 W (2.3 W + 2.3 W)
(DC operation, 10 % T.H.D.)
Speakers: 10 cm (4") full-range speaker x 2
Output terminal: Headphones; 16-50 ohms
(recommended; 32 ohms)
Dimensions: Width; 480 mm (18-15/16")
Height; 153 mm (6-1/16")
Depth; 254 mm (10")
Weight: 3.2 kg (7.1 Ibs.) without batteries
Radio
Frequency range: FM; 87.5 - 108 MHz
AM; 526.5 - 1,606.5 kHz
All manuals and user guides at all-guides.com
Set value
4,240 VPEAK
3,000 VRMS
6 secs
4 mA

SPECIFICATIONS

– 3 –
WITHSTANDING
VOLTAGE TESTER
AC
OUT
SHORT-CIRCUT
AC POWER
SUPPLY CORD
Tape recorder
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 50 dB
Wow and flitter: 0.3 % (DIN 45 511)
(111H Except for UK/110H)
Wow and flitter: 0.25 % (WRMS)
(111H For UK)
Motor: DC 12 V electric governor
Bias system: AC bias
Erase system: Magnet erase
Compact disc player
Disc: Compact disc
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
Audio channels: 2
Quantization: 16-bit linear quantization
Filter: 4-tims oversampling digital filter
D/A converter: 1-bit D/A converter
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
Specifications for this model are subject to change without
prior notice.
QT-CD111H/110H
PROBE
UNIT
CONNECT THE PROBE
TO GND OF BATTERY
SPRING
