Audiovox WHS200 Installation Instructions

INSTALLATION INSTRUCTIONS

Parts supplied

1. IR transmitter (1)
2. IR Transmitter harness (1)
3. IR headphones (2)
Fig. 1
TRANSMITTER
POSITION IN MIDDLE OF
Notes:
• For best results, IR transmitter must be installed as shown with the LED's pointing toward the rear of the
vehicle (Fig. 1)
• Audio input can be connected to either a low-level fixed audio output or a variable level audio output (such as a
speaker or headphone output). If it is connected to a low-level output, only the volume control on the headphones
needs to be adjusted to control volume level. If connected to a variable level output, volume adjustment needs to be
done at both the source and at the headphones.
Fig. 2
1. GROUND
2. WHITE
3. RED
4. BLACK
5. RED
1. GROUND
2. WHITE
3. RED
Wire harness with RCA connectors (Fig. 2).
1. Using dual RCA (M/M) cable (not supplied, length determined by installation) connect one end to red and white
RCA jacks. Connect the other end to low level signal source.
2. Connect pin 4 (black wire, negative) to ground of vehicle.
3. Connect pin 5 (red wire, +12 volt) to ignition source (source that supplies +12 volts when the ignition is
switched on).
Two Channel Automotive Infrared
Stereo Headphone System

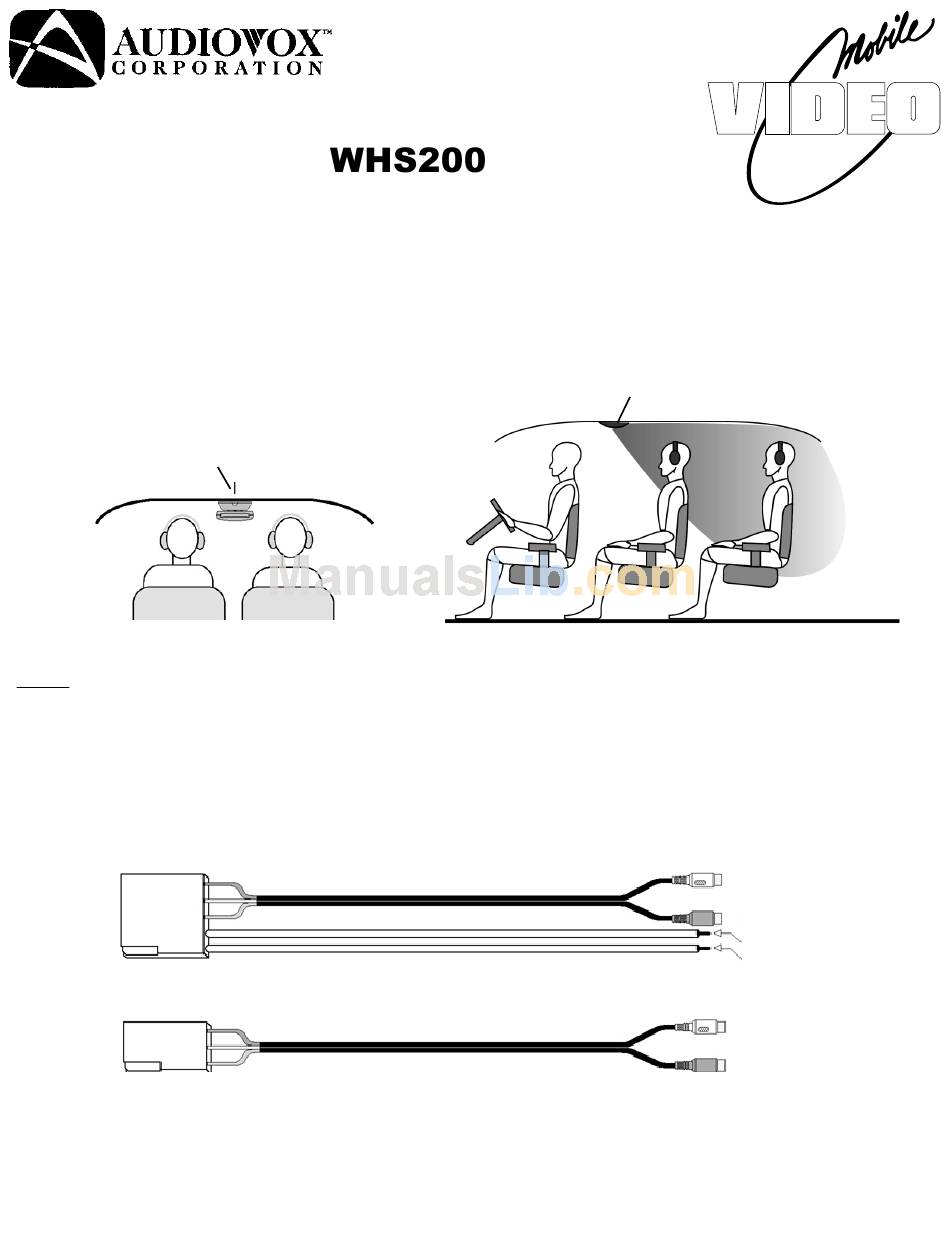

TRANSMITTER POSITIONING DIAGRAM

SEATING AREA
FRONT
POSITION JUST ABOVE THIGH AREA OF SECOND PASSENGER

WIRING DIAGRAM

CHANNEL A
CHANNEL B
TRANSMITTER
ROW SEATING
1. LEFT RCA CHANNEL IN
2. RIGHT RCA CHANNEL IN
3. DC 12V GND – (NEGATIVE)
4. DC 12V IN + (POSITIVE)
1. LEFT RCA CHANNEL IN
2. RIGHT RCA CHANNEL IN
REAR
