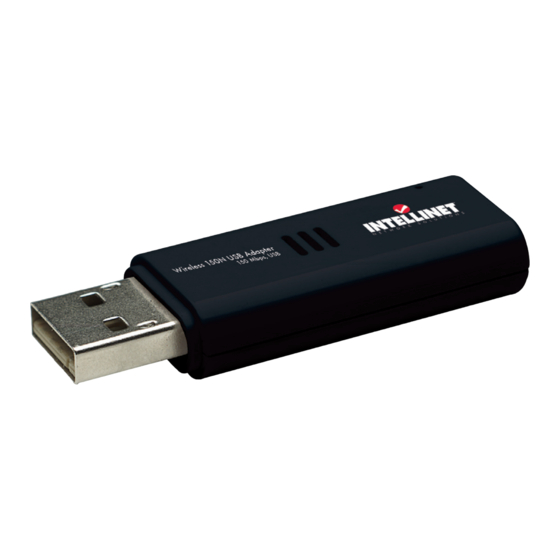

Wireless 150n usb adapter
Hide thumbs
Also See for 524438:
- User manual (32 pages) ,
- Features & specifications (3 pages) ,
- Quick install manual (32 pages)
Related Manuals for Intellinet 524438
Summary of Contents for Intellinet 524438
- Page 1 Wireless 150N AdApter qUick iNstAll gUide Model 524438 INT-524438-QIG-0908-03 524438_02_QIG.indd 1 9/29/08 2:56:42 PM...
- Page 2 524438_02_QIG.indd 2 9/29/08 2:56:42 PM...
- Page 3 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Wireless 150N USB Adapter, Model 524438. This quick install guide presents the basic steps required to set up and operate this device. For specifications and more detailed instructions, refer to the user manual 1) on the CD enclosed with this product; 2) on the Web site below;...
-
Page 4: Installation
1. Insert the included setup CD in the CD-ROM drive and start the INTELLINET WLAN.exe program. When the License Agreement screen displays, read the agreement and click “Next” to accept the terms and continue with the installation. - Page 5 3. On the second Setup Type screen (below), choose a configuration tool. “INTELLINET Configuration Tool” is recommended, as it provides access to all adapter features. If you prefer to use the tool provided by Windows XP/Vista, select “Microsoft Zero Configuration Tool.” Choose either (the setting can be changed after the install), then click “Next.”...
- Page 6 4. When the Ready to Install the Program screen displays, click “Install.” NOTE: If the Found New Hardware screen displays again, wait a few moments and the Install screen will appear. 5. When the “InstallShield Wizard Complete” message displays, select “Yes, I want to restart my computer now”...
- Page 7 6. With the computer now turned on, insert the Wireless 150N USB Adapter into an open USB 2.0 port. NOTE: You can also insert the adapter into the provided stand and connect the stand to the USB port of the computer.
- Page 8 8. When prompted with “What do you want the wizard to do?” select “Install the software automatically (Recommended)” and click “Next.” INTELLINET Wireless 150N USB Adapter 9. A status screen will display, indicating that the installation is in progress. No action is needed at this point.
- Page 9 USB Adapter to connect to a wireless access point (AP). The wireless configuration utility will start automatically, and you’ll also find a red-and- white INTELLINET icon at the lower right in your Windows systems tray. 1. Right-click the INTELLINET icon and select “Launch Config Utility.”...
- Page 10 3. If the wireless network uses encryption, you need to input the correct encryption key. The configuration utility automatically suggests the correct authentication type (see the drop-down list), and you should not change the suggested value. NOTE: For WPA/WPA2 networks, you need to select the correct encryption type, as well (AES or TKIP).
- Page 11 524438_02_QIG.indd 11 9/29/08 2:56:48 PM...
- Page 12 ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners. 524438_02_QIG.indd 12 9/29/08 2:56:49 PM...
