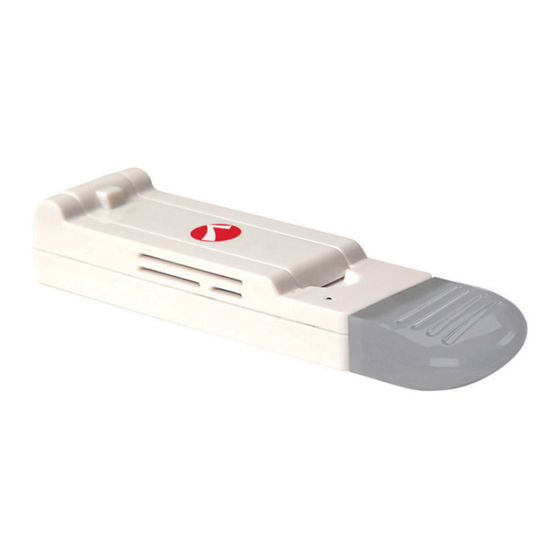

Intellinet 525275 User Manual

Wireless 450n dual-band adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

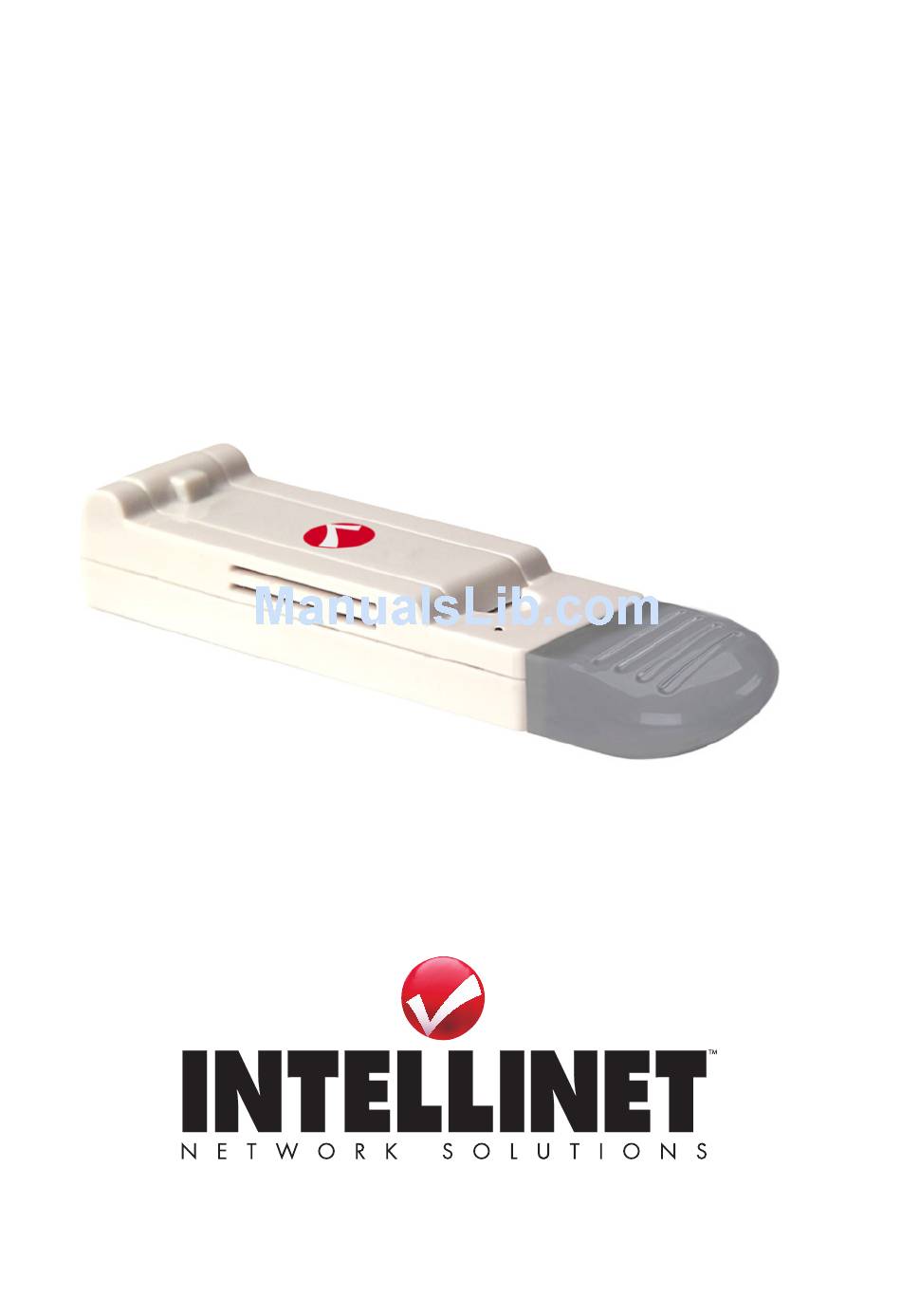

WIRELESS 450N
DUAL-BAND
ADAPTER

USER MANUAL

MODEL 525275
INT-525275-UM-0412-01

Advertisement

Table of Contents
loading

Related Manuals for Intellinet 525275

Summary of Contents for Intellinet 525275

  • Page 1: User Manual

    WIRELESS 450N DUAL-BAND ADAPTER USER MANUAL MODEL 525275 INT-525275-UM-0412-01...

  • Page 2: Package Contents

    The Wireless 450N Dual-Band USB Adapter connects to your PC via any available USB port, and the Intellinet Quick Install Wizard gets you up and running in minutes so you can enjoy the benefits of these additional features: •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS section page Installation ......................5 Configuration ......................7 Intellinet WLAN Utility Main Screen ..............8 Connecting to an Available Wireless Network ..........10 Profile List .....................11 Adding a Connection to a Profile ............11 Changing an Existing Profile ..............14 Importing and Exporting a Profile ............14...

  • Page 4: Safety Guidelines

    SAFETY GUIDELINES For the protection of equipment users and connected devices, follow these safety guidelines: 1. This adapter is designed for indoor use only; do not place this adapter outdoors. 2. Do not place or use this adapter in excessively hot or humid environments. 3.

  • Page 5: Installation

    “I accept the terms of the license agreement” and click “Next” to continue. 5. On the Setup Type screen, select “Install driver and INTELLINET WLAN Utility.” Select “Install driver only” if you prefer to use the Windows integrated WLAN function.
  • Page 6 6. In Windows XP, a “Microsoft Zero Configuration Tool” option displays. It’s recommended that the alternative “INTELLINET Configuration Tool” option be selected, as it features more functions. Click “Next.” 7. Once the software installation is complete, select “Yes, I want to restart my computer.”...

  • Page 7: Configuration

    CONFIGURATION The configuration utility — which displays automatically once the adapter is connected — is a useful utility that helps you configure the adapter and monitor link status and statistics during the communication process. This adapter will auto- connect to the wireless device that has the best signal strength and no wireless security setting.

  • Page 8: Intellinet Wlan Utility Main Screen

    Switch to Client + AP Mode In this mode, the Intellinet Wireless 450N Dual-Band USB Adapter acts as both a wireless network adapter for your computer and an access point for other wireless devices to connect to the network. In most cases, this function is not needed and should not be activated.

  • Page 9: Available Networks

    Wi-Fi Direct section (Page 20) for details on how to use it. Available Networks Click this button to have the Intellinet wireless adapter scan for and display a list of all wireless networks in range. Double-click an entry on that list to establish a connection to that network.

  • Page 10: Connecting To An Available Wireless Network

    Connecting to a Wireless Network Click on the Available Networks button for a list of available wireless networks. Locate your wireless network in the list, and double-click it. In case the wireless network is protected by a security key, a screen will show up asking you to confirm the wireless settings.

  • Page 11: Profile List

    If the information you provided turns out to be correct, you’ll see a check mark in front of the name of the network you’ve just connected to. The check mark indicates a proper connection has been established. If you entered a wrong password, the utility will not display an error message: It will instead simply not show the check mark.
  • Page 12 The network type is set to the correct value by default. (Infrastructure is by far the most common value.) Since the Intellinet WLAN utility detects the correct settings by default, you should not make any changes to the network type at this point.
  • Page 13 On the next screen you can define the maximum translation output power (Tx Power) of the wireless adapter. While you would normally leave the setting as “Auto” or “100%” in situations where you do not want to have your signal travel so far (e.g., because you live in an apartment building), you can choose a lower value.

  • Page 14: Changing An Existing Profile

    At this point, you’re done creating and connecting the profile. To activate it, click on the icon (circled in red below). Changing an Existing Profile Click on the Profile List button to open the profile list. Select the profile you want to modify and click on the edit icon (circled).

  • Page 15: Creating A Profile With Wps

    Creating a Profile with WPS Besides adding a profile manually, you can connect to a wireless network and create a profile based on WPS technology. Wi-Fi Protected Setup, also known as Wi-Fi Simple Config, is a computing standard that attempts to allow easy establishment of a secure wireless home network.
  • Page 16 If PBC involves physically pressing buttons, then why does the software have an option for a push-button setup? The answer is simple: The same Intellinet WLAN utility is included with the PCI WLAN Card and the tiny Wireless 150N Nano Adapter.
  • Page 17 The utility will then scan for a wireless router currently accepting PBC requests. If the scan is successful, the main Profile List screen displays and the network name now has a preceding check mark. Should you instead see the screen below, something went wrong. Either the WPS button wasn’t pressed on the wireless router, or you didn’t press the Start PBC button within two minutes after the button on the wireless router was pressed.

  • Page 18: Advanced

    Advanced The Advanced screen lets you configure the wireless operational mode of your adapter. Normally, there is no need to open this page and make any changes. If your wireless adapter is capable of 2.4 and 5 GHz connections, as dual-band adapters are, you can select the Wireless Mode setting here.

  • Page 19: About

    The second Advanced screen is designed for network administrators and allows for the installation of 802.1x WPA Enterprise certificates. Both user and issuer certificates can be installed, though in most cases this won’t be required since the certificate will likely have already been installed through the included Windows components.

  • Page 20: Wi-Fi Direct - Overview

    Wi-Fi Direct – Overview Wi-Fi Direct is a standard that allows Wi-Fi devices to connect to each other without a wireless access point. It’s become increasingly common for smartphones and portable media players to include Wi-Fi as a standard feature, and it’s even become common in feature phones.
  • Page 21 Once you’ve successfully activated Wi-Fi Direct service, the main screen will display. Depending on whether or not Wi-Fi Direct–enabled devices are found, the screen will look different: Example 1: Wi-Fi–enabled devices are found in the network. GO (Group Owner) indicates an access point or similar device. This indicates that the device is the head of one or more client devices (multiple clients belong to this GO).
  • Page 22 Example 2: No Wi-Fi enabled devices are found in the network. Right-click the laptop icon in the lower left corner to open the menu below. Scan: Perform an active scan for available Wi-Fi Direct enabled devices. Enable Quick Connection: Enables the Quick Connection mode. Enable autonomous GO: Click to make your computer a group owner (GO), symbolized by .
  • Page 23 Back at the main screen, you should see , indicating that this computer is now a group owner (GO). Media Sharing: You can turn your computer into a media server for connected Wi-Fi Direct clients. Enter a server name — e.g., mymediaserver — and specify the folder on your hard drive you want to share.

  • Page 24: Wi-Fi Direct - Creating And Accepting Connections

    After you’ve enabled the media sharing function, other computers can see the shared folder in the network environment. The example shows Ralink_Media_ Server, but it will be the name that you entered as the server name in the previous step. Double-click the server icon to open Windows Media Player, allowing users to play back the media files you shared.

  • Page 25: Establishing A Wi-Fi Direct Connection With Another Client

    Establishing a Wi-Fi Direct Connection with Another Client To establish connection with a P2P (peer to peer) device, double-click on its icon.     Double- click CONFIGURATION...

  • Page 26: Ap Mode

    You’ll be prompted to select its WPS connection type: Push-Button Configuration: Select to use this method to establish a connection. Display PIN: Select to use this method to establish a connection. With this method, you’ll see an 8-digit number displayed here. Enter this number on the device you want to connect to.
  • Page 27 Once you activate the AP mode, you’ll be asked to specify which network adapter (other than the Intellinet wireless adapter) should be used for the AP mode. If the goal is to share an existing Internet connection, then this adapter must provide an Internet connection your computer.
  • Page 28   Access   C ontrol   List   Advanced   settings   AP   S etup   Connected   devices   Wireless   s ignal   is   a ctive   Wireless   connection   i s   not   e ncrypted   AP  ...
  • Page 29 example, if there is another wireless network running on channel 8, ideally you want to use channel 2 or 1, as shown below. If you were to use a channel closer to the existing wireless network, it would still work, but the performance would be slightly diminished.

  • Page 30: Advanced

    The next step is to enter the actual password, or passphrase, for the wireless network. As for the Group Rekey Interval setting, the group key (or group transient key) is a key shared among all wireless clients connected to the same AP, and is used to secure multicast/broadcast traffic.

  • Page 31: Access Control List

    is disabled, all wireless clients can freely communicate with each other. Choosing which option is the right one depends on your network application. • Beacon Interval (ms) — Access points broadcast traffic indication messages, or beacons, in order to synchronize wireless networks. The beacon interval specifies the duration in milliseconds between those beacon packets.
  • Page 32 output power, enabling the “no forwarding between wireless clients” option and hiding the SSID — you can make your network much more secure. Click the Access Control List icon to display the feature’s configuration screen. The MAC address is a unique hardware identification number assigned to any network adapter during production.

  • Page 33: Connected Devices

    • MAC Address — Enter a 12-character address without no spaces, dashes or colons; e.g., 001122334455. (Media access control, or MAC, addresses used elsewhere can appear in 00:00:00:00:00 or 00-00-00-00-00 formats.) Based on the MAC address of the wireless client, you can now decide whether to allow or deny access.

  • Page 34: Client + Ap Mode

    Client + AP Mode In this mode the Intellinet Wireless 450N Dual-Band USB Adapter acts as both the wireless network adapter for your computer and as an access point so other wireless devices can connect to the network.
  • Page 35 The image above shows that a) The wireless adapter is connected to the wireless network “IT_WIRELESS”; and b) The wireless adapter broadcasts an access point signal as “SoftAP-66,” which uses WPA2 encryption. Any wireless client that connects to “SoftAP-66” will get Internet service via the IT_WIRELESS network.

  • Page 36: Specifications

    SPECIFICATIONS NOTE: Specifications are subject to change without notice. Standards • IEEE 802.11a (54 Mbps Wireless LAN) • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11n (450 Mbps Wireless LAN) • IEEE 802.11e (QoS Enhancement WMM) General •...
  • Page 37 - 11n 20 MHz: -69 dBm +/- 2 dBm - 11a: -70 dBm +/- 2 dBm • Antennas: 3T3R mode, 2 printed antennas, 1 external antenna • Certification: FCC Class B, CE LEDs • Link/Activity Environmental • Dimensions: 18 (H) x 26.6 (W) x 87.1 (L) mm (0.7 x 1.0 x 3.4 in.) •...
  • Page 38 WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.
  • Page 39 COMPLIANCE STATEMENTS FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 40 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com...
